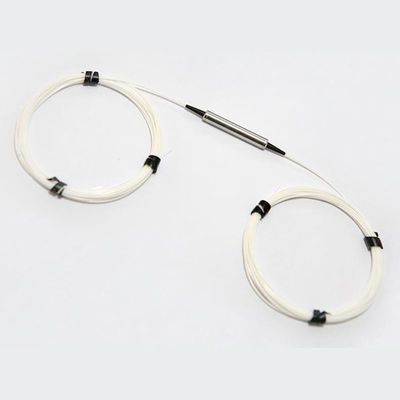

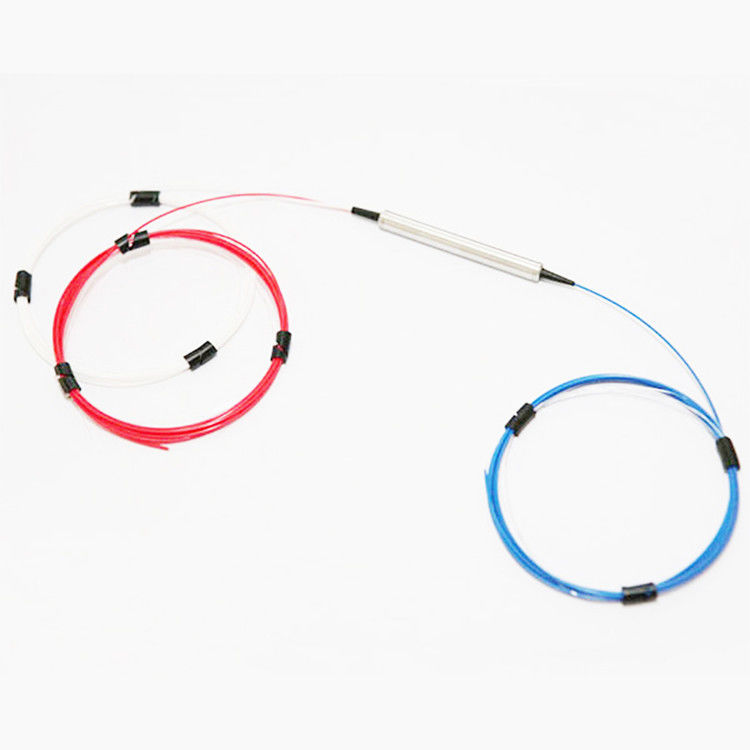

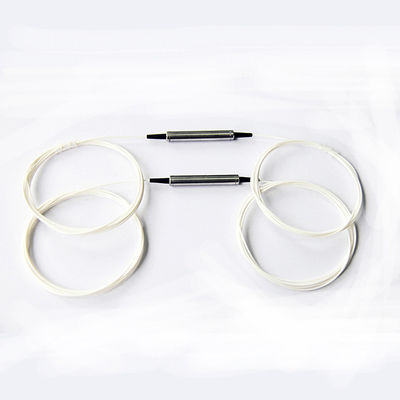

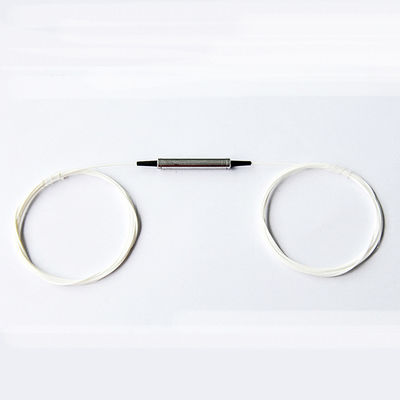

Product Details:
|
| Application: | FTTH | Function: | Optical Isolator |
|---|---|---|---|
| Product Name: | Fiber Optic Isolator | Connector: | SC/FC/LC |
| Wavelength: | 980/850nm | Material: | Stainless Steel |
| Color: | Silver | Keywords: | Optical Isolator |
| High Light: | CATV Link fiber optical isolator,Single Mode fiber optical isolator,CATV FC single mode single fiber |
||
UT-King’s optical isolator is used in sophisticated lightwave systems where one cannot allow light reflection that might perturb the laser oscillator. Of course, to maintain system performance one wishes to introduce an optical isolator, but the cost sometimes prevents this. The principle of the isolator is illustrated in Fig. 16. The Faraday rotator rotates the polarization of incident light by 45°. Then the reflected light can be cut off by the polarizer at the input end while the transmitted light passes through the analyzer at the exit end. Lead glass is used for the short-wavelength region and YIG (Y2Fe5O12) for the long-wavelength region. A device with 1 dB of insertion loss and 30 dB of isolation is developed for wavelength multiplexing communications.
| Parameters | P Grade | A Grade |
| Wavelength (nm) | 1310 or 1550 or 1480 | |
| Max Isolation(dB) | ≥40 | ≥39 |
| Isolation(dB) | ≥30 | ≥29 |
| Insertion Loss (Typ.) (dB) | 0.4 | 0.5 |
| Insertion Loss (dB) | ≤0.6 | ≤0.7 |
| Return Loss (dB) | ≥55/50 | ≥55/50 |
| PDL (dB) | < 0.10 | < 0.15 |
| PMD (ps) | 0.25(0.05 available upon request) | |
| Bandwidth(nm) | ±15 | |
| Operating Temperature (°C) | 0 ～ + 70 | |
| Storage Temperature (°C) | -40 ～ +85 | |
| Fiber Type | Corning SMF-28 or 900um Tight Buffer | |
| Fiber Length (Min.) | 1 Meter Each End | |
| Dimensions (mm) | 3.0×25 | |
| Rated power (mW) | 300 | |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
