Product Details:
|
| Application: | FTTH FTTX Solution | Type: | Mini Type 1x2 |
|---|---|---|---|
| Fiber Type: | G657A1 | Connector Type: | LC/UPC |
| Wavelength: | 805nm | Model: | SM/MM |
| Insertion Loss: | 4.5dB | Splitter Ratio: | 1*2 |
| Return Loss（dB）: | ≥55 | Keywords: | PLC Splitter |
| High Light: | 1x2 Fiber Steel Tube PLC Splitter,FTTH Steel Tube PLC Splitter,OM3 1x2 Fiber Splitter |
||

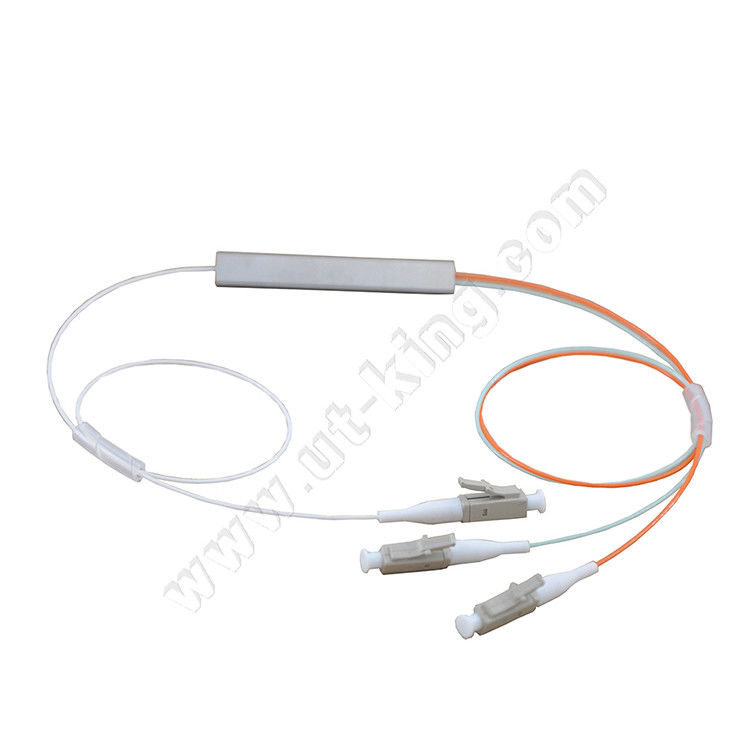

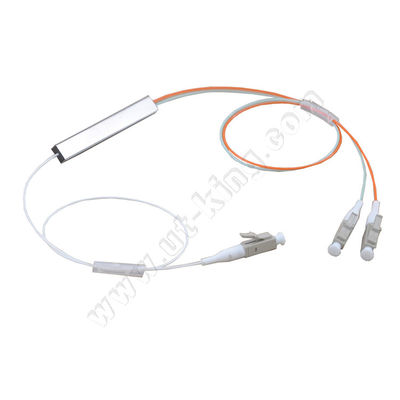

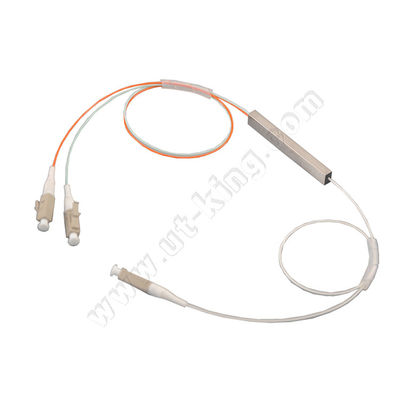

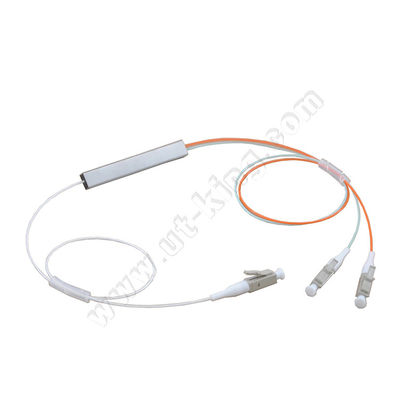

FTTH Splitter Divisor PLC OM3 1x2 Cable Fiber Optic Steel Tube PLC Splitter
Description
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network (EPON,BPON,GPON etc ) connected local and terminal equipment and realize the optical signal devide.
UT-King provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.We produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
| Item |
1x2 |
1x3 |
1x4 |
1x6 |
1x8 |
1x12 |
||||||||||
| Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
| Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
| Connector |
SC/FC/LC |
|||||||||||||||
| Ferrule section |
UPC/APC |
|||||||||||||||
| Insertion loss(dB) |
≤4.1 |
≤6.4 |
≤7.4 |
≤9.3 |
≤10.5 |
≤12.8 |
||||||||||
| Loss uniformity(dB) |
≤0.4 |
≤0.4 |
≤0.6 |
≤1.6 |
≤0.8 |
≤1.2 |
||||||||||
| Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
| Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.25 |
||||||||||
| Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
| Size(mm)(LxWxH) |
40×4×4 |
60×7×4 |
||||||||||||||
| Working Temperature(℃) |
-40～85 |
|||||||||||||||
| Storage Temperature(℃) |
-40～85 |
|||||||||||||||
| Item |
1x16 |
1x24 |
1x32 |
1x48 |
1x64 |
1x128 |
||||||||||
| Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
| Connector |
SC/FC/LC |
|||||||||||||||
| Ferrule section |
UPC/APC |
|||||||||||||||
| Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
| Insertion loss(dB) |
≤13.8 |
≤15.8 |
≤16.8 |
≤18.7 |
≤20.5 |
≤24.1 |
||||||||||
| Loss uniformity(dB) |
≤1.2 |
≤1.5 |
≤1.5 |
≤2.0 |
≤2.0 |
≤2.5 |
||||||||||
| Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
| Polarization Dependent Loss(dB) |
≤0.25 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
||||||||||
| Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
| Size(mm)(LxWxH) |
60×7×4 |
60×12×6 |
N/A |
|||||||||||||
| Working Temperature(℃) |
-40～85 |
|||||||||||||||
| Storage Temperature(℃) |
-40～85 |
|||||||||||||||
| Item |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
|||||||||
| Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
| Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
| Connector |
SC/FC/LC |
|||||||||||||||
| Ferrule section |
UPC/APC |
|||||||||||||||
| Insertion loss(dB) |
≤4.5 |
≤7.9 |
≤10.8 |
≤14.1 |
≤17.3 |
≤21.1 |
≤24.8 |
|||||||||
| Loss uniformity(dB) |
≤0.9 |
≤1.1 |
≤1.2 |
≤1.5 |
≤1.8 |
≤2.2 |
≤2.5 |
|||||||||
| Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
| Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
|||||||||
| Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|||||||||
| Size(mm)(LxWxH) |
50×4×4 |
60×7×4 |
N/A |
|||||||||||||
| Working Temperature(℃) |
-40～85 |
|||||||||||||||
| Storage Temperature(℃) |
-40～85 | |||||||||||||||
