Product Details:
|
| Application: | FTTH Networking | Type: | Mini Type 1x2 |
|---|---|---|---|
| Fiber Type: | G657A1 | Connector Type: | SC/APC |
| Wavelength: | 1260-1650nm,1310nm/1550nm | Model: | SM/MM |
| Insertion Loss: | ≤4.1dB | Splitter Ratio: | 1*2 |
| Return Loss（dB）: | ≥55 | Fiber Length: | 1m,1.5m Or Customized |
| High Light: | 1x2 Fiber PLC Splitter,FTTH Fiber PLC Splitter,SC/APC Connector 1x2 Fiber Splitter |
||

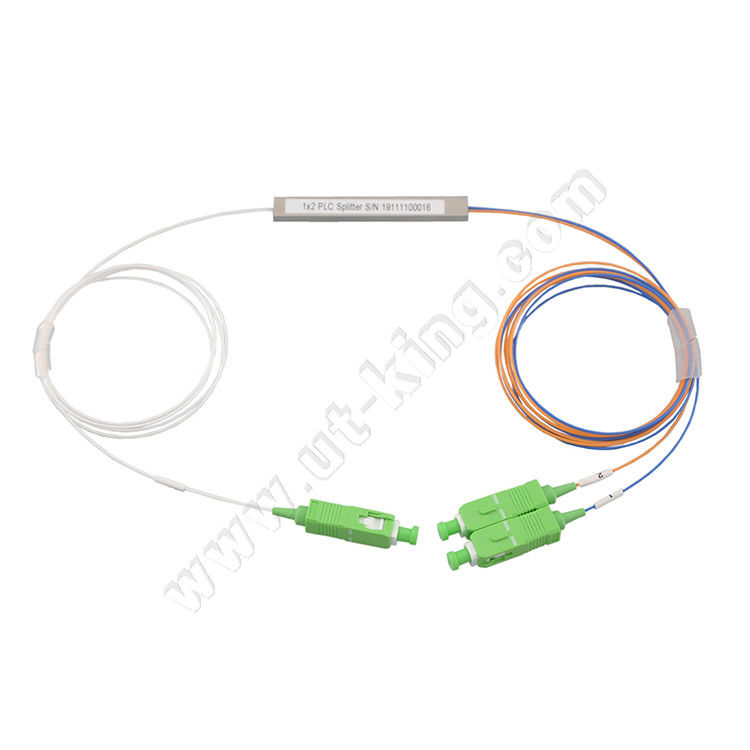

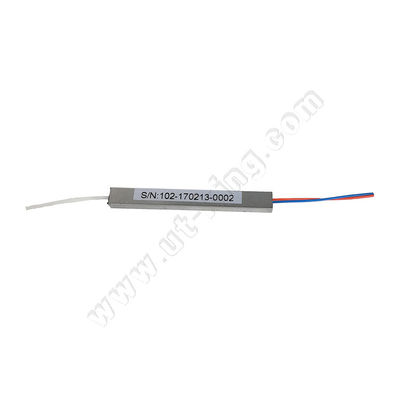

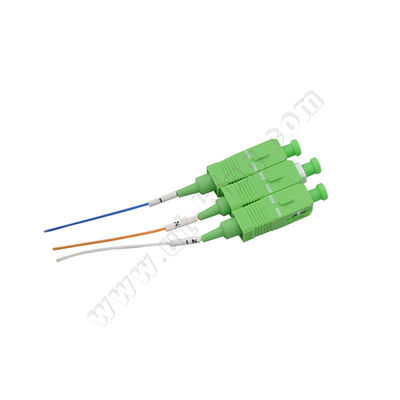

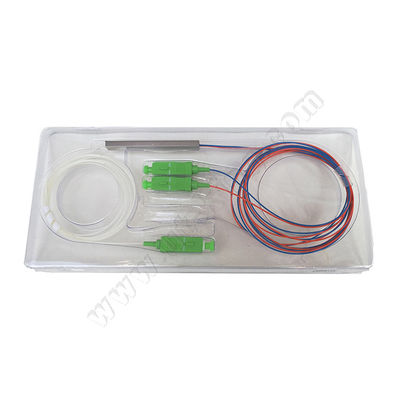

Mini Type Steel Tube Fiber Optic Ftth Fiber Splitter PLC 1x2 SC/Apc Connector
Description
UT-King's Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
The PLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber. Once everything is aligned and bonded, it is then packaged inside a miniature housing.
| Item | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | ||||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Insertion loss(dB) | ≤4.1 | ≤6.4 | ≤7.4 | ≤9.3 | ≤10.5 | ≤12.8 | ||||||||||
| Loss uniformity(dB) | ≤0.4 | ≤0.4 | ≤0.6 | ≤1.6 | ≤0.8 | ≤1.2 | ||||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.25 | ||||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
| Size(mm)(LxWxH) | 40×4×4 | 60×7×4 | ||||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
| Item | 1x16 | 1x24 | 1x32 | 1x48 | 1x64 | 1x128 | ||||||||||
| Operating Wavelength(nm) | 1260-1650 | |||||||||||||||
| Connector | SC/FC/LC | |||||||||||||||
| Ferrule section | UPC/APC | |||||||||||||||
| Fiber Type | G657A1 or as customers' order | |||||||||||||||
| Insertion loss(dB) | ≤13.8 | ≤15.8 | ≤16.8 | ≤18.7 | ≤20.5 | ≤24.1 | ||||||||||
| Loss uniformity(dB) | ≤1.2 | ≤1.5 | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.5 | ||||||||||
| Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
| Polarization Dependent Loss(dB) | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ||||||||||
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ||||||||||
| Size(mm)(LxWxH) | 60×7×4 | 60×12×6 | N/A | |||||||||||||
| Working Temperature(℃) | -40～85 | |||||||||||||||
| Storage Temperature(℃) | -40～85 | |||||||||||||||
