1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication

1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication
1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication

Large Image :  1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication

Product Details:
Place of Origin: Guangdong
Brand Name: UT-King
Certification: RoHS, CE, ISO9001
Model Number: 1x16 Rack Mount PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: 1set/box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per week

1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication

Description
Product Name: 1X16 Rack Mount PLC Splitter Type: PLC Splitter, Fiber Optic Patch Panel
Application: Telecommunication Adaptar: FC, SC, ST, LC
Erformance Temperature: -45-+80℃ Channel: 16
Hight: 1U Size: 19 Inch
Color: Grey Keyword: Rack Mount PLC Splitter
High Light:

Rack Mount Fiber Optic PLC Splitter

,

1U Fiber Optic PLC Splitter

,

1x16 Rack Mount PLC Splitter



2022 Factory Price Fiber Patch Panel Rack Mount 1:16 PLC Splitter





UT-King's fiber splitter play an increasingly significant role in many of today’s optical network topologies. They provide capabilities that help users maximize the functionality of optical network circuits from FTTx systems to traditional optical networks. And usually they are placed in the central office or in one of the distribution points (outdoor or indoor).



Features
* Low Insertion loss
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: From 1260nm to 1650nm
* Wide Operating Temperature: From -40°C to 85°C
* High Reliability and Stability

Application
* Fiber to The Home (FTTH)
* Passive optical networks (PON)
* Local Area Networks (LAN)
* Cable Television (CATV)
* Test Equipment

Specification :

Item
1x16
Operating Wavelength(nm)
1260-1650
Connector
SC/FC/LC
Ferrule section
UPC/APC
Fiber Type
G657A1 or as customers' order
Insertion loss(dB)
≤13.8
Loss uniformity(dB)
≤1.2
Return Loss(dB)
≥55
Polarization Dependent Loss(dB)
≤0.25
Directivity(dB)
≥55
Temperature correlation loss
-40~85ºC(dB)
≤0.5
Size(mm)(LxWxH)
60×7×4
Working Temperature(ºC)
-40~85
Storage Temperature(ºC)
-40~85

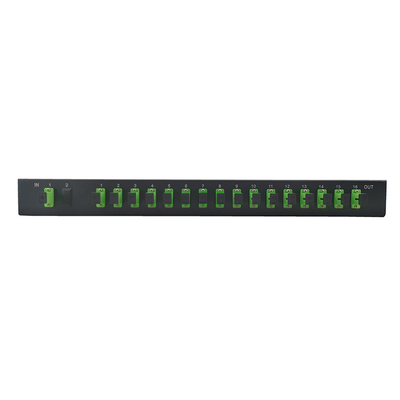

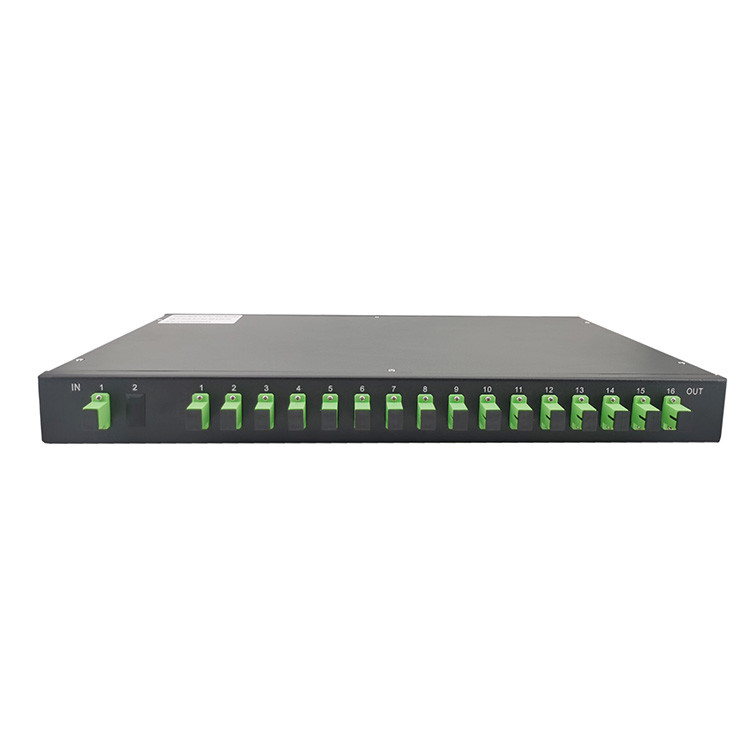

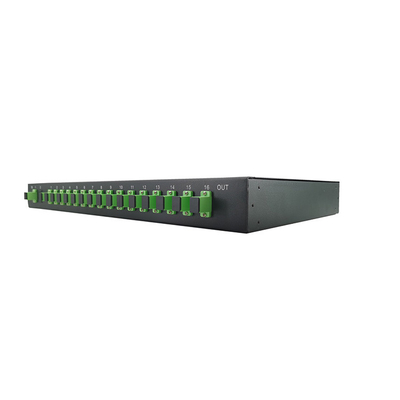

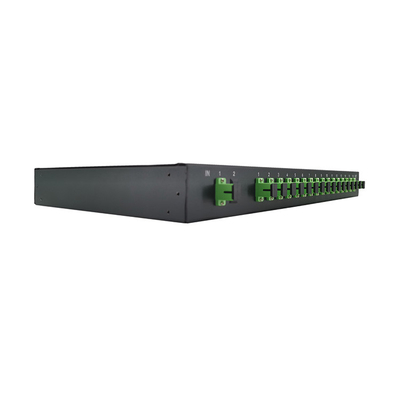

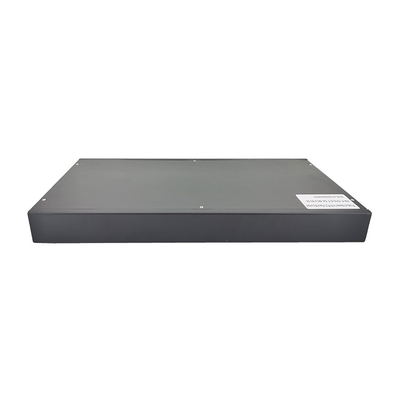

Details for Image:





1x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 01x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 11x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 21x16 1U Rack Mount Fiber Optic PLC Splitter For Telecommunication 3





















About Us:



Shenzhen UT-King Technology Co., Ltd which was founded in the year 2010 is a professional Hi-tech company in fiber optic communication industry. We specialize in researching, developing, manufacturing and selling a wide range of highly competitive fiber optic products and accessories for telecommunication, broadcast, CATV and network worldwide.

Now, UT-King has more than 200 employees. Our main products are PLC splitters, Fast connectors, Patch cords, MPO/MTP products, adaptors, WDM system, Fiber cables, and Fiber managements. With the development of the business, UT-King has expanded its business to fiber active products in the year 2015. We have our own R&D team for EPON/GPON system. With their excellent technical strength, now we have full range of EPON/GPON/XPON OLT and ONU. What’s more, we also have big advantages on SFP modules, such as 10G SFP+, 40G QSFP28 and 100G CFP and 100G QSFP28.

All of our optical products are RoHS compliant and we also obtained ISO9001, ISO14001 certification. Rich experiences in massive Cproduction of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years Cfrom customers around the earth for its excellent quality, fast delivery, and timely after-services. We wish to create better future of optical communication industry jointly with both new and existing customers.
