Product Details:
|
| Product Name: | GPON ONU | Function: | 1ge Port |
|---|---|---|---|
| Application: | FTTH FTTX | Type: | ONU/ONT |
| Color: | White | Warranty: | 1 Year |
| Power Supply: | 12V 0.5A | PON Port: | 1GE |
| MOQ: | 10pcs | Name: | 1ge Gpon Onu |
| Chipset: | ZTE/RTK | Connector Type: | SC/UPC SC/APC |
| OEM: | Yes | ||
| High Light: | rohs 1 Pon FTTH GPON ONU,SC UPC GPON ONU,SC UPC ont optical network termination |
||
UT-King FTTH 1ge Gpon Onu 1 Pon Port FTTX GPON ONT Optical Network Unit onu
GPON ONU(UT-GP4103) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Features
| Model No. | UT-GP4103 |
| Interface |

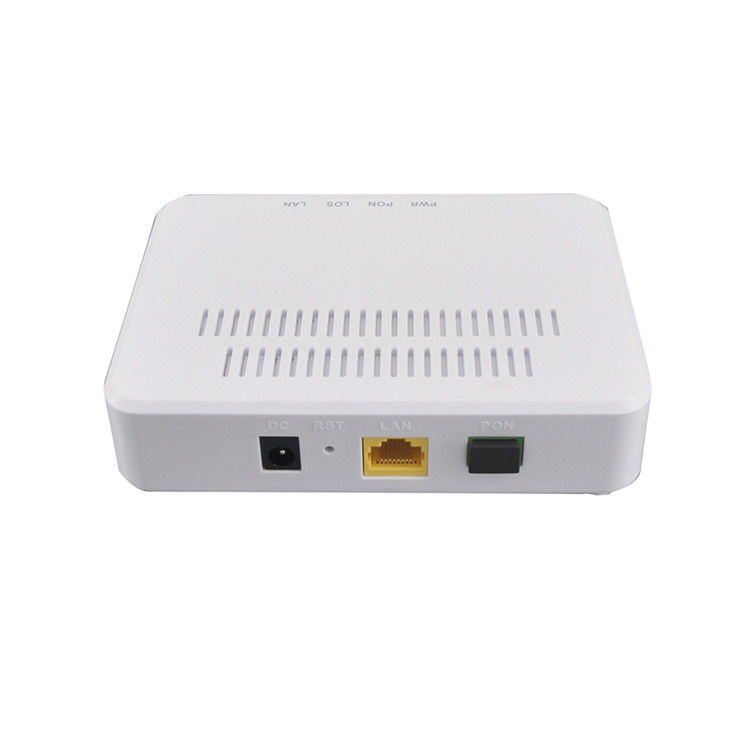

1 *SC/UPC Port or 1 *SC/APC Port; 1 *10/100/1000Mbps RJ45 Port |
| Chipset | Realtek, RTL9601D+RTL8290B |
| Data Rates & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/0.5A |
| Dimensions (Length * Width * Height) | 132mm×100mm×30mm |
| Weight (Full-Loaded) | ≤0.3kg |
| Working temperature | 0°C～40°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
