Product Details:
|
| Product Name: | GPON ONU Epon Onu | Function: | 1ge Port |
|---|---|---|---|
| Application: | FTTH FTTX | Type: | ONU/ONT |
| PON Interface: | GPON Optical Interface | Power Supply: | 12V 0.5A |
| Wavelength: | 1490/1310nm | Name: | 1ge Gpon Onu |
| Connector: | SC/UPC SC/APC | Size: | 74mm(L) 74mm(W) 20mm(H) |
| Downlink: | 1*10/100/1000Mbps Auto Adaptive | Function: | 1ge Gpon Port |
| Operating Temperature: | 0~70 °C | ||
| High Light: | rohs 0.5A GPON ONU,FTTH sc GPON ONU,UPC ftth gpon epon onu |
||

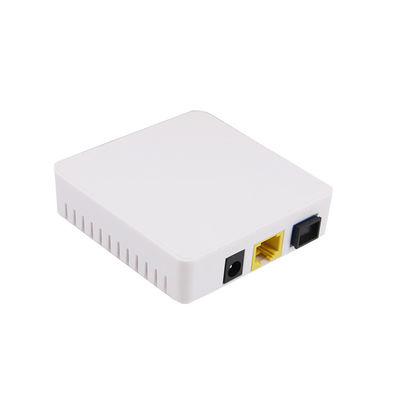

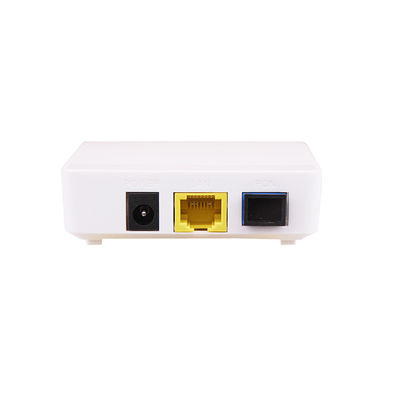

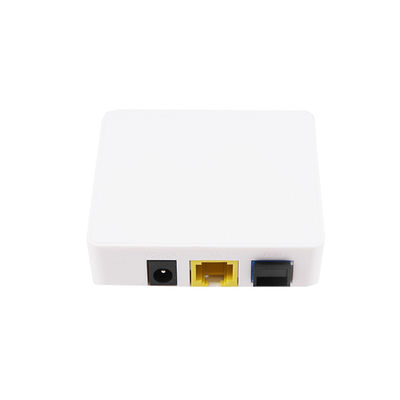

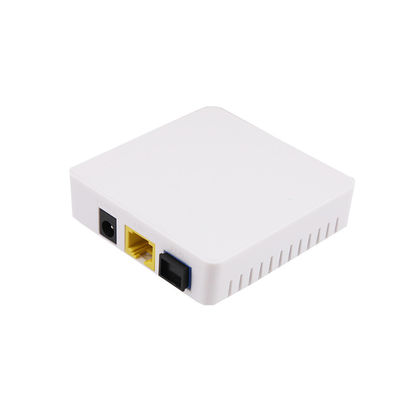

Ftth ONU EPON 1GE GPON PPPOE Bridge ONT Mini Gpon Olt 4g Lte Modem Ethernet Optical Network Terminal
1. Overview
2. Functional Feature
| Model No. | UT-GP4105 |
| Interface |
1 *SC/UPC Port or 1 *SC/APC Port; 1 *10/100/1000Mbps RJ45 Port |
| Chipset | ZTE RTL |
| Data Rates & Wavelength |
Upstream rate up to 1.244 Gbit/s, downstream rate up to 2.488 Gbit/s |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/0.5A |
| Dimensions (Length * Width * Height) | 132mm×100mm×30mm |
| Weight (Full-Loaded) | ≤0.3kg |
| Working temperature | 0°C～40°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
