Product Details:
|
| Product Name: | GPON ONU | Function: | 1ge+1fe+1tel+wifi |
|---|---|---|---|
| Type: | Gpon Onu | Power Supply: | 12V 1A |
| PON Port: | Wifi Onu | Name: | Fiber Onu |
| Connector Type: | SC/UPC SC/APC | OEM: | OEM/ODM |
| Application: | FTTB/FTTH/FTTO/FTTX | Wifi: | IEEE802.11bgn,2T2R,300Mbps |
| High Light: | FTTH onu network device,ftth rohs 1tel onu network device,ftth rohs 12v 1ge gpon ont |
||

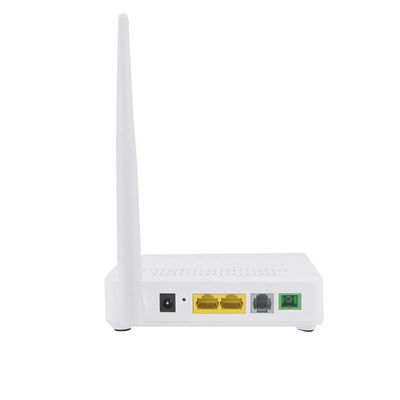

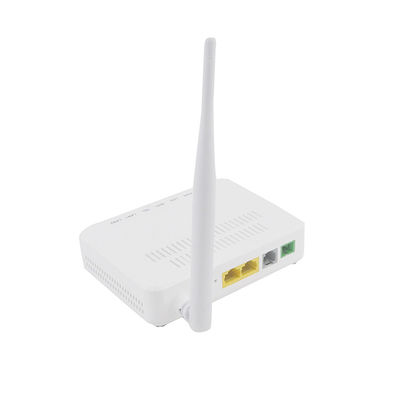

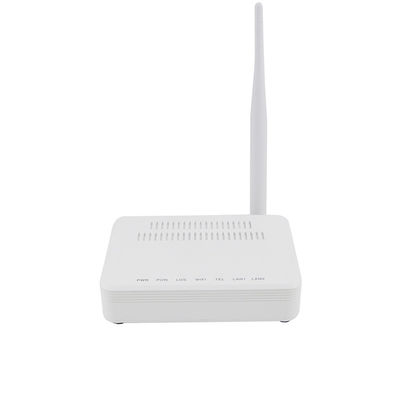

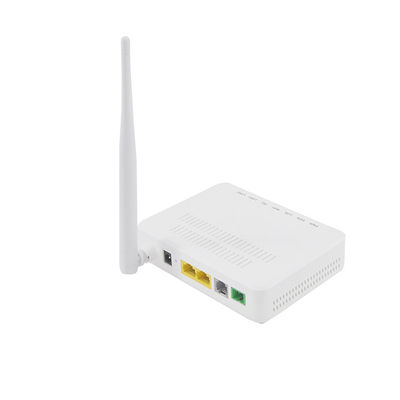

GPON ONU(UT-GP4221) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Features
| Model No. | UT-GP4221 |
| Interface |
1 *SC/UPC Port or 1 *SC/APC Port; 1 *10/100/1000Mbps RJ45 Port; 1 *10/100/1000Mbps RJ45 Port; 1 *WIFI(802.11b/g/n, 2T2R, 300Mbps,one external antenna and one internal antenna ) 1 *FXS RJ11 Port |
| Chipset | Realtek, RTL9602C+RTL8192 |
| Data Rates & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/1A |
| Dimensions (Length * Width * Height) | 150mm×120mm×35mm |
| Weight (Full-Loaded) | ≤0.4kg |
| Working temperature | 0°C～40°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
