Product Details:
|
Product Name: | EPON OLT | Power Supply: | AC: Input 100~240V 50/60Hz; DC: Input 36V~75V; |
---|---|---|---|
Pon Port: | 8 | Type: | 8 Pon Olt |
Wavelength: | RX 1310nm,TX 1490nm | Power Consumption: | 60W |
Application: | FTTH FTTB FTTX | Weight: | 6kg |
Max Splitting Ratio: | 1:64 | Oem/odm: | Yes,Welcome |
Warranty: | 1 Year | Operating Temperature: | 0 ~ 50 Degrees C |
High Light: | ftth 20km 10G GPON OLT,ftth 16 port gpon olt,20km input 36V 10g epon olt |

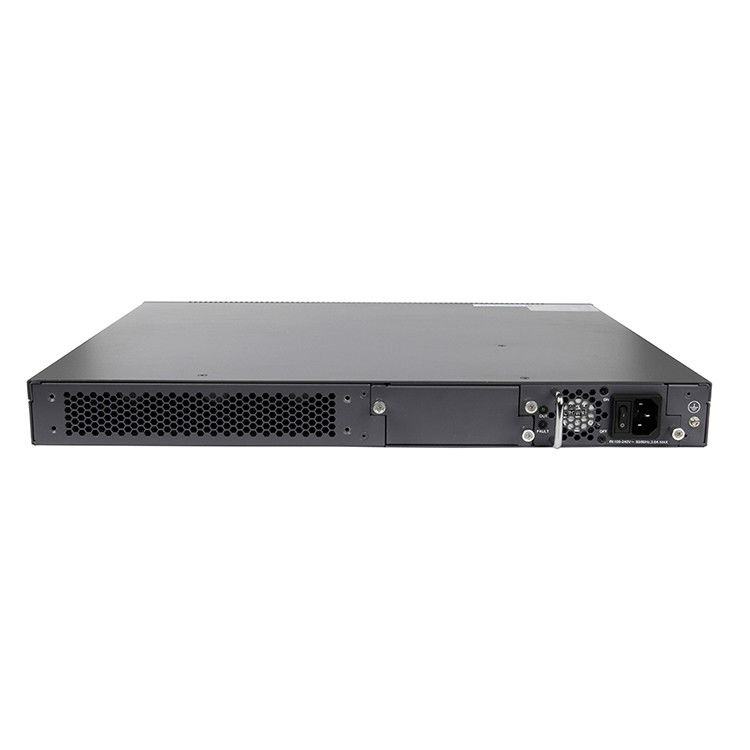

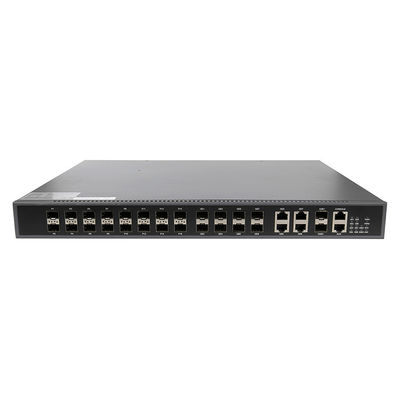

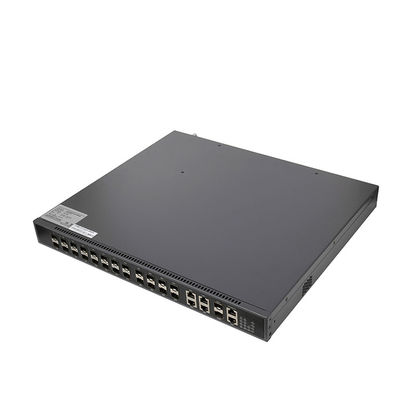

EPON OLT 16PON ,the most effective access technology, is increasingly used in telecom broadband access, cable broadband access, FTTx, intelligent electric grid and surveillance.It is a small rack type EPON OLT. It consists of a EPON OLT and the network management card. I wors with EPON ONU series and ODN to establish a passive optical network.
Each PON port of 16 ports EPON OLT can support 64(max) terminal ONUs. It supports 10~20km transmission distance at the base of high bandwidth, and supplies full line speed L2/L3 transition capacity.
It supports maximum 256 Logical Link Identifiers (LLID) and Dynamic Bandwidth Allocation (DBA). It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users. 16 Port EPON system greatly lowers the cost to establish network and assure high bandwidth. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.
Model No. | UT-EP7016 |
Interface |
16*PON port; 4 *1.25G SFP and 4*GE COMBO port, 2 *10G SFP+ port for uplink |
Chipset |
CS8022(Cortina); BCM56150(Broadcom) |
Data Rates & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream: 1.244Gbps, 1490nm |
Distance & Capacity | 0~ 20Km;1:64(max) |
External Power Supply |
AC: input 100~240V 50/60Hz; DC: input 36V~75V; |
Power Consumption | ≤85W |
Dimensions (Length * Width * Height) | 440mm×44mm×380mm |
Weight (Full-Loaded) | ≤7kg |
Working temperature | -10°C~55°C |
Storage temperature: | -40°C~70°C |
Relative humidity: | 10%~90%, non-condensing |
