Product Details:
|
| Application: | FTTH | Color: | White |
|---|---|---|---|
| Function: | 1GE+3FE+1POTS+1USB | Product Name: | Gpon ONU/ONT |
| Power Supply: | 12V 1A | Connector Type: | SC/UPC |
| Connector: | RJ45 | PON Port: | SC |
| Wavelength: | 1310/1490nm | Size: | 240*160*35mm |
| Weight: | About 0.5 Kg | ||
| High Light: | sc 5dbi GPON ONU,3FE GPON ONU,3FE fiber optic modem wireless router |
||

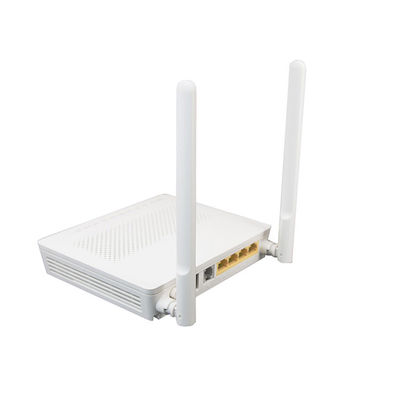

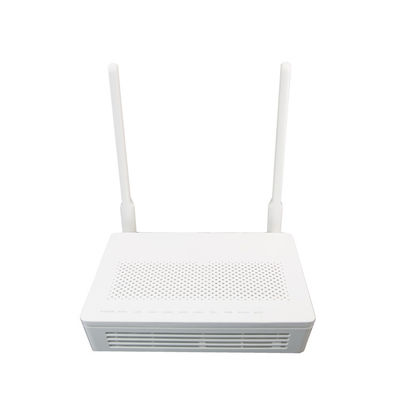

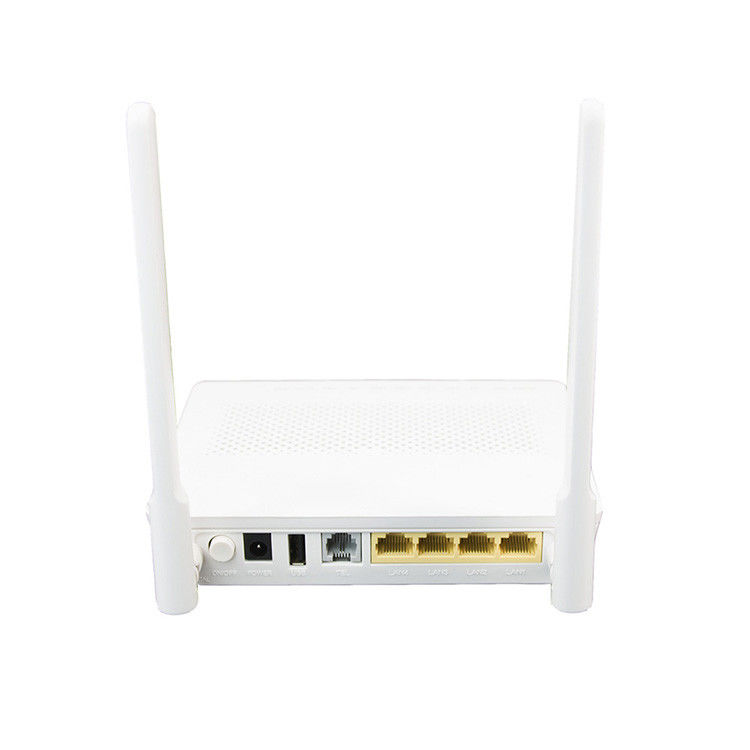

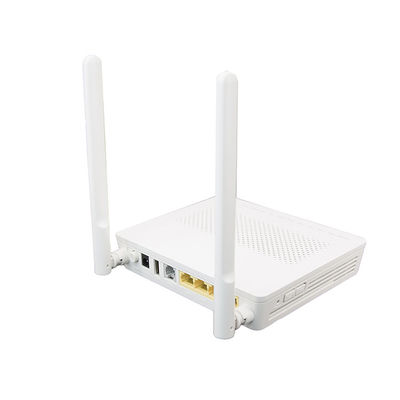

Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video
|
Brand |
Huawei |
|
Model |
HG8546M |
|
Power supply |
12V,1.5A |
|
Power consumption (full loaded) |
≤15W |
|
Outline dimensions (mm) (W*D*H) |
240*160*35mm |
|
Weight (in maximum configuration) |
≤0.5kg |
|
WIFI |
Antenna 2×2, 5dBi external antenna |
|
EIRP Max 25dBm |
|
|
VoIP |
REN Max 5REN |
|
Connector 1x RJ11 |
|
|
Ringing 65V RMS ringing voltage |
|
|
USB |
Max 1A for each port |
|
Environmental requirements |
Working temperature:0ºC~50ºC |
|
Storage temperature:-40ºC~70ºC |
|
|
Working humidity:5%~90% Storage temperature:5%~95% no condensing |
|
|
Ethernet |
Standard;IEEE802.3 IEEE802.3au IEEE802.3x |
|
Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45 Auto negotiation Auto MDI/MDIX |
Q: What is Huawei HG8546M-5dBi GPON port connector type, SC/APC or SC/UPC?
A: It come with SC/UPC type
Q: Does Huawei HG8546M-5dBi comes with Europe type adapter?
A: Yes, it comes with EU type adapter.
Q: Can I use Huawei HG8546M-5dBi with other brand OLT?
A: Not suggested, as the understanding between different vendor on TR069/OMCI may different.
Q: Does Huawei HG8546M-5dBi support WIFI?
A: Yes, it supports
Q: Does Huawei HG8546M-5dBi support routing function?
A: Yes.
Q: Does Huawei HG8546M-5dBi support battery backup?
A: No.
Q: How to Restore Factory Settings for Huawei HG8546M-5dBi?
A: Use either of the following methods to restore factory settings for Huawei HG8546M-5dBi:
1. Choose System Tools > Restore Default Configuration from the main menu on the web page and click Restore Default Configuration.
2. Hold down the RESET button for a long period of time (longer than 10s) to restart the Huawei HG8546M-5dBi with factory settings.
