16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface

16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface
16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface 16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface 16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface 16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface

Large Image :  16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE,ROHS,ISO9001
Model Number: GPFD
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface

Description
Application: FTTH GPON Port: 16-GPON Port
Product Name: GPFD Board Split Ratio: Up To 1:256
Size: 23 Mm X 237 Mm X 396 Mm Weight: About 1.5kg
Reach: 20km Overload Optical Power: B+ Module : -8.0 DBm C+ Module : -12.0 DBm
Extinction Ratio: 8.2dB Optical Fiber Type: Single Model
Operating Temperature: -25°C To +65°C
High Light:

adequado 16 Pon Placa GPON OLT

,

20km Adequado GPON OLT

,

20km 16 Pon gpon onu sfp module

Huawei 16 Pon Porto Gpon Placa Gpfd Com C + Sfp Adequado 16 Portas Gpon Olt Placa De Interface




Description

huawei GPFD is a 16 port GPON interface card of Huawei OLT, provide GPON service access from ONT. GPFD can maximum access 16*128 GPON subscribers. GPFD has different part number like H80D00GPFD01, H80D00GPFD02 etc, but basically you only need to identity H802GPFD, H803GPFD, H805GPFD version, and with B+, C+/C++ SFP module.

Huawei GPFD Service Board is a 16 port GPON interface card This board offers GPON service access from ONT which get maximum access 16*128 GPON subscribers. The OLT product is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and service boards.



Features

  • Huawei 16-GPON Port Interface Card with C+ SFP module
  • Apply to Huawei MA5683T, MA5680T, MA5608T OLT system
  • Available at 3 versions: H802GPFD, H803GPFD, H805GPFD
  • Support split ratio 1:128
  • Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
  • Interface Type: SC/PC
  • Max Transmit Distance: 20KM
  • Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
  • Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
  • C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
  •

Specification

Service ports
GPON Port 16-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption H802GPFD : Static: 45 W, Maximum: 73 W
H803GPFD : Static: 39 W, Maximum: 61 W
H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C

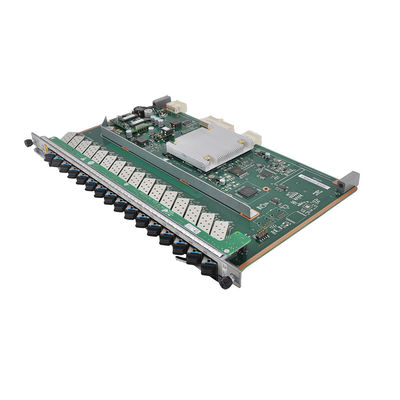

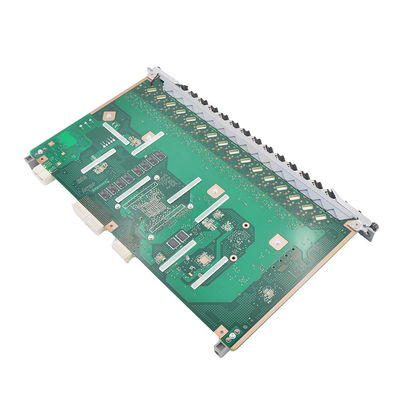

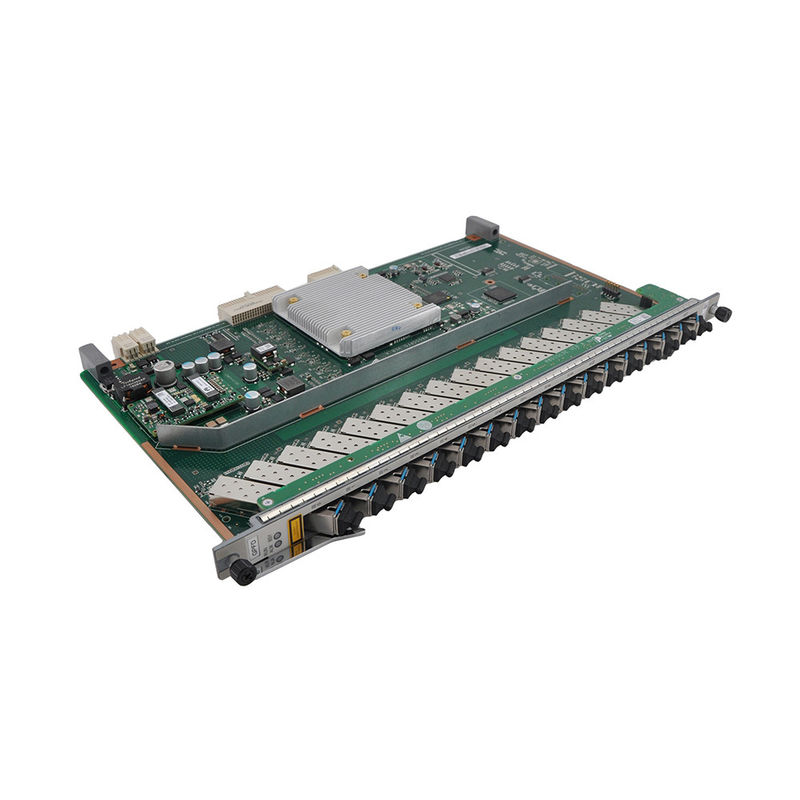

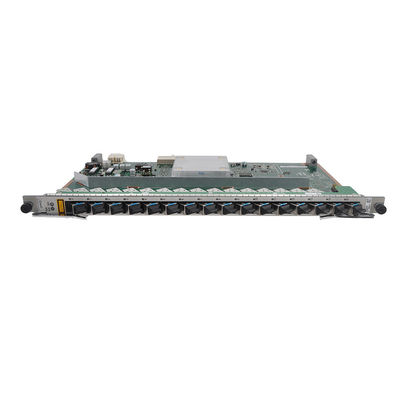

Detailed Images

16 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface 016 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface 116 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface 216 Pon GPON OLT Onu Sfp Module Adequado Gpfd Placa De Interface 3



FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
