Product Details:
|
| Application: | FTTH | GPON Port: | 16-GPON Port |
|---|---|---|---|
| Product Name: | GPHF Board | Split Ratio: | Up To 1:128 |
| Size: | 23 Mm X 237 Mm X 396 Mm | Weight: | About 1.5kg |
| Reach: | 20km | Overload Optical Power: | C+ Module : -7dBm |
| Extinction Ratio: | 8.2dB | Optical Fiber Type: | Single Model |
| Operating Temperature: | -25°C To +65°C | ||
| High Light: | ratio 128 GPON OLT,ftth 20km 7dBm GPON OLT,ftth 20km 7dBm ont sfp module |
||

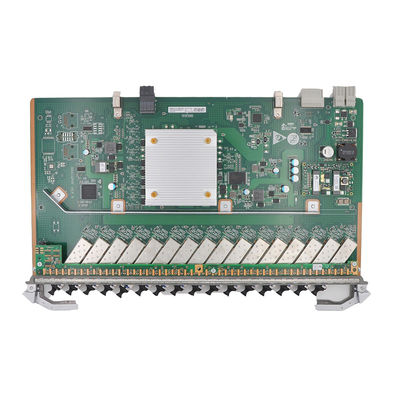

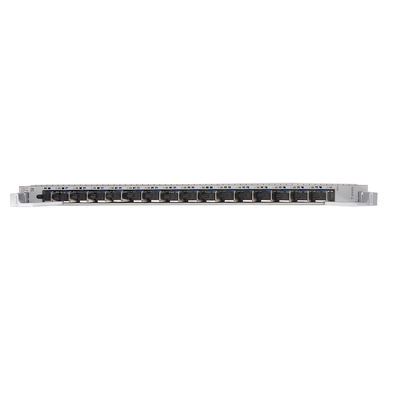

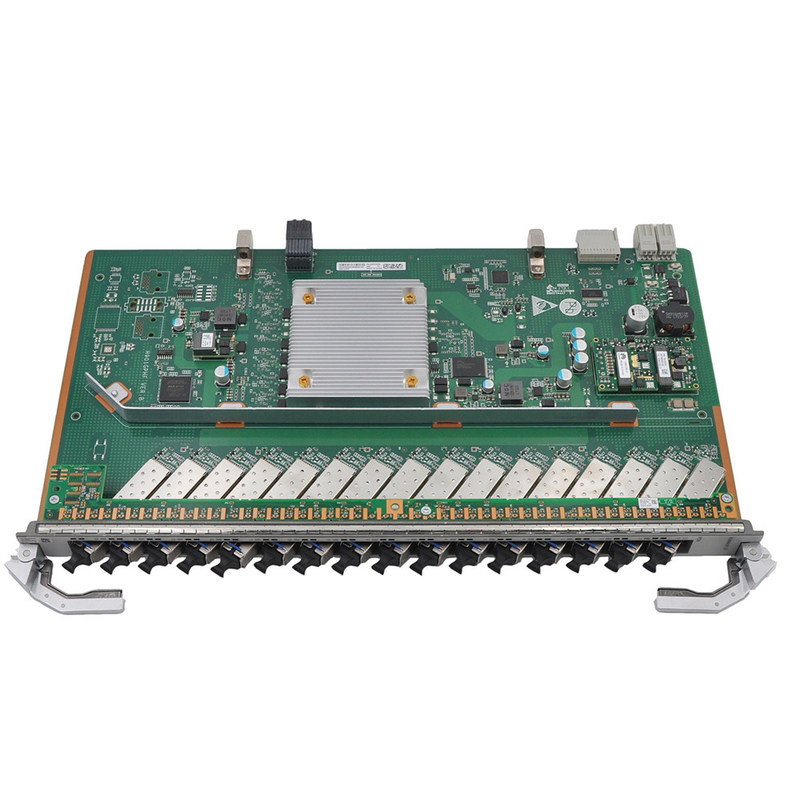

Huawei GPHF Service Board is a 16-port GPON interface board that works with ONU (Optical Network Unit) devices to implement GPON service access.
| Specification | |
| Service ports | |
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 25W; Maximum:50W |
| Maximum Frame Size | 2004 bytes |
| 9216 bytes (jumbo frame enabled) | |
| Operating temperature | -40°C to +65°C |
Q: When deploying GPON network, what are the differences between GPSF and GPHF?
A: GPSF only can supports FTTH, while GPHF supports FTTH, FTTO, FTTM and D-CCAP.
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
