Product Details:
|
| Application: | FTTH | Product Name: | Fusion Splicer |
|---|---|---|---|
| Typical Splicing Time: | 6s | Typical Heating Time: | 15s |
| Applicable Fibers: | SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655） | Splice Loss: | 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Focus Mode: | Auto Focus | Heat Shrinkable Tube: | 40mm 60mm |
| Screen: | 5.1inch TFT Color Display | Lighting: | External |
| High Light: | SM Auto fiber optic splice kit,60mm MM fiber optic splice kit,60mm MM fusion splicer machine |
||

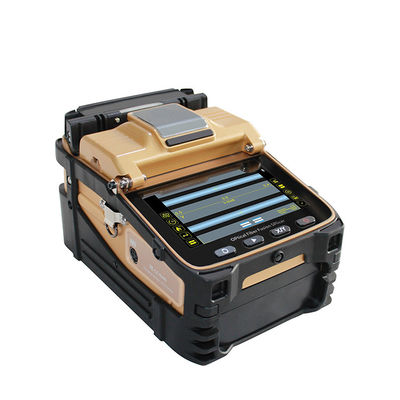

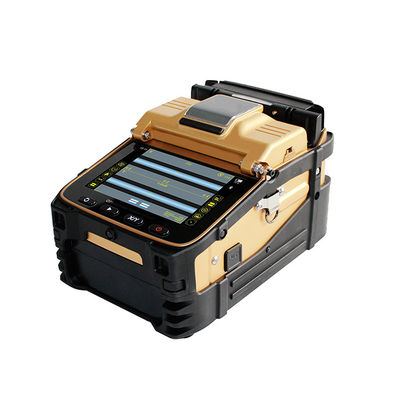

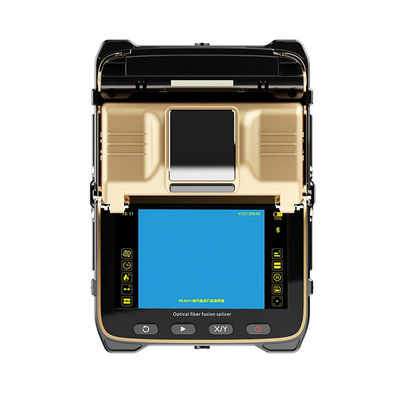

Fusion Splicer UT-FSA8C use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.
Fusion Splicing is a preferred way to join two fibers together by using heat. Whether the fiber was broken or not long enough, a fusion splicer will make your job easier. Splicing fiber optic cable is fairly simple procedure. Prepared fiber ends are placed in the splicer and automatically aligned and then fused together. This method ensures greater reliability with less light being scattered or reflected back by the splice. The splice itself if done correctly should be as strong as the original optical fiber.
| Applicable Fibers | SM(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655) |
| Splice Loss | 0.025dB(SM),0.01dB(MM)0.04dB(DS/NZDS) |
| Focus mode | Auto focus |
| Fiber alignment | Core/cladding alignment Manual alignment |
| Typical splicing time | 6s |
| Typical heating time | 15s |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter 80-150μm,Coating Diameter 100-1000μm |
| Fiber Cleave Length | Coating less than 250µm:8-16mmCoating less m250-1000μm:16mm |
| Heat shrinkable tube | 60mm,40mm |
| Tension Test | Standard 2N |
| Fiber holders | Multifunction holders,Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y view, 150 for X or Y view |
| Screen | 5.1inch TFT color display |
| Software upgrade | Mobile APP update, Turn on Bluetooth sync to the machine |
| Splicing Mode | Normal / high precision splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
| Operating Conditions |
Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation), Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s |
| lighting | External |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
