Product Details:
|
| Application: | FTTH | Product Name: | Fusion Splicer |
|---|---|---|---|
| Typical Splicing Time: | 8s | Typical Heating Time: | 30s |
| Applicable Fibers: | SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655） | Splice Loss: | 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Focus Mode: | Auto Focus | Heat Shrinkable Tube: | 40mm 60mm |
| Screen: | 4.4 Inch TFT Color Display | Ecord Capacity: | 8000 |
| High Light: | 30s ARC fiber optic fusion splicer,4.4 inch fiber optic fusion splicer,4.4 inch fiber splicing machine |
||

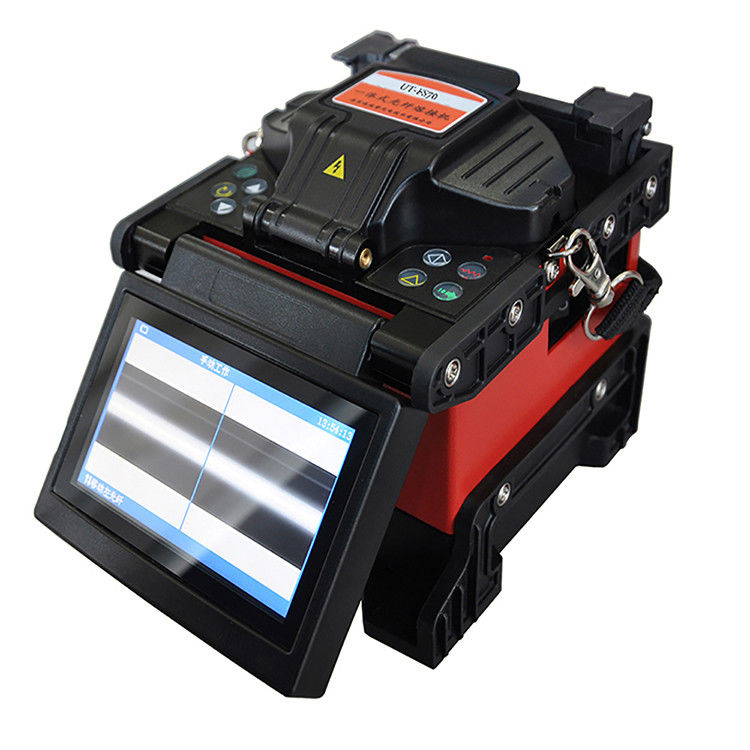

Fiber optic fusion splicer Machine FS70 FTTH is one of the most popular fusion splice in the world,UT-king is one of the largest and best FS70 fiber optic fusion splicer machine manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized FS70 fiber optic fusion splicer machine in stock with our factory. Also, free sample is also available if necessary.
| Applicable fibers | SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector. |
| Fiber cleaved length | 8-22mm |
| Average splice loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss | ≥60dB |
| Tension test | 2.0N(200gf)(Standard) |
| Protection sleeve length | 20mm, 40mm, 60mm |
| Splice Program | 5 groups of preset programs, 75 group of manual setting |
| Language | English, Chinese, Russian, Spanish, Portuguese. |
| Environment conditions | -25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude) |
| Storage environment | -40～ +80℃ (temperature) , 0～95％RH (humidity) |
| Power supply | AC adaptor: 85～260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
| Dimensions/Weight | 142(D)×122(W)×138(H)mm/1.95kg |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
