OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing

OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing
OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing

Large Image :  OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: OT360
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing

Description
Application: FTTH FTTX Product Name: OTDR
Wavalength: 1310/1490/1550nm 850/1300nm TOptical Interface: FC/UPC (PC, And APC Are Selectable)
Display: 7 Inch TFT-LCD With LED Backlight Linearity: ±0.05 DB/ DB
Loss Threshold: 0.05dB Sampling Resolution Ratio: 0.125 To 8m
Data Storage: Internal Memory: 4GB Dimension: 253x168x73.6mm
Keywords: OTDR Machine Weight: 1.5kg
High Light:

OTDR PON Fiber Optic Tool Kit

,

1550nm TFT Fiber Optic Tool Kit

,

1550nm otdr testing machine

Automatic Focus FTTH Handheld Small Fiber Fusion Splicer Six Motors ARC Fusion Splicing Machine Tool Kit




Description

UT-King’s Optical Time Domain Reflectometer (OT-360) is an important instrument used by organizations to certify the performance of new fiber optics links and detect problems with existing fiber links.



An optical time-domain reflectometer (OTDR) is an optoelectronic instrument used to characterize an optical fiber. An OTDR is the optical equivalent of an electronic time domain reflectometer. It injects a series of optical pulses into the fiber under test and extracts, from the same end of the fiber, light that is scattered (Rayleigh backscatter) or reflected back from points along the fiber. The scattered or reflected light that is gathered back is used to characterize the optical fiber. This is equivalent to the way that an electronic time-domain meter measures reflections caused by changes in the impedance of the cable under test. The strength of the return pulses is measured and integrated as a function of time, and plotted as a function of length of the fiber.





Features

  • Multi-wavelength Measurement Mode
  • Trace Fixing Function
  • Ø Multi-wavelength Analysis Function: It can achieve the comparison, display and analysis
  • functions of any trace file.
  • FTTx online testing, able to identify the splitter and the fiber’s end.
  • Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.
  • Bellcore file format (.sor), with the storage of greater than 10,000 traces.
  • Communication Light Detection
  • Connection State Detection
  • The Switching of Measurement Mode





Specification

Wavelength (nm) 850/1300 1310/1550 1310/1490/1550 1625
Dynamic range (dB)2 23/21 32/30 38/36 32/30/30 34 36
Pulse width (ns) 5,20,40,80,160,320,640,1280 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Event blind zone (m)3 3m 3m
Attenuation blind zone (m)3 13m 13m
Linearity (dB/dB) ±0.05 dB/ dB
Loss threshold (dB) 0.05
Loss resolution ratio (dB) 0.01
Sampling resolution ratio (m) 0.125 to 8
Sampling point 32K
Distance uncertainty (m) ±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km) 0.3 to180
Typical real-time refreshing duration (s) 0.2
Memory capacity of trace SD Card (4G), > 10000 pieces
Duration of measurement Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Optical interface FC/UPC (PC, and APC are selectable)
Dimension (H×W×D) 150×235×66mm
Weight 1.5kg





Detailed Images

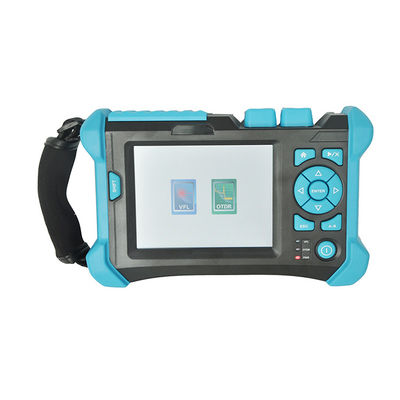

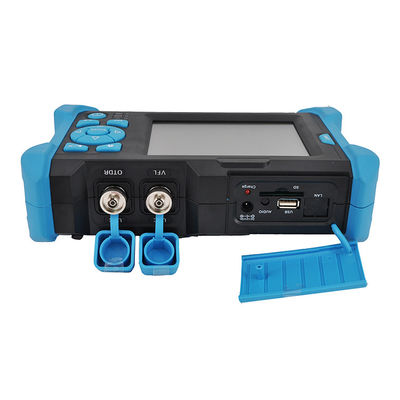

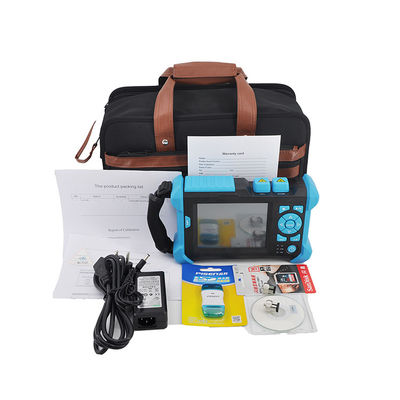

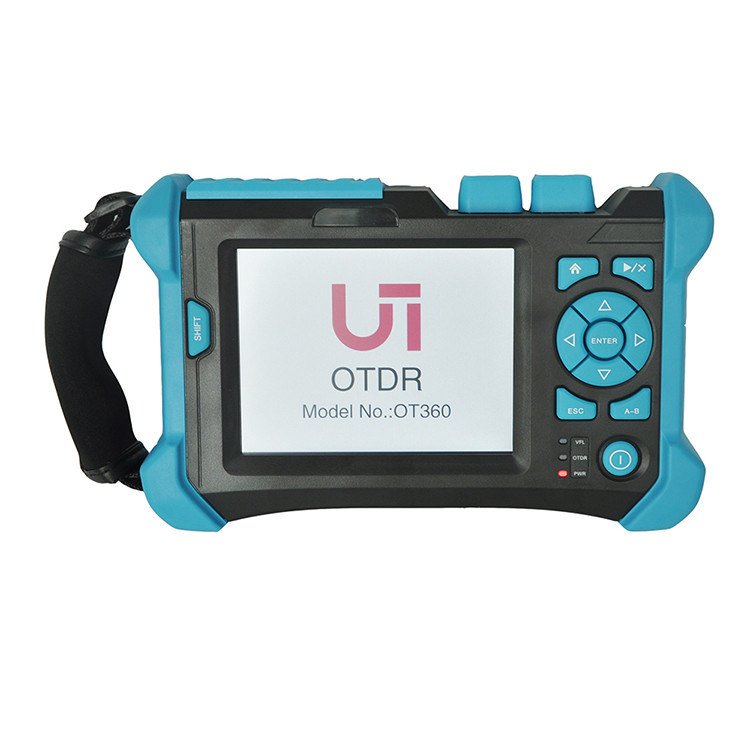

OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing 0OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing 1OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing 2OTDR PON Fiber Optic Tool Kit 1550nm Otdr Testing Machine ARC Fusion Splicing 3
