Product Details:
|
| Application: | FTTH FTTX | Product Name: | OTDR |
|---|---|---|---|
| Wavalength: | 1310/1550nm | TOptical Interface: | FC/UPC (Interchangeable SC、ST) |
| Display: | 4.3 Inch TFT-LCD With LED Backlight | Linearity: | ±0.05 DB/ DB |
| Loss Threshold: | 0.05dB | Optical Power Meter: | Yes |
| Laser Source: | Yes | RJ45 Cable Length: | Yes |
| VFL: | Yes | Optical Loss Test: | Yes |
| RJ45 Cable Tracker: | Yes | Dimension: | 173mmX109mmX45mm |
| High Light: | UPC optical time domain reflectometer,TFT optical time domain reflectometer,TFT otdr optical time domain reflectometer |
||

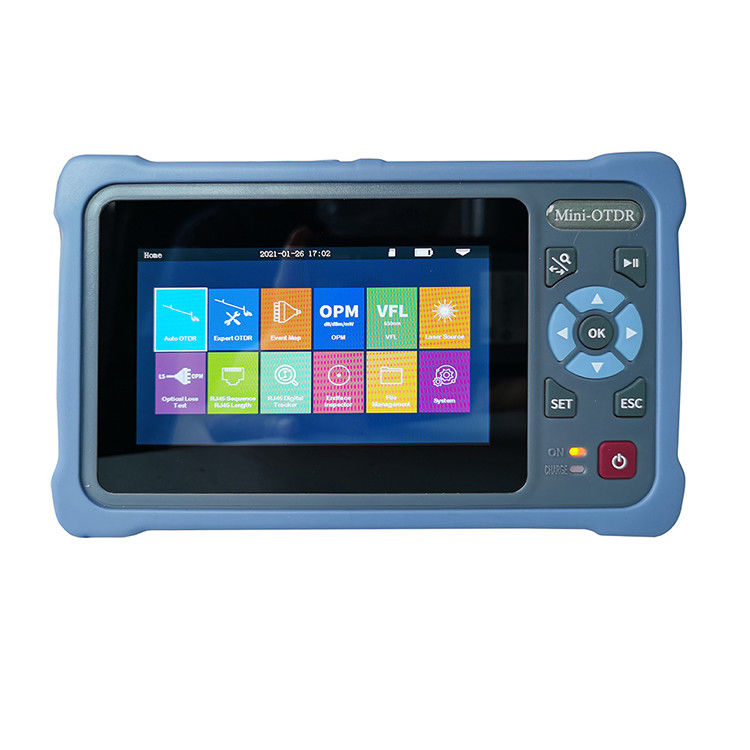

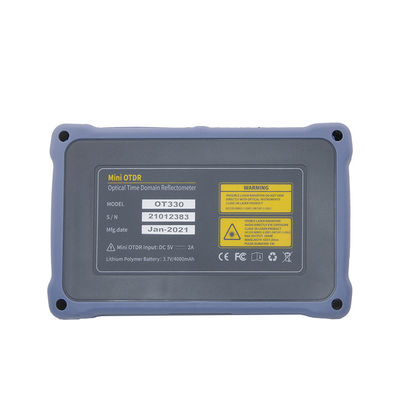

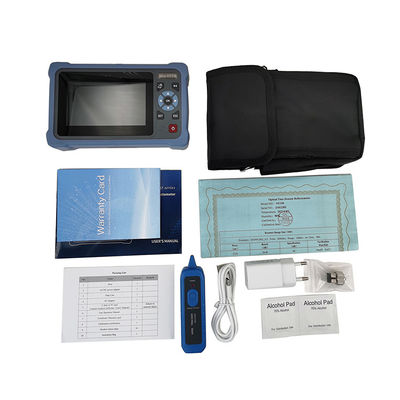

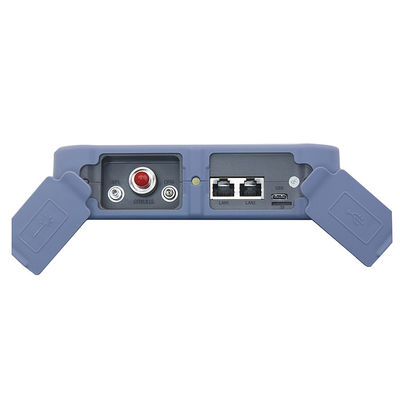

UT-King'sOT-330 Mini Pro series OTDR adopts 4.3-inch capacitive touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "com¬puter level'' file management to meet various test require¬ments in different occasions. OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves; it is equipped with 4000mAh high-density polymer lithium battery, intelligent power saving management, mea¬suring time of more than 8 hours, and supporting power supply and charging of the power bank.
OT-330 series are used to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineer¬ing construction, maintenance and emergency repair and production measurement of optical fiber and cable.
| OTDR | ||||||||
| Model | OT-330S | OT-330D | OT-330Fl (live test) | OT-330F2 (live test) | ||||
| Type | G.652 SM | G.652 SM | ||||||
| Wavelength | 1550nm | 1310nm/1550nm | 1310nm | 1550nm | ||||
| Dynamic Range | 24dB | 26dB/24dB | 26dB | 24dB | ||||
| Event Blind Zone | 25m | |||||||
|
ATT Blind Zone
|
8m | |||||||
| Test Range | 500m/l km/2km/4km/8km/16km/32km/64km/100km | |||||||
| Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/13/23/33/53/83/103/203 | |||||||
| Ranging Accuracy | ± (l m +Sample interval+0.005%XTest distance) | |||||||
| Linearity | W0.05dB/dB | |||||||
| Sample Points | 16k~128k | |||||||
| Sample Resolution | 0.05m~8m | |||||||
| Loss Resolution | 0.00ldB | |||||||
| Loss Threshold |
0.20dB
|
|||||||
| Range Resolution | 0.001m | |||||||
| Refractive Index |
1.00000-2.00000
|
|||||||
| Reflection Accuracy | ±3dB | |||||||
| File Format | SOR Standard File Format | |||||||
| Loss Analysis | 4-point method /5-point method | |||||||
| Laser Safety Level | Class II | |||||||
| Connector | FC/UPC (Interchangeable SC,ST) | |||||||
| Refresh Rate | 3Hz(Typ.) | |||||||
| Multitasking | Support | |||||||
| OPM | LS | RJ45 Cable Length | ||||||
| Wave Range | 800nm~1700nm | Wavelength | Consistent with OTDR | Test Distance | 2300m | |||
| Calibration Wave | 850/980/1300/1310/1490/1550/1625/1650nm | Laser Type | FP-LD | Others | ||||
| Test Range | -70~+10dBm/50~+26dBm | Power | ^-5dBm | Display | 4.3inches800X480 IPS TFT - LCD ” > Multi | |||
| Resolution | 0.01dB | Stability CW, | ±0.5dB/15min (Afterl5min of preheating) | |||||
| Uncertainty | ±5% | Connector | FC/UPC (Interchangeable SC,ST) | Power Supply | AC/DC adaper:input:100V~240V,50/60Hz,0.6A output:5V,2A,Lithium battery:3.7v,4000mAH | |||
|
Frequency Identification |
CW/270/330/l k/2kHz (Use inner LS) | Mode | CW/270Hz/330Hz/ l kHz /2kHz | |||||
| Connector | Universal FC/SC/ST | Wave Recognition | Support | Battery Working | Continuous test>12 h | |||
| Wave Recognition | Support | Optical Loss Test | Data Storage | lntemalstorage:8GB, >20thousand curves | ||||
| VFL | Wavelength | Consistent with LS | Data Interface | USB Type C | ||||
| Wavelength | 650nm±20nm | IL Test | Support | Working Temperature | -10°c〜+50°c | |||
| Output Power | ≥10mW | RJ45 Cable Tracker | Storage Temperature | -40°c〜+70°C | ||||
| Mode | CW/l Hz/2Hz | Mode | Digital tracking | Relative Humidity | 0〜95% Non Condensing | |||
| Connector | FC/UPC (Interchangeable SC,ST) | Distance | 2300m | Weight | W0.5kg (Battey included) | |||
| Laser Safety Level | Class III | Online/Line Pair Tracking | Support | Size | 173mmX109mmX45mm | |||
