23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T

23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T
23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T 23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T 23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T

Large Image :  23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE,ROHS,ISO9001
Model Number: MA5608T
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T

Description
Application: FTTH GPON Port: 16-GPON Port
Product Name: GPFD Board Split Ratio: Up To 1:256
Size: 23 Mm X 237 Mm X 396 Mm Weight: About 1.5kg
Reach: 20km Overload Optical Power: B+ Module : -8.0 DBm C+ Module : -12.0 DBm
Extinction Ratio: 8.2dB Optical Fiber Type: Single Model
Operating Temperature: -25°C To +65°C
High Light:

ratio 256 mini olt gpon

,

ratio 256 MA5683T mini olt gpon

,

MA5683T 20km optical line terminal equipment

10G Mini OLT Huawei MA5608T MA5680T MA5683T MCUD1 MPWD GPBH GPFD GPBD EPFD Optical Line Terminal GPON/EPON OLT




Description

The OLT product is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and business boards.



Huawei MA5608T equipped with 1xMCUD1 (2xGE SFP+2xGE/10GE SFP+ Uplink, include 2 GE SFP Module) 1xMPWC DC Power Module, 1xGPFD C+

Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package

MA5608T chassis

1 MCUD1 equipped, switching capacity 256Gbit/s active/standby mode

1 MPWC equipped, connect Power Board -48 V DC

1 GPFD equipped, with 16 C+ SFP Module





Features

  • The MA5608T is an integrated fiber-copper access device, and can serve as a mini-OLT or mini-DSLAM.
  • The MA5608T, if serving as a mini OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
  • The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and provides Internet access, voice, and video services.
  • Figure 4 shows the appearance of the MA5608T.
  • Figure 4 Appearance of the MA5608T configured with the xPON boards





Specification


Model No. MA5680T MA5683T MA5608T
Dimension: 490*275.8*447.2mm 442*283.2*263mm 442*233.5*88mm
Operating Environment

Temperature:-25℃~+55℃

Humidity:5%~95% (non-condensing)

Temperature:-40℃~+65℃

Humidity:5%~95% (non-condensing

Temperature:-40℃~+65℃

Humidity:5%~95% (non-condensing

Power Supply Parameters

-48V DC input

Supports dual power protection

Working Voltage range -38.4V~-72V

-48V DC input

Supports dual power protection Working Voltage range -38.4V~-72V

-48V DC input

Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input

Backplane Exchange capacity 3.2Tbit/s 1.5Tbit/s 720Gbit/s
Control Board Exchange Capacity 1920 Gbit/s 960Gbit/s 512Gbit/s
Access Capacity

128*10G EPON

64*10G GPON

128*EPON

256*GPON

768*GE

48*10G EPON

24*10G GPON

48*EPON

96*GPON

288*GE

16*10G EPON

8*10G GPON

16*EPON

32*GPON

96*GE

Access Type

Upstream interface: 10GE optical, GE optical/electricity

Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface

System Performance

Layer 2 / Layer 3 wire-speed forwarding

Support static router /RIP/OSPE.MPLS

BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock

Maximum support 1:256 splitting ratio

Maximum support 60KM logical distance





Detailed Images

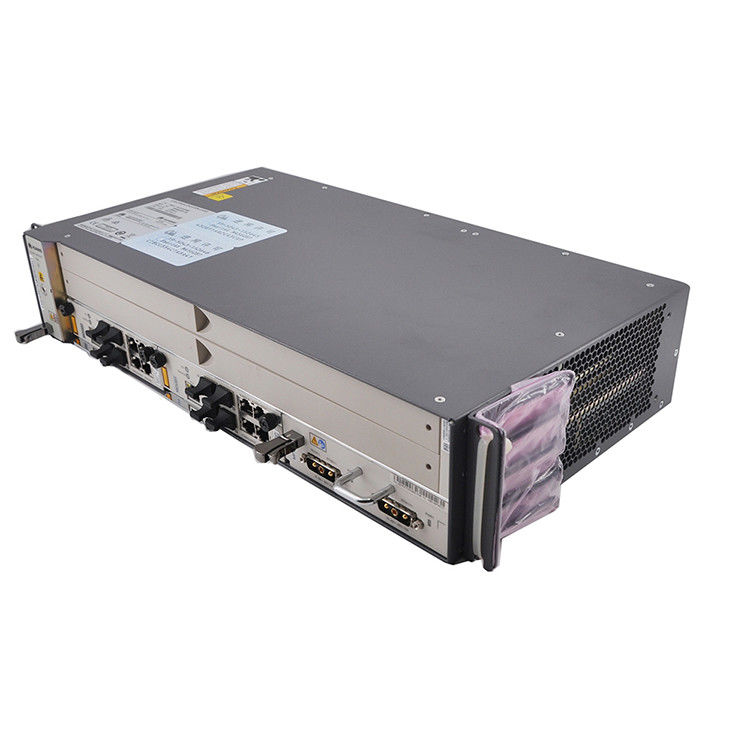

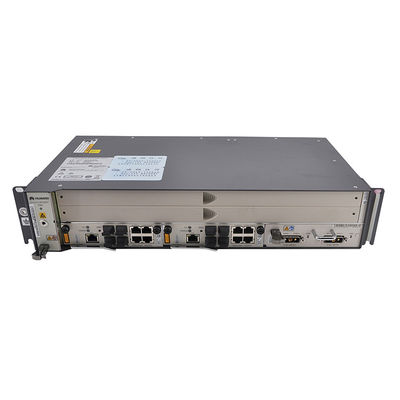

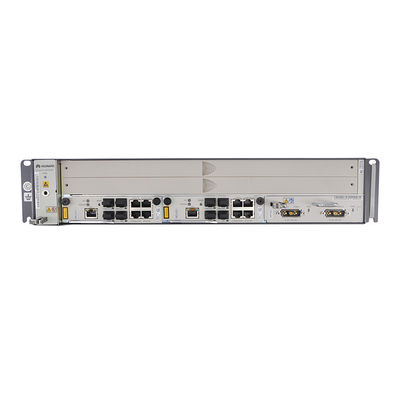

23mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T 023mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T 123mm Mini Olt Gpon Optical Line Terminal Equipment MA5683T 2
