Product Details:
|
| Application: | FTTH | GPON Port: | GPON OLT |
|---|---|---|---|
| Product Name: | GFGH Board | Split Ratio: | Up To 1:256 |
| Size: | 23 Mm X 237 Mm X 396 Mm | Weight: | About 1.5kg |
| Reach: | 20km | Overload Optical Power: | B+ Module : -8.0 DBm C+ Module : -12.0 DBm |
| Extinction Ratio: | 8.2dB | Optical Fiber Type: | Single Model |
| Operating Temperature: | -25°C To +65°C | ||
| High Light: | 20km fiber link onu,ratio 256 Gbit fiber link onu,ratio 256 ont olt fibre |
||

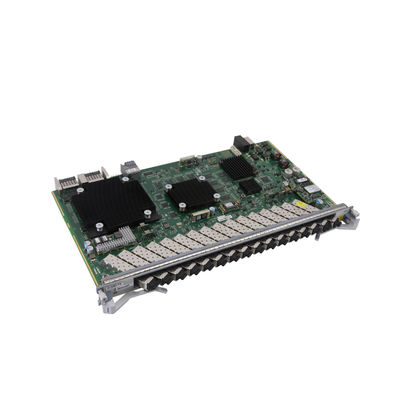

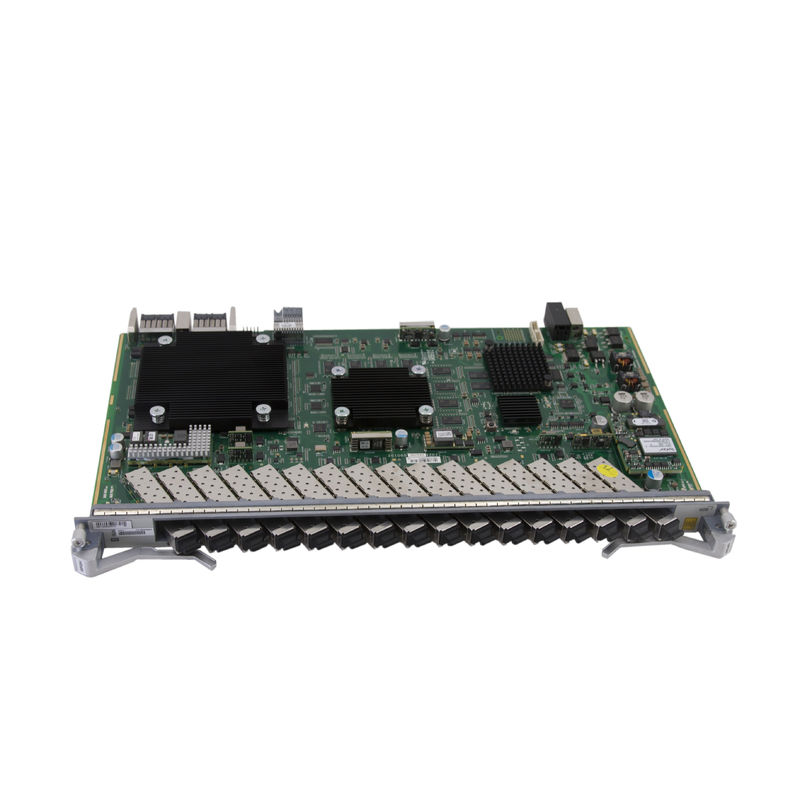

ZTE GFGH 16-Port GPON Subscriber Card for ZTE ZXA10 C600 C650 C680 OLT ZTE ZXA10 C600 OLT is a 19-inch, 11U height unified platform with 17 service slots that supports multiple access technologies including GPON, XG-PON, XGS-PON, Combo PON, 10G-EPON and GE P2P, as well as smooth migration to 50G PON, and provides L2 switch, VLAN service, L3 routing protocol and service processing capabilities, supporting flexible configurations and suits multiple application scenarios. This OLT comes chassis with 2xcontrol board, 8x10GE uplink, 2xDC power board and 2PCS DC power cables, 1PCS earth cable
High-end route and fully distributed programmable architecture.
Support ISSU and NSR to make possible 0 interruption during switchover or upgrade.
Fully compatible with multiple generations of PON and multiple technology directions.
Support Netconf/YANG, migrate to SDN smoothly.
Supports network slicing.
Supports built-in blade as NFVI for experience-sensitive services.
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C+ Module : Single Fiber Bidirectional Optical Module, Class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Weight | 1.46kg |
| Dimensions (W x D x H) | 393.1 mm × 23.9 mm × 214 mm |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
