Product Details:
|
| Application: | FTTH | GPON Port: | GPON OLT |
|---|---|---|---|
| Product Name: | GPON OLT CLASS-c++ | Interface Type: | SC |
| Cable Type: | Optical Fiber | Transmission Distance: | 20km |
| Transfer Method: | Optical Transmission | Optical Fiber Type: | Single Model |
| Emission Wavelength: | -1310/1550(nm) | Transmit Power: | 5 (dbm) |
| High Light: | FTTB GPLF GPON OLT,FTTB ftth SC 20km GPON OLT,ftth SC 20km gpon sfp transceiver |
||

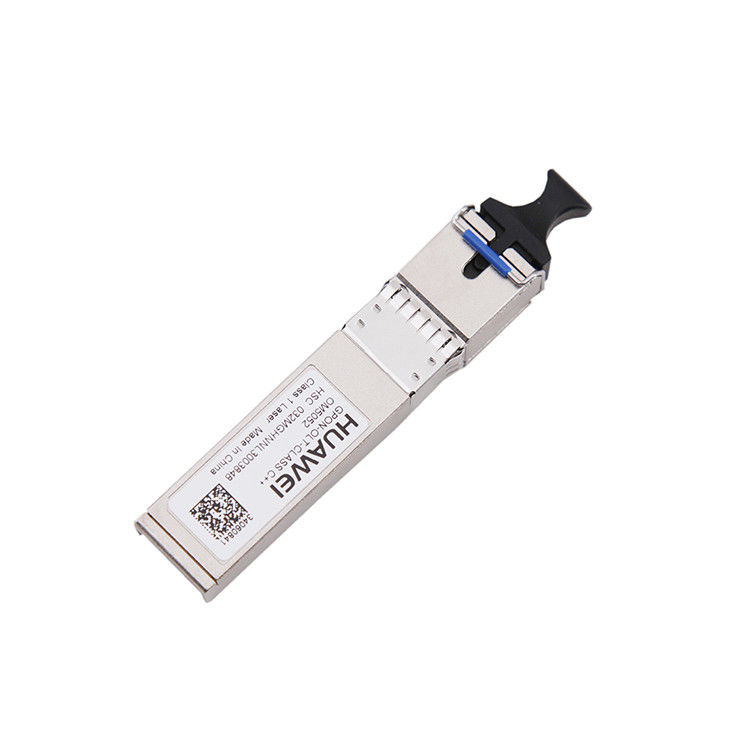

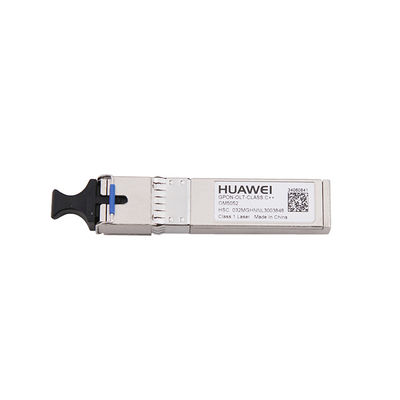

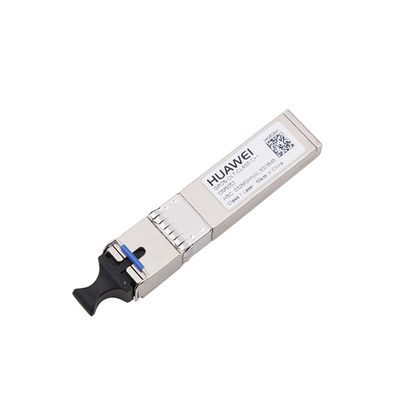

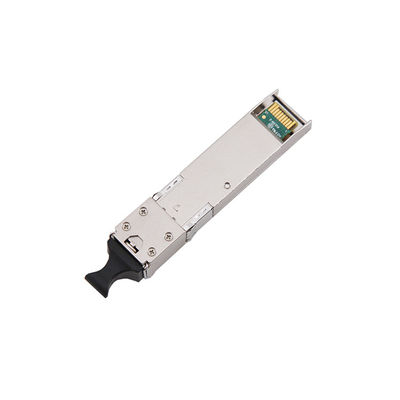

Huawei GPON OLT C++ SFP is inserted in service board like GPFD GPBD GPBH GPHF etc and provides one or more transceiver module slot. It provides a full range of optical transceivers, such as SFP+ (SFP Plus) transceiver, X2 transceiver, XENPAK transceiver, XFP transceiver, SFP (Mini GBIC) transceiver, GBIC transceiver, CWDM/DWDM transceiver, 40G QSFP+ & CFP, 3G-I video SFP, WDM Bi-Directional transceiver and PON transceiver.
| No. | 1 | 2 | 3 |
| Tipo | GPON classe B + | GPON classe C + | GPON classe C ++ |
| Comprimento de Onda de operação | Tx: 1490 nm | Tx: 1490 nm | Tx: 1490 nm |
| Rx: 1310 nm | Rx: 1310 nm | Rx: 1310 nm | |
| Tipo de encapsulamento | SFP | SFP | SFP |
| Taxa De porto | Tx: 2.49 gbit/s | Tx: 2.49 gbit/s | Tx: 2.488 gbit/s |
| Rx: 1.24 gbit/s | Rx: 1.24 gbit/s | Rx: 1.244 gbit/s | |
| Mínima de Saída de Potência Óptica | 1.50 dBm | 3.00 dBm | 5.00 dBm |
| Máxima de Saída de Potência Óptica | 3.00 dBm | 6.00 dBm | 8.00 dBm |
| O máximo de Sensibilidade do Receptor | -28.00 dBm | -32.00 dBm | -35.00 dBm |
| Tipo de Conector óptico | SC | SC | SC |
| Tipo De Fibra óptica | Single-mode | Single-mode | Single-mode |
| Sobrecarga de Potência Óptica | -8.0 dBm | -12.0 dBm | -15.0 dBm |
| Relação de extinção | 10 dB | 8.2 dB | 8.2 dB |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
