Product Details:
|
| Application: | FTTH | GPON Port: | EPON OLT |
|---|---|---|---|
| Product Name: | PX20+ PX20++ PX20+++ | Interface Type: | SC |
| Cable Type: | Optical Fiber | Transmission Distance: | 20km |
| Transfer Method: | Optical Transmission | Optical Fiber Type: | Single Model |
| Emission Wavelength: | -1310/1550(nm) | Transmit Power: | 3 /5/7 Dbm |
| High Light: | ftth 1.25G GPON OLT,ftth 20km SFP GPON OLT,20km 1.25G gpon ont sfp module |
||

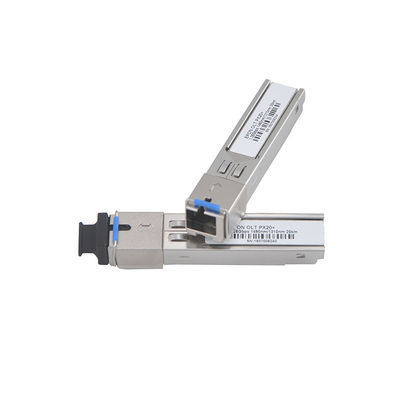

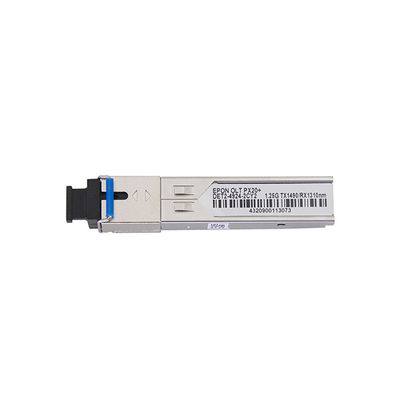

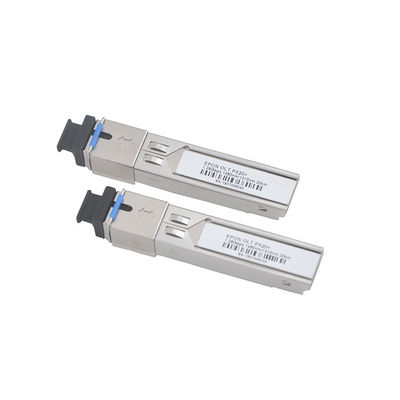

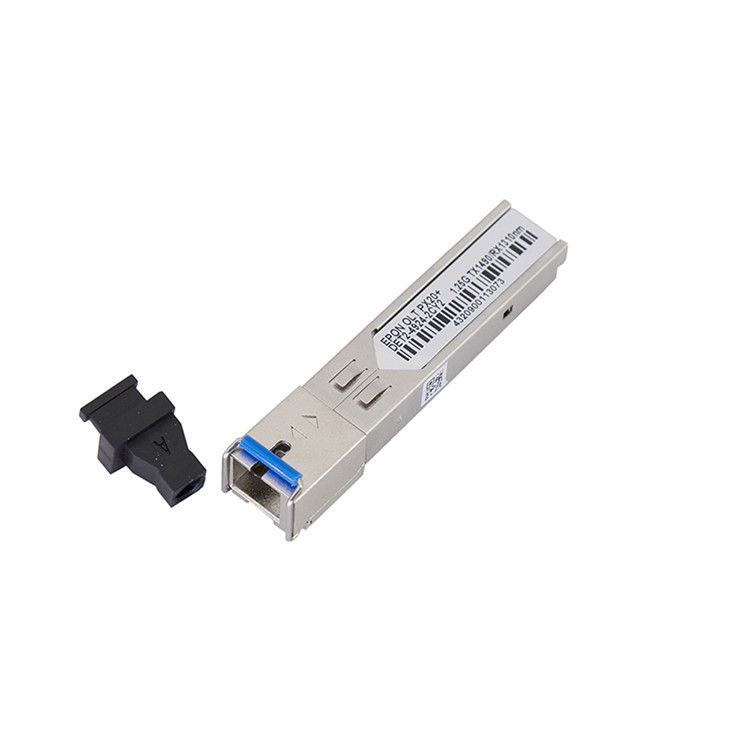

PON OLT PX20+ PX20++ PX20+++ is an SFP packaged hot-swappable optical module (compliant with IEEE 802.3ah 1000BASE-PX20+) used to connect optical data communication links. It adopts a single-fiber bidirectional design, and the uplink and downlink rates can reach up to 1.25Gbps, which is widely compatible with the market. Mainstream brand OLT equipment.
BSOLUTE MAXIMUM RATING
| Parameters | Symbol | Min. | Max. | Unit |
| Power Supply Voltage | VCC | 0 | 3.6 | V |
|
Storage Temperature
|
Tc | -40 | 85 |
°C
|
| Tc | 0 | 70 | ||
| Operating Case Temperature | TI | -40 | 85 | °C |
| Relative Humidity | RH | 5 | 95 | % |
| RX Input Average Power | Pmax | - | -7 | dBm |
| BSOLUTE MAXIMUM RATING | ||||
| Parameters | Symbol | Min. | Max. | Unit |
| Power Supply Voltage | VCC | 0 | 3.6 | V |
| Storage Temperature | Tc | -40 | 85 | °C |
| Tc | 0 | 70 | ||
| Operating Case Temperature | TI | -40 | 85 | °C |
| Relative Humidity | RH | 5 | 95 | % |
| RX Input Average Power | Pmax | - | -7 | dBm |
| RECOMMENDED OPERATING ENVIRONMENT | ||||
| Parameters | Symbol | Min. | Typical | Max |
| Power Supply Voltage(V) | VCC | 3.135 | 3.3 | 3.465 |
|
Power Supply Current(mA)
|
Icc | 350 | ||
| TC | 0 | 25 | 70 | |
| Operating Case | ||||
| Temperature (℃) | TI | -40 | 25 | 85 |
| OPTICAL CHARACTERISTICS | ||||
| Parameters | Unit | Values | ||
| Operating Reach | m | 2 - 20K | ||
| Transmitter | ||||
| Center wavelength | nm | 1490 | ||
| Side Mode Suppression Ratio (min) | dB | 30 | ||
| Launched power | ||||
| – maximum (Average) | dBm | 9 | ||
| – minimum (Average) | dBm | 7 | ||
| Average launch power of OFF transmitter (max) | dBm | -30 | ||
| Extinction ratio (min) | dB | 9 | ||
| Optical Return Loss Tolerance (min) | dB | 12 | ||
| Receiver | ||||
| Center wavelength (range) | nm | 1310 | ||
| Receive overload (max) in average power(note 1) | dBm | -8 | ||
| Receive sensitivity (min) in average power(note 1) | dBm | -32 | ||
| Receiver Reflectance (max) | dB | -12 | ||
| Los Assert(min) | dBm | -33 | ||
| Los Dessert(max) | dBm | -30 | ||
| Los Hysteresis(min) | dB | 0.5 | ||
| Receiver power (damage, Max) | dBm | -7 | ||
| DITITAL DIAGNOSTIC FUNCTIONS | ||||
| Parameter | Symbol | Min. | Max | Unit |
| Temperature monitor absolute error | DMI_Temp | -3 | 3 | degC |
| Laser power monitor absolute error | DMI_TX | -3 | 3 | dB |
| Supply voltage monitor absolute error | DMI_VCC | -0.08 | 0.08 | |
| Bias current monitor | DMI_Ibias | -0.1 | 0.1 | mA |
