1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer

1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer
1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer 1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer 1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer 1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer

Large Image :  1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: OT300
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer

Description
Application: FTTH FTTX Product Name: OTDR
Wavalength: 1310/1550nm TOptical Interface: FC/UPC (Interchangeable SC、ST)
Display: 3.5 Inch TFT-LCD With LED Backlight Linearity: ±0.05 DB/ DB
Loss Threshold: 0.05dB Event Dead Zoner Meter: 1.8m
Attenuation Dead Zone: 10m VFL Wavelength: 650nm
VFL Output Power(dBm): ≥-3 VFL Test Distance(km): 3
Dimension: 220mmX106mmX60mm
High Light:

1.8m handheld optical power meter

,

OT300 handheld optical power meter

,

OT300 optic time domain reflectometer

FTTH Fiber Optical Handheld Optical Time Domain Reflectometer OTDR OT300 Fiber Optic Cable Testing Tools




Description

UT-King’s Optical Time Domain Reflectometer (OT-300) is an important instrument used by organizations to certify the performance of new fiber optics links and detect problems with existing fiber links.







Features

  • Determine fiber optic cable or fiber optic’s failure point, connection point, breakpoint position
  • Describe fiber optic cable or fiber’s loss distribution curve, measure cable, fiber’s length and the loss, attenuation coefficient between two points
  • Measure fiber optic cable, optical fiber connector’s insertion loss
  • Measure fiber optic cable, optical fiber’s reflection loss;
  • Touch screen+keypad, easy to operate Large-capacity polymer lithium battery supporting continuous
  • operation of more than 10 hours
  • Supporting data exchange between the SD card and USB flash drive
  • One-click red-light switch-on function
  • Solid shell design, dustproof and shockproof
  • Small, light, and portable







Specification

Item OT-300S OT-300D
Dynamic 30/28dB 32/30dB
Operating Wavelength(±20nm) 1310/1550
Display 3.5’TFT LCD touch screen
Light source tyep LD
Optical Interface FC/UPC
Distance range(km) 0.3, 1, 3, 5, 10, 30, 60, 120
Pulse width(ns) 5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480,auto
Measurement duration 15s,30s,1min,2min,3min
Attenuation dead zone 10m
Event dead zone 1.8m
Distance measurement precision ±(1m+5×10-5×Distance+Samling interval)
Data storage >60000 test traces
Communication interface USB
VFL Wavelength - 650nm
Output power(dBm) - ≥-3
Test distance(km) - 3
Optical Communications Test YES




Detailed Images

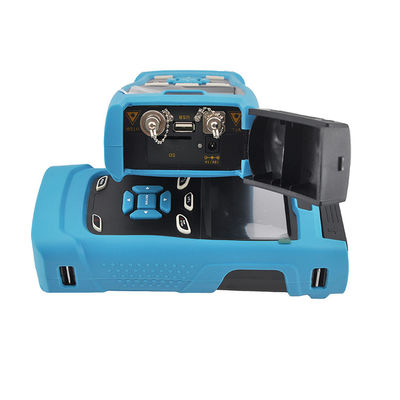

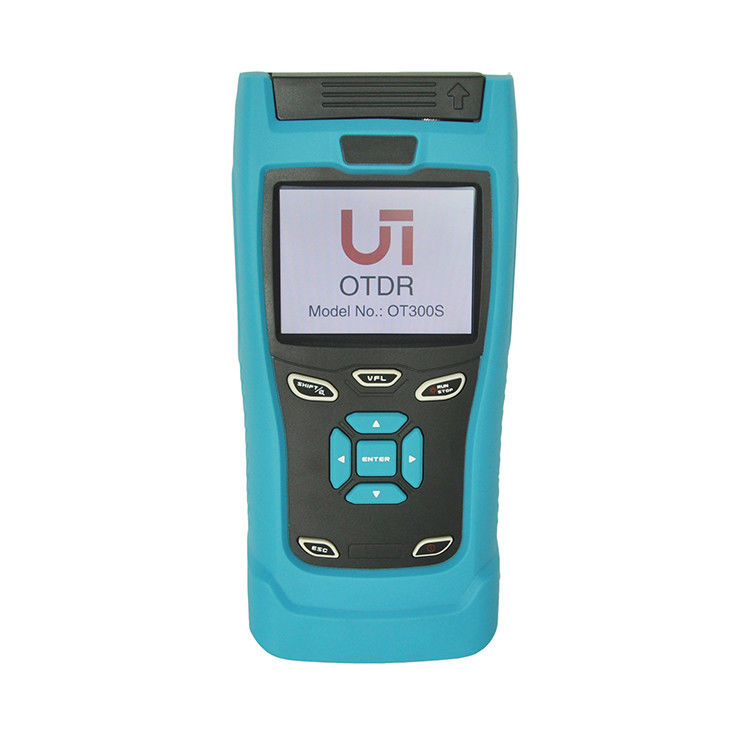

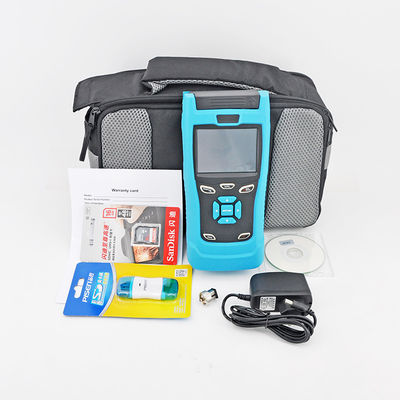

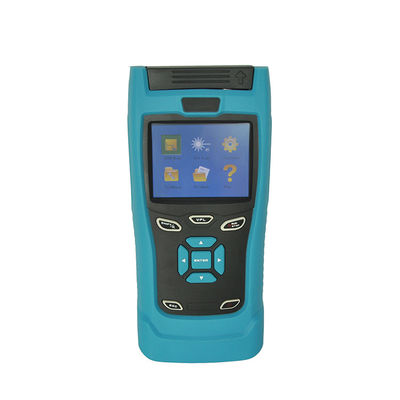

1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer 01.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer 11.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer 21.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer 3



FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
