19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC

19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC
19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC 19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC 19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC 19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC

Large Image :  19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: 1U MPO Patch Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/1bag
Delivery Time: 3-5days
Supply Ability: 1000pcs/week

19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC

Description
Product Name: 1U MPO Patch Panel Application: FTTH FTTB FTTX Network
Color: Black Material: Cold-rolled Steel Sheet
Adapter TypeM4: SM OM3 OM4 Fiber Count: 144 Ports
Panel Type: 3 Layers, Sliding Drawer Rack Mount 19' MPO--LC Cassette: MPO--LC Cassette
Highlight:

19 Inch mpo cassette patch panel

,

144 Port mpo cassette patch panel

,

144 Port mpo fiber patch panel

19 Inch 144 Port 1U HDMPO/MTP-LC Patch Panel MTP/MPO Cassette Mpo Cable





Description

UT-King’s panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components. Typical MPO fiber optic patch panel is with 1U 19 standard size, inside the patch panel, it can be splice trays with 1XN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 1U MPO fiber patch panel can be with max 48 cores or 72 cores output optical strand, the output connectors can be SC/FC/ST/LC.

1U MPO/MTP Patch Panel for quick deployment. This ready-to-install Multimode (OM4) MPO/MTP Patch Panel offers 144 LC ports (36 Quad LC) front and 12 Low Loss MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity A and designed for implementations in 40G/100G networks.



Features

  • Finishing: powder coated
  • Fits into 19 inch installations
  • Max capacity up to 144 fiber for 1U
  • Sliding tray design
  • Easy to operate and maintain





Application

  • Data communication network
  • Optical System Access network
  • Storage area networking fiber channel
  • High density architectures



Environment

The operating and storage temperature: - 45 ~ + 80 ℃.
Tolerable humidity: <95%. The voltage resistance between the cable grounding device in the shell and the shell is >3000V(DV),
which is tested in 1 minute without breakdown and no flashover.


Specification

Product name
1U UHD MPO&MTP-LC Rack mount patch panel
Fiber Count
Max.144 Fibers
Enclosure Type
Rack Mountable
Material
CRS Cold rolled steel
Installation
Standard EIA 19" Rack
Dimensions (HxWxD)
482.6mmx455mmx44mm
Compliant
TIA/EIA-568-C.3
Advantage
High Density Patching System





Detailed Images

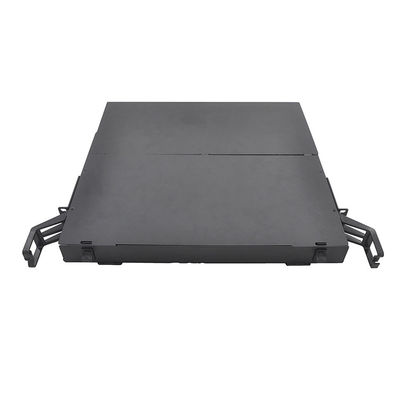

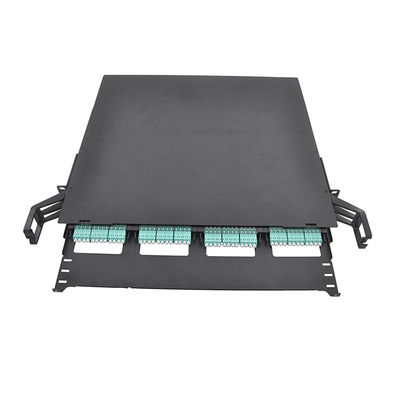

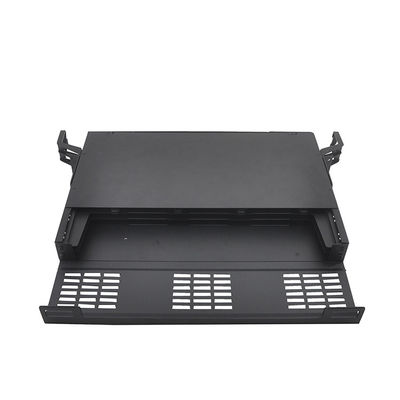

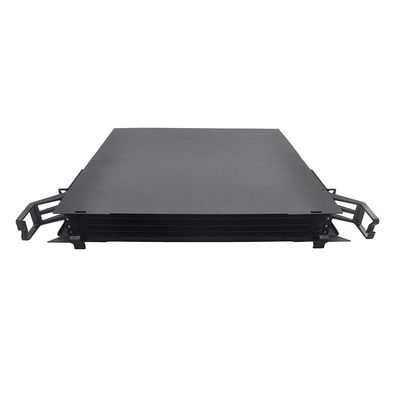

19 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC 019 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC 119 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC 219 Inch Fiber Mpo Cassette Patch Panel 144 Port 1U HDMPO MTP LC 3

FAQ

Q: What are the benefits of using a patch panel?

A: Patch panels will allow testing routing and maintenance of network cables connected to your network. With a patch panel this is quickly done just by making changes to cables on the patch panel itself. Patch panels also allow for easier cable management and identification of cable routing.



Q: What is a rack unit?

A: A rack unit U or RU is a unit of measure that describes the height of equipment designed to mount in a rack. A rack unit is 1.75 inches. Typically one rack unit will take three vertical screw holes on each side of a standard rack.



Q: When would I use a Cassette?

A: A cassette is a great way to save time and space on your fiber optic system. They include a preterminated breakout cable that offers an easy plug-and-play solution. Cassettes are perfect for when you want to upgrade your system to include multiple fiber connections.



Q: Can I use any fiber patch cable in my network with my enclosure?

A:If your fiber enclosure is loaded you must have cables that are compatible with the included adapters. For unloaded enclosures you must select adapter panels which correspond to your fiber connector type or use a splice tray for single- and mass-fusing.
