1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed

1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed
1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed 1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed 1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed 1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed

Large Image :  1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: 1U Patch Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/1bag
Delivery Time: 3-5days
Supply Ability: 1000pcs/week

1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed

Description
Product Name: 1u MPO Patch Panel Application: FTTH FTTB FTTX Network
Color: Black Size: 1U
Material: Aluminium Or Steel Adapter TypeM4: SM OM3 OM4
High Light:

fttx 1U MPO Patch Cord

,

19 inch MPO Patch Cord

,

fttx 1U MTP Patch Panel

Cassettes Type Rack Mounted Fixed Fiber Optic 1U 19 inch 96 cores MPO MTP Patch Panel





Description

UT-King’s High Density (HD) Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.





Features

  • Adopt high quality cold rolled steel plate forming, electrostatic powder spraying.
  • Simple and beautiful design, easy installation.
  • Independent can replace the front adapter panel design, can flexibly match various adapters.
  • Up to 96 cores can be accommodated according to the type of module box.
  • It is equipped with a front-end jumper groove to facilitate the storage and management of front-end jumpers and improve the density.





Application

  • Data communication network
  • Optical System Access network
  • Storage area networking fiber channel
  • High density architectures



Environment

The operating and storage temperature: - 45 ~ + 80 ℃.
Tolerable humidity: <95%. The voltage resistance between the cable grounding device in the shell and the shell is >3000V(DV),
which is tested in 1 minute without breakdown and no flashover.


Specification

Specification
Single Mode
Multi mode

Insertion Loss
0.50dB Typical (all Fibers)
0.30dB Typical (all Fibers)
0.75dB Maximum(Single fiber)


0.50dB Maximum (Single fiber)
Return Loss
≥60dB (8° Angle Polish)
>20dB
Durability
<0.30dB change
<0.20dB change
Operating Temperature
-40°C~+80°C

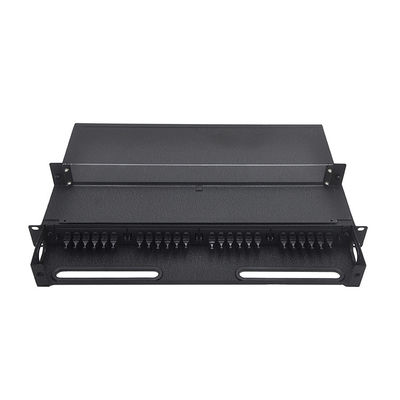

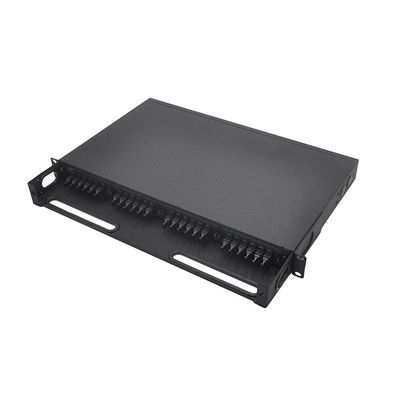

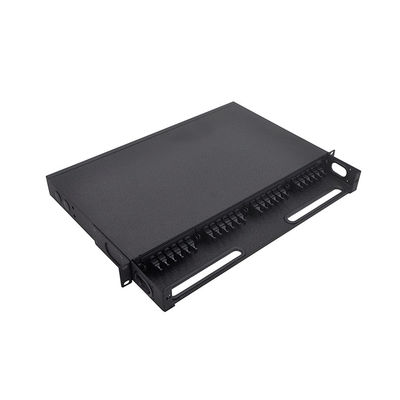

Detailed Images

1U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed 01U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed 11U MPO Patch Cord MTP Patch Panel 19 Inch Cassettes Type Rack Mounted Fixed 2

FAQ

Q: What are the benefits of using a patch panel?

A: Patch panels will allow testing routing and maintenance of network cables connected to your network. With a patch panel this is quickly done just by making changes to cables on the patch panel itself. Patch panels also allow for easier cable management and identification of cable routing.



Q: What is a rack unit?

A: A rack unit U or RU is a unit of measure that describes the height of equipment designed to mount in a rack. A rack unit is 1.75 inches. Typically one rack unit will take three vertical screw holes on each side of a standard rack.



Q: When would I use a Cassette?

A: A cassette is a great way to save time and space on your fiber optic system. They include a preterminated breakout cable that offers an easy plug-and-play solution. Cassettes are perfect for when you want to upgrade your system to include multiple fiber connections.



Q: Can I use any fiber patch cable in my network with my enclosure?

A:If your fiber enclosure is loaded you must have cables that are compatible with the included adapters. For unloaded enclosures you must select adapter panels which correspond to your fiber connector type or use a splice tray for single- and mass-fusing.
