OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector

OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector
OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector

Large Image :  OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: 1U MPO Patch Panel
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/1bag
Delivery Time: 3-5days
Supply Ability: 1000pcs/week

OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector

Description
Product Name: 12 Fibers MPO LGX BOX Application: FTTH FTTB FTTX Network
Color: Black Material: Plastic Stell
Adapter TypeM4: SM OM3 OM4 Fiber Count: 12 Ports 24 Prots
High Light:

OM3 MPO Patch Cord

,

MTP MPO Patch Cord

,

LC mtp patch cord

12 24 fiber cores LC MPO cassette box OM3 optical cable MTP module MPO/MTP LGX box





Description

UT-King’s MPO cassette module is mainly used to divide the 12 fibers MPO connectors of the pre-assembled terminal end to the simplex or duplex standard connector. .By using the simplex or duplex patch cord ,the output of the module can be directly connected with the equipments , frame or client’s end..This transition module is characterized by single core or double core port in module front, 12 core SC simplex and LC duplex connectors are optional, one or two adapters are installed on the back, nodule is transition patch cord, directly connected the module front panel with the back of the adapter.



Features

  • The front panel is equipped with LC , MTRJ or SC adapter, rear panel assembles the MPO adapter.
  • Adopts high quality engineering plastics and aluminum alloy materials, with electrostatic plastic-sprayed on the surface ,making it beautiful in outlook and convenient use.
  • MPO face plate can be upgraded easily.
  • There are mark in the front of each port, and can be easily identified.
  • Quick and easy installed ,flexible in configuration and easy to management.





Application

  • Data communication network
  • Optical System Access network
  • Storage area networking fiber channel
  • High density architectures





Specification

Type
Single Mode 1310nm
Single Mode 1310nm
Multi Mode 850nm
(APC Polish)
(UPC Polish)
(PC Polish)
Fiber Count
8,12,24
8,12,24
8,12,24
Fiber Type
G652D,G657A1 etc
G652D,G657A1 etc
OM3 OM4

Maximum Insertion Loss
Elite

Standard
Elite

Standard
Elite

Standard
Low Loss
Low Loss
Low Loss
≤0.35 dB
≤0.75dB
≤0.35 dB
≤0.75dB
≤0.35 dB
≤0.60dB
Return Loss
≥60 dB
≥55 dB
≥20 dB
Durability
≥500 times
≥500 times
≥500 times
Operating Temperature
-40℃ ~ +80℃
-40℃ ~ +80℃
-40℃ ~ +80℃

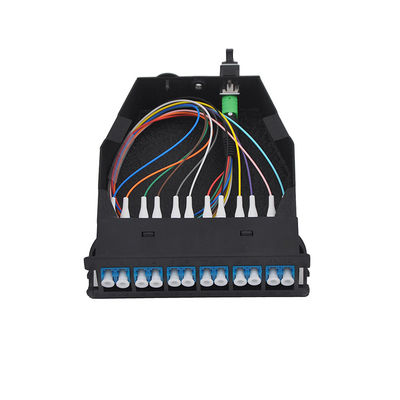

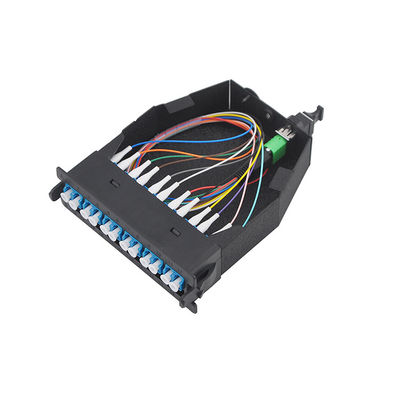

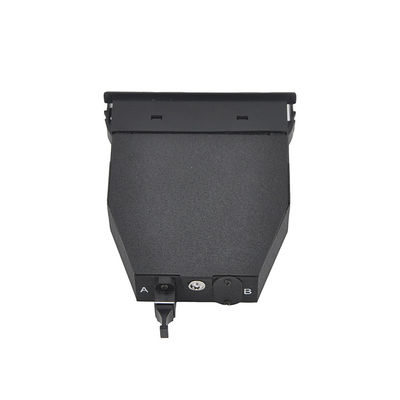

Detailed Images

OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector 0OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector 1OM3 MPO Patch Cord MTP LC 12 Fibers LGX Box Duplex Standard Connector 2

FAQ

Q: What are the benefits of using a patch panel?

A: Patch panels will allow testing routing and maintenance of network cables connected to your network. With a patch panel this is quickly done just by making changes to cables on the patch panel itself. Patch panels also allow for easier cable management and identification of cable routing.



Q: What is a rack unit?

A: A rack unit U or RU is a unit of measure that describes the height of equipment designed to mount in a rack. A rack unit is 1.75 inches. Typically one rack unit will take three vertical screw holes on each side of a standard rack.



Q: When would I use a Cassette?

A: A cassette is a great way to save time and space on your fiber optic system. They include a preterminated breakout cable that offers an easy plug-and-play solution. Cassettes are perfect for when you want to upgrade your system to include multiple fiber connections.



Q: Can I use any fiber patch cable in my network with my enclosure?

A:If your fiber enclosure is loaded you must have cables that are compatible with the included adapters. For unloaded enclosures you must select adapter panels which correspond to your fiber connector type or use a splice tray for single- and mass-fusing.
