Product Details:
|
Application: | FTTH | Function: | Optic Collimator |
---|---|---|---|
Product Name: | Fiber Optic Collimator | Connector: | FC/APC |
Wavelength: | 1310/1550nm | Length: | 1M/2M/3M...customize |
Fiber Type: | SMF-28e | Package: | Gold-plated Tube |
Keywords: | Optical Fiber Collimator | Feature: | Low Insertion Loss, High Accuracy |
High Light: | 1550nm loose tube fiber,900um Gold plated loose tube fiber,900um loose tube fiber optic cable |

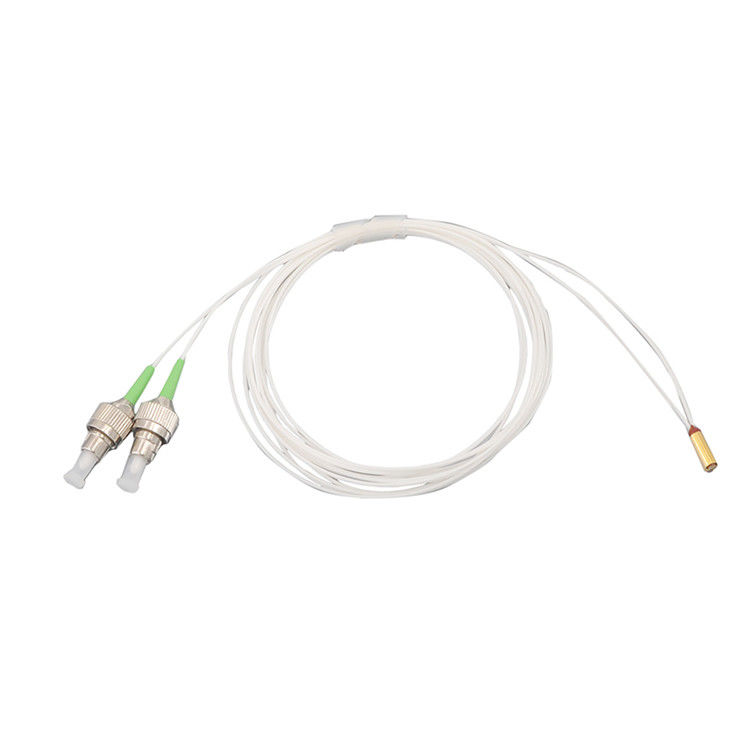

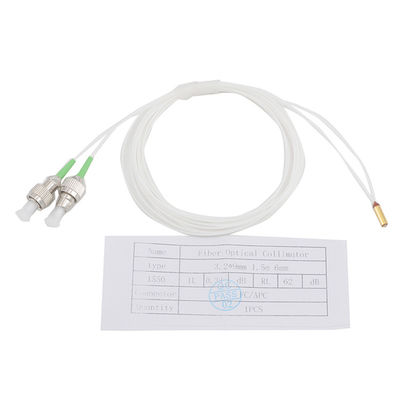

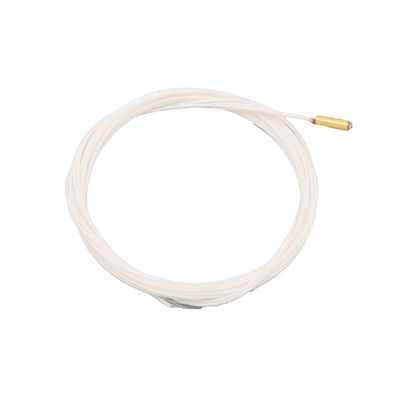

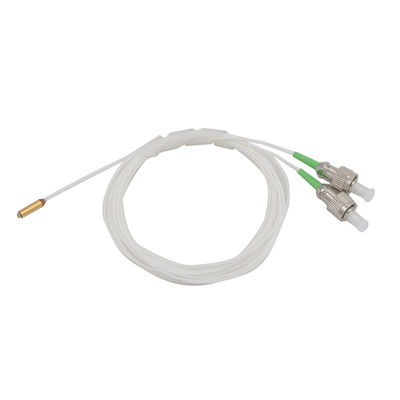

UT-king’s Fiber Optic Collimators are the basic parts for mirco optical components like DWDM filter,isolator,circulator,and optical switch.This Collimators can be manufactured in 80/165um fine diameter fiber,MFD value 6um.This product used advanced technology to ensure low insertion loss of products.
Parameter | Single fiber | Dual fiber | ||||||
Grade P | Grade A | Grade P | Grade A | |||||
Center Wavelength (λc)(nm) | 1310 or 1550,others on request | |||||||
Operating Wavelength Range(nm) | λc±50 | |||||||
Insertion Loss(dB) | 0.2 | 0.25 | 0.2 | 0.25 | ||||
Min. Return Loss(dB) | 60 | 60 | 60 | 55 | ||||
Working distance(mm) | 5~10 | |||||||
Beam diameter(mm) | 0.45 | |||||||
Dimensions | 1.8(OD)Lens(mm) | 3.2×10 Metal holder or 2.78×8.0 Glass tube | ||||||
1.0(OD)Lens(mm) | 1.8×8 Metal holder or 1.6×7 Glass tube | |||||||
Fiber Type | 125/250um fiber or 80/160um fine diameter fiber,MFD value 6um | |||||||
Operating Temperature(℃) | -5 to +70 | |||||||
Storage Temperature(℃) | -40 to +85 |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
