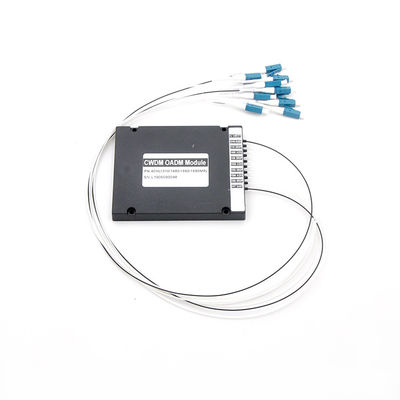

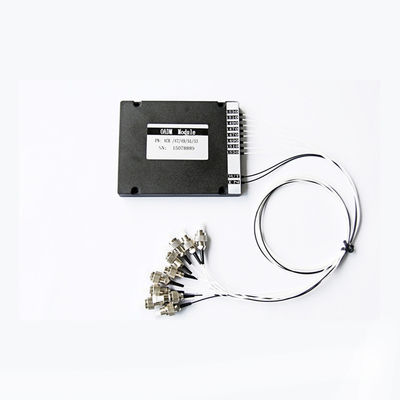

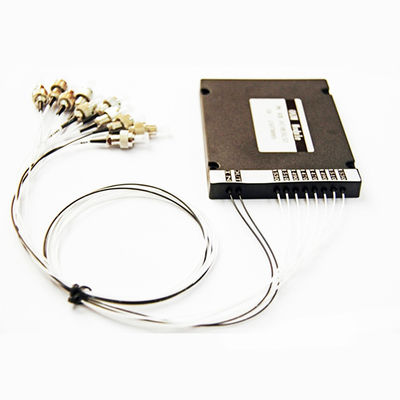

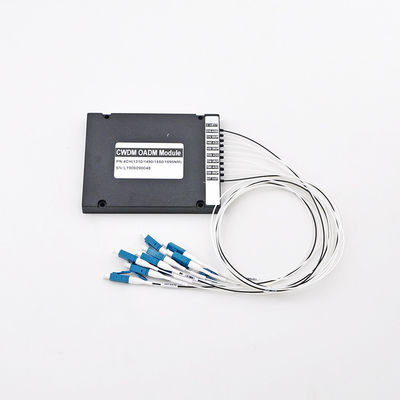

Product Details:
|
| Application: | FTTH | Function: | DWDM |
|---|---|---|---|
| Product Name: | Fiber Optic DWDM | Connector: | SC/FC/LC |
| Wavelength: | 1270~1610/1271~1611 | Fiber Length: | 1m...customize |
| Model:: | Mux/Demux | Keywords: | Optical Fiber DWDM Module |
| Channel: | 16CH | ||
| High Light: | 18 Channel SC DWDM MUX DEMUX,ROHS DWDM MUX DEMUX,18 Channel fiber mux demux |
||
UT-King’s DWDM terminal multiplexer. The terminal multiplexer contains a wavelength-converting transponder for each data signal, an optical multiplexer and where necessary an optical amplifier (EDFA). Each wavelength-converting transponder receives an optical data signal from the client-layer, such as Synchronous optical networking [SONET /SDH] or another type of data signal, converts this signal into the electrical domain and re-transmits the signal at a specific wavelength using a 1,550 nm band laser. These data signals are then combined together into a multi-wavelength optical signal using an optical multiplexer, for transmission over a single fiber (e.g., SMF-28 fiber). The terminal multiplexer may or may not also include a local transmit EDFA for power amplification of the multi-wavelength optical signal. In the mid-1990s DWDM systems contained 4 or 8 wavelength-converting transponders; by 2000 or so, commercial systems capable of carrying 128 signals were available.
| Mux | Demux | ||
| Channel Wavelength (nm) | 1530.33~1560.61(21~59 ITU grid) | ||
| Center Wavelength Accuracy (nm) | ± 0.5 | ||
| Min Channel Spacing (GHz) | 100 | ||
| Passband (@-0.5dB bandwidth)(nm) | >0.22 | ||
| Insertion Loss(dB) | Add/Drop Ch. | ≤1.0 | |
| Reflective Ch. | ≤0.4 | ||
| Passband Flatness(dB) | ≤0.3 | ||
| Add/Drop channel Isolation(dB) | Adjacent Channel | N/A | ≥25 |
| Non-adjacent Channel | N/A | ≥35 | |
| Reflective Isolation(dB) | ≥12 | ||
| Insertion Loss Temperature (dB/°C ) | ≤0.003 | ||
| Wavelength Temperature Shifting (nm/ °C ) | ≤0.002 | ||
| PDL (dB) | ≤0.1 | ||
| PMD (ps) | ≤0.1 | ||
| Directivity (dB) | ≥50 | ||
| Return Loss (dB) | ≥45 | ||
| Rated power (mW) | 300 | ||
| Operation Temperature (°C) | 0 ~ +70 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | 5.5×L34(L38 for 900um Jacket) | ||
| SDWDM | |
| Channel Spacing | 1=100GHz |
| Application Type |
M=Mux D=Demux |
| ITU channel |
C21=1560.61nm C23=1558.98nm |
| Fiber diameter |
1=Bare Fiber 2=900um Loose tube 3=3mm Cable |
| Fiber Length |
1=1Meter 2=2Meter |
| Connector |
0=None 1=FC/APC |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
