1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module

1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module
1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module 1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module 1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module 1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module

Large Image :  1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: DWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module

Description
Application: FTTH Function: DWDM
Product Name: Fiber Optic DWDM Connector: LC
Wavelength: 1530.33~1560.61 Fiber Length: 1m...customize
Model:: Mux/Demux Keywords: DWDM MUX DEMUX
Channel: 8
High Light:

1530.33nm lc single mode fiber

,

100GHz lc single mode fiber

,

8 channel cwdm mux demux module

8CH 100GHz DWDM Module 8 Channel Mux Demux DWDM Device




Description

DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 200GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application

UT-King’s DWDM technology is an extension of optical networking. DWDM devices (multiplexer, or Mux for short) combine the output from several optical transmitters for transmission across a single optical fiber. At the receiving end, another DWDM device (demultiplexer, or Demux for short) separates the combined optical signals and passes each channel to an optical receiver. Only one optical fiber is used between DWDM devices (per transmission direction). Instead of requiring one optical fiber per transmitter and receiver pair, DWDM allows several optical channels to occupy a single fiber optic cable. As shown below, by adopting high-quality AAWG Gaussian technology, UT-King DWDM Mux/Demux provides low insertion loss (3.5dB typical), and high reliability. With the upgraded structure, these DWDM multiplexers and demultiplexers can offer easier installation.





Features

100GHz ITU Channel Spacing (100GHz ITU)

Low insertion loss

broadband transmission

high channel isolation

High stability and reliability

Epoxy-free optical path





Applications

1. Channel Mux/Demux /

2. DWDM system DWDM

3. Router

4. Fiber optical amplifier

5. CATV system

Specification





Mux Demux
Channel Wavelength (nm) 1530.33~1560.61(21~59 ITU grid)
Central Wavelength Accuracy (nm) ± 0.5
Min Channel Spacing (GHz) 100
Passband (@-0.5dB bandwidth)(nm) >0.22
Insertion Loss(dB) Add/Drop Ch. ≤1.0
Reflective Ch. ≤0.4
Passband Flatness(dB) ≤0.3
Add/Drop channel Isolation(dB) Adjacent Channel N/A ≥25
Non-adjacent Channel N/A ≥35
Reflective Isolation(dB) ≥12
Insertion Loss Temperature (dB/°C ) ≤0.003
Wavelength Temperature Shifting (nm/ °C ) ≤0.002
PDL (dB) ≤0.1
PMD (ps) ≤0.1
Directivity (dB) ≥50
Return Loss (dB) ≥45
Rated power (mW) 500
Operation Temperature (°C) 0 ~ +70
Storage Temperature (°C) -40 ~ +85
Dimension (mm) L100×W80×H10



Ordering Information



SDWDM
Channel Spacing 1=100GHz
Application Type

M=Mux

D=Demux

ITU channel ITU

C21=1560.61nm

C23=1558.98nm

Fiber diameter

1=Bare Fiber

2=900um Loose tube

3=3mm Cable

Fiber Length

1=1Meter

2=2Meter

Connector

0=None

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC





Detailed Images

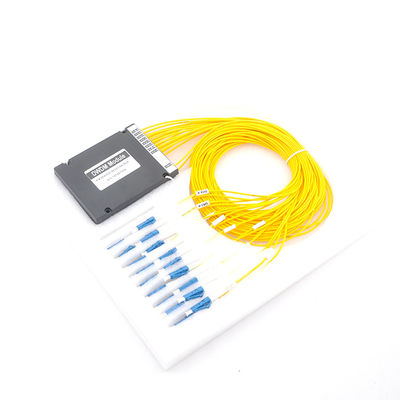

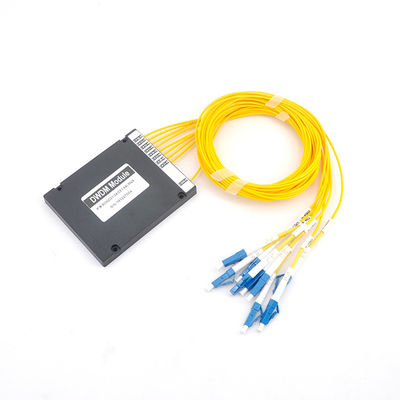

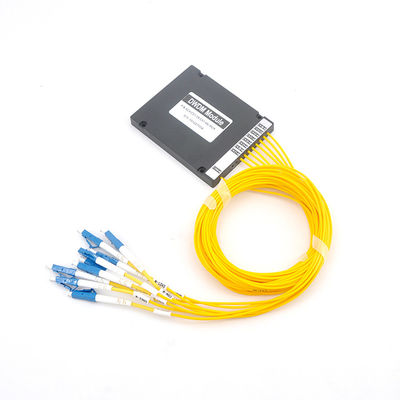

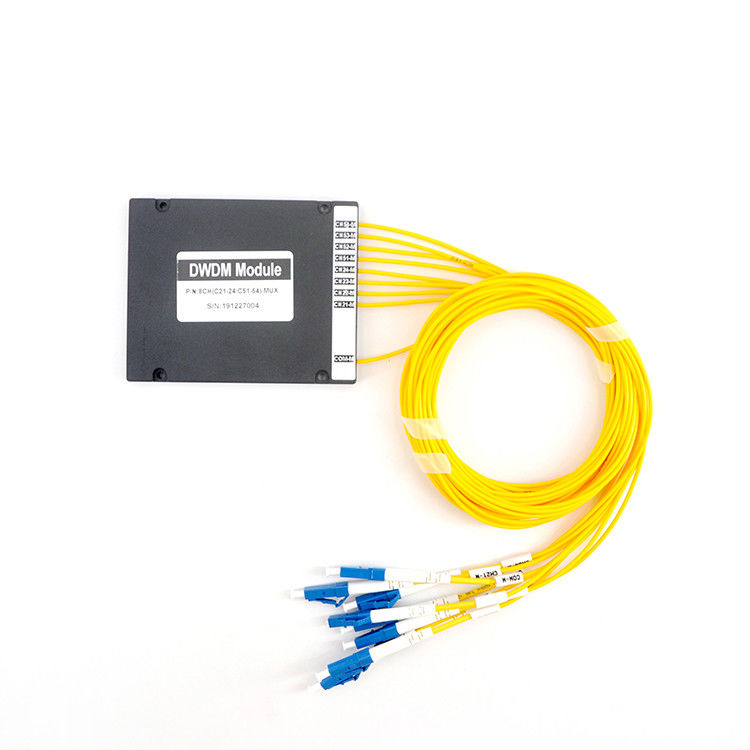

1530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module 01530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module 11530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module 21530.33nm Lc Single Mode Fiber 8 Channel Cwdm Mux Demux Module 3

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
