10GE Main Control Board ZTE ZXA10 C320 With DC Power

Large Image : 10GE Main Control Board ZTE ZXA10 C320 With DC Power

Product Details:

Place of Origin:	Guangdong
Brand Name:	UT-King
Certification:	RoHS, CE, ISO9001
Model Number:	SMXA A31

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	1set/box
Delivery Time:	5-10 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000pcs per week

Contact Now

10GE Main Control Board ZTE ZXA10 C320 With DC Power

Description

Product Name:	ZTE Uplink Board	Encapsulation Type:	GPON OLT
Use:	FTTH	Network:	Wireless Lan, Wired LAN, Wifi
Item:	Control Board	Uplink Type:	10GE
Feature:	New Original	Optical Module:	SFP+
Size:	Standard
High Light:	10GE Main Control Board , Main Control Board ZTE ZXA10 C320 , ZTE ZXA10 C320 With DC Power

C320 10GE Main Control Board SMXA A31 Uplink Board with DC Power ZTE ZXA10 C320

ZTE ZXA10 C320 is a compactly-designed access optical platform with small capacity. This OLT support xPON access and smooth evolution. ZXA10 C320 allows connect up to 4096 ONT/ONU with power consumption less than 200W. ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs

Features

* Unified platform for GPON, XG-PON1and P2P

* Small size and compact design, flexible network and fast deployment

* 2U frame with 2 service slots, compatible with ZXA10 C300 line cards

* Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc

* Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression.

* High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ UAPS/STP/ERPS(G.8032) for uplink

* Service differentiation: Comprehensive QoS mechanisms for voice, video and high-speed Internet services.

* Support DC input redundancy

* Support AC power supply

* Support 1:1 protection for PON interfaces

* Support 1:1 protection for SW (core card) card

Specification:

OLT C320	1G OLT SMXA A11	1G Main Control Board	2*SMXA/1 (control, GE uplink, DC power 3 in 1 card)
	10G OLT SMXA A31	10G Uplink Main Control Board	SMXA/3
		Power Board	DC & AC PRAM board
	Service Board	GPON / EPON 8 ports board + 8modules or GTGH / ETGH 16 ports board + 16modules
	Accessory	2*power cables, RJ-45 first turn 9-pin RS-232 female network cable, RJ-45 network cable

Details of Pictures :

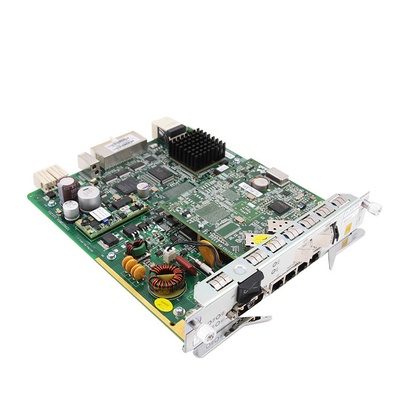

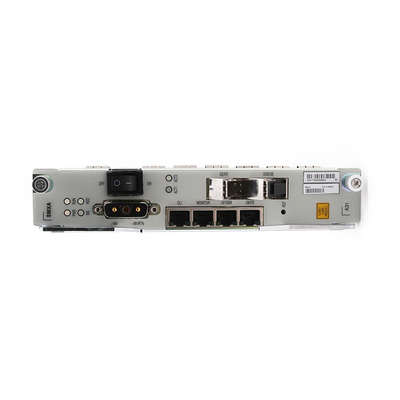

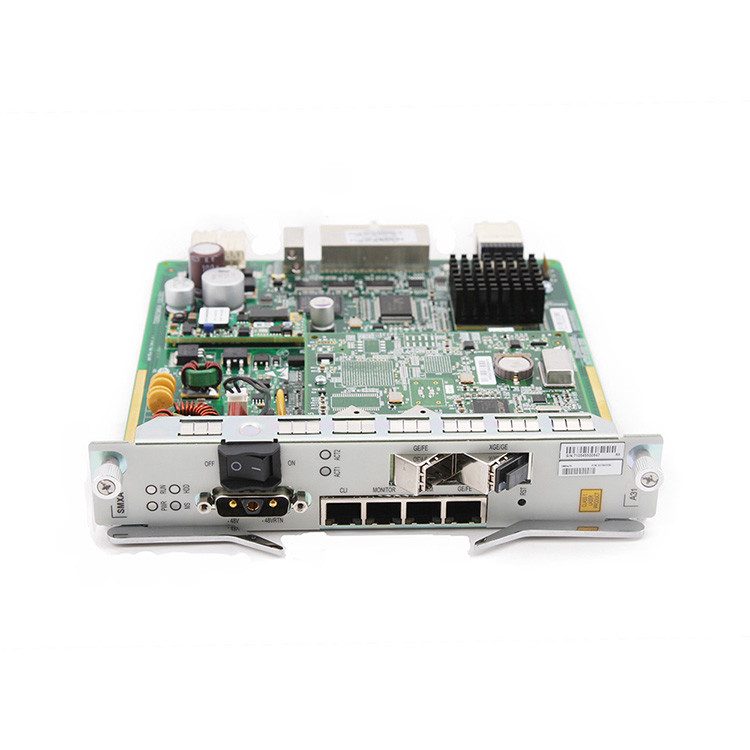

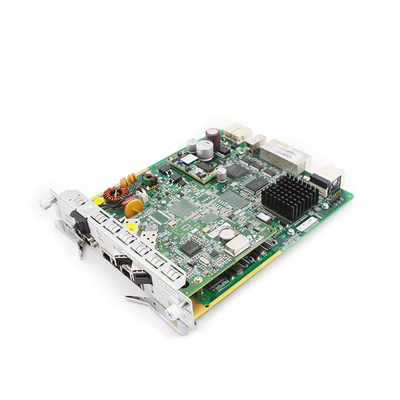

10GE Main Control Board ZTE ZXA10 C320 With DC Power 0
