Product Details:
|
| Product Name: | GPON ONU | Application: | FTTH FTTX |
|---|---|---|---|
| Function: | 4 X GE, 1 X POTS, 1 X USB 2.0, 2.4G/5G WiFi | Operating Temperature: | 0~40°C |
| Operating Humidity: | 5~95% RH (non~condensing) | System Power Supply: | 11~14 V DC, 1.5 A |
| PON Interface: | SC/UPC SC/APC | Applications Distance: | 20km |
| LAN Interface: | 4*10/100/1000Mbps RJ45 Ports | Software: | English Firmware |
| High Light: | FTTH GPON ONU,GPON ONU Routing Type,10G GPON ONT |
||
10G FTTH Optical GPON ONU Routing-Type Optical Network Terminal with 4GE+1POTS+2USB+2.4G/5G Dual GPON ONT
Huawei EG8145X6 10G FTTH is an intelligent Wi-Fi 6 routing-type Optical Network Terminal with 4 GE ports, 1 POTS port, and 1 USB port, and 2.4G and 5G Wi-Fi connectivity, and it adopts Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance — ensuring an exceptional experience for voice, data, and High Definition (HD) video services — as well as future-oriented service support capabilities and visualized network management, OptiXstar EG8145X6 helps enterprises construct powerful all-optical access solutions.
| Brand | Huawei |
| Moodel | EG8145X6 |
| Pon type | GPON |
| Dimensions (H x W x D) | 35 x 195 x 125 mm (without external antenna and pads) |
| Weight | Approximately 372 g |
| Operating Temperature | 0–40°C |
| Operating Humidity | 5–95% RH (non-condensing) |
| Power Adapter Input | 100–240 V AC, 50/60 Hz |
| System Power Supply | 11–14 V DC, 1.5 A |
| Port | 4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6 |
| Maximum Power Consumption | 18 W |
| Antenna | External antenna |
| Installation Mode | Desktop |
| Power Saving | COC V7 |
| POTS Port | Maximum REN: 4 |
| G.711A/μ, G.729a/b, and G.722 encoding/decoding | |
| T.30/T.38/G.711 fax mode | |
| DTMF | |
| Emergency calls (with the SIP protocol) | |
| USB Port | USB 2.0 |
| FTP-based network storage | |
| File/Print sharing based on SAMBA | |
|
DLNA function |

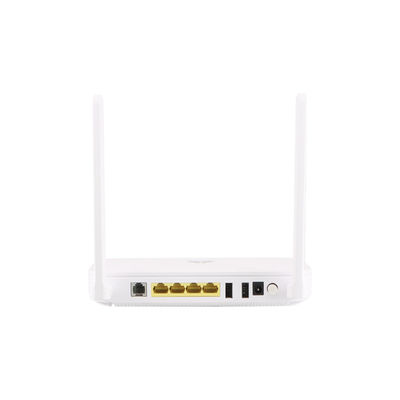

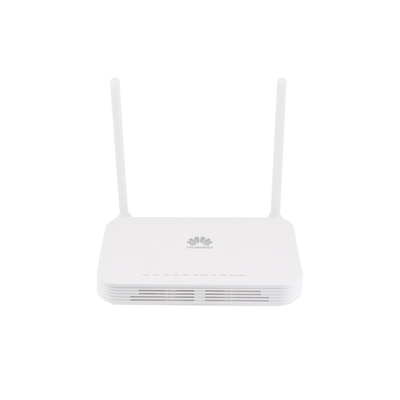

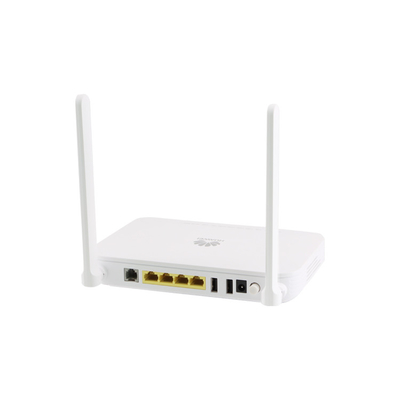

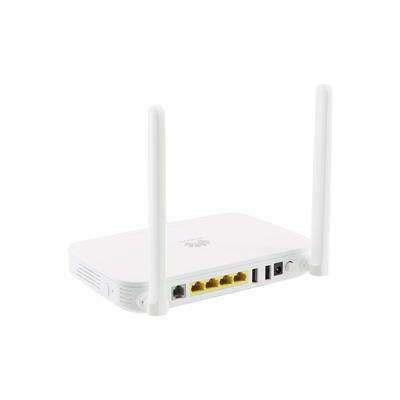

Details of Picture
