Product Details:
|
| Product Name: | Uplink Board | Application: | OLT, FTTH Solutions |
|---|---|---|---|
| Item: | Control Board | Model: | SMXA A31 |
| Power Board: | DC & AC PRAM Board | Optical Module: | SFP+ |
| Uplink Type: | 10GE | Size: | Standard |
| Feature: | New Original | Keywords: | ZTE Service Board Card |
| High Light: | GPON OLT Board Card,10GE FTTH Board Card,SMXA A31 Main Control Board |
||

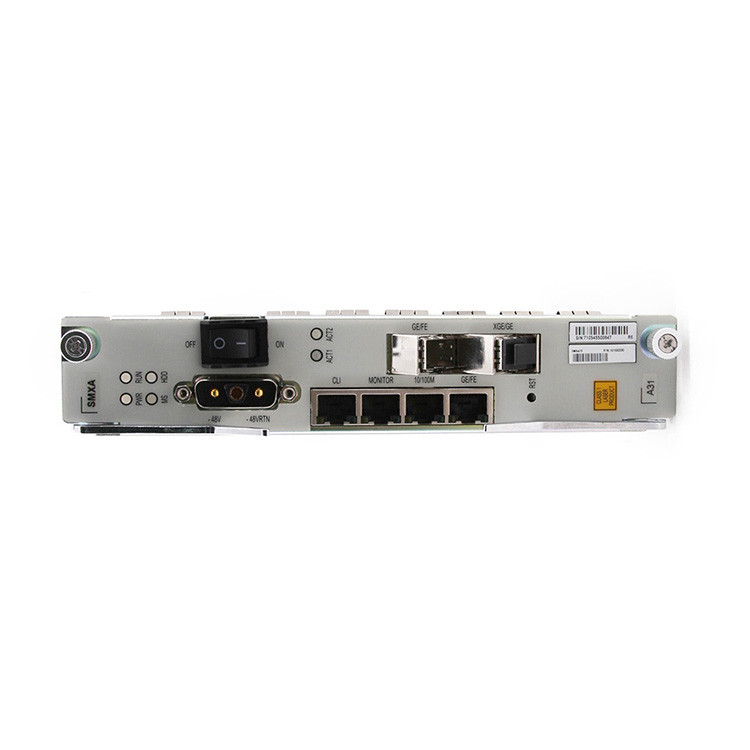

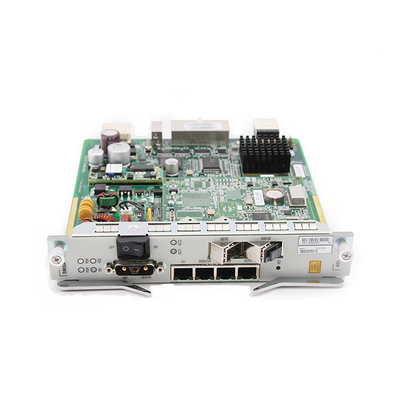

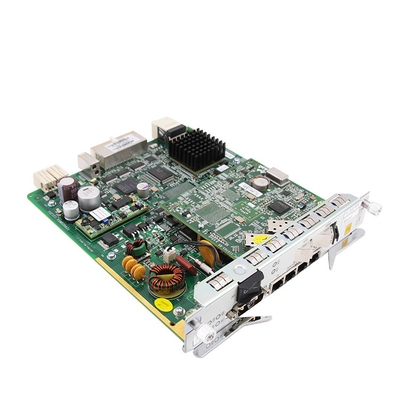

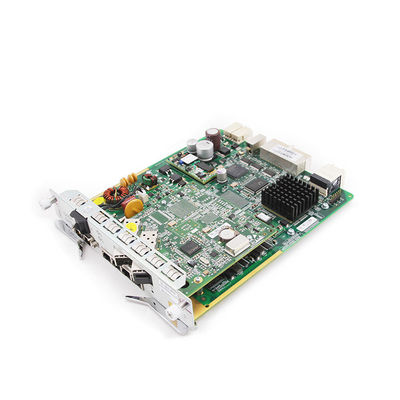

FTTH Optical Line Terminal GPON OLT Service Board Card 10GE Main Control Board SMXA A31 Uplink Board ZXA10
Description:
ZTE ZXA10 C320 is a compactly-designed access optical platform with small capacity. This OLT support xPON access and smooth evolution. ZXA10 C320 allows connect up to 4096 ONT/ONU with power consumption less than 200W. ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
* Unified platform for GPON, XG-PON1and P2P
* Small size and compact design, flexible network and fast deployment
* 2U frame with 2 service slots, compatible with ZXA10 C300 line cards
* Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
* Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression.
* High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ UAPS/STP/ERPS(G.8032) for uplink
* Service differentiation: Comprehensive QoS mechanisms for voice, video and high-speed Internet services.
* Support DC input redundancy
* Support AC power supply
* Support 1:1 protection for PON interfaces
* Support 1:1 protection for SW (core card) card
Specifictaion:
Pictures:
1, Q: What is HUVQ and HUTQ difference?
A: Both HUTQ and HUVQ are the ZTE 2-port 10GE and 2-port GE optical interface Ethernet uplink card but only HUVQ can support SynE and IEEE 1588 TC function.
2, Q: What are the mapping relations between Uplink Card and Switching and Control Card for ZXA10 C300/C350/C320?
A:
| Card Type | Card Name | Switching and Control Card | Slot | ||||
| SCXN | SCTM | SCXM | SCXL | SMXA | |||
| Ethernet uplink card | XUTQ | Χ | √ | Χ | √ | Χ | ZXA10 C300/C350 uplink link card slot |
| XUVQ | Χ | √ | Χ | √ | Χ | ZXA10 C300/C350 uplink link card slot | |
| GUFQ | √ | √ | √ | √ | Χ | ZXA10 C300/C350 uplink link card slot | |
| GUSQ | √ | √ | √ | √ | Χ | ZXA10 C300/C350 uplink link card slot | |
| HUTQ | √ | √ | √ | √ | Χ | ZXA10 C300/C350 uplink link card slot | |
| HUVQ | √ | √ | √ | √ | Χ | ZXA10 C300/C350 uplink link card slot | |
| UCDC/1 | Χ | Χ | Χ | Χ | √ | ZXA10 C320 SMXA daughter card | |
| UCDC/3 | Χ | Χ | Χ | Χ | √ | ZXA10 C320 SMXA daughter card | |
| UCDC/5 | Χ | Χ | Χ | Χ | √ | ZXA10 C320 SMXA daughter card | |
3, Q: What are the ZXA10 C300 Uplink Interfaces included?
A:
| Interface Type | Interface Card | Interface Quantity |
| GE optical interface | GUFQ | 4 |
| GUSQ | 4 | |
| HUVQ | 2 | |
| HUTQ | 2 | |
| 10GE optical interface | XUTQ | 4 |
| XUVQ | 4 | |
| HUVQ | 2 | |
| HUTQ | 2 |
4, Q: Does HUVQ support Ethernet user access and cascading?
A: NO, it does not. It supports SynE and IEEE 1588 TC function.
