ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G

ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G
ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G

Large Image :  ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZTE
Model Number: F670L
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 24-26 per pieces
Packaging Details: 10/20 pcs 1 carton
Delivery Time: 7-14 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs one week
Contact Now

ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G

Description
Product Name: GPON ONU/ONT Material: Plastic
Downlink: 1x10/100/1000Mbps Power Adapter: EU,US,UK,AU
Dimension: 30 Mm X 115 Mm X 94 Mm Color: White
Optical Interface: SC APC/UPC Configuration: 4GE+1POTS+2WIFI
Power Supply: 12V 1.5A WIFI: 2.4G & 5.8G
Firmware: English
High Light:

ZTE F670L Dual Band ONT

,

Dual Band ONT With 4GE

,

GPON ONU With 1POTS

Best price ZTE Dual Band ONT with 4GE+1POTS+2WIFI 2.4G/5.8G F670L GPON ONU


Product Overview:

ZTE ZXHN F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 1GE&3FE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.

Product Feature:

* Flexible Management Mode
The F670L can be managed by two ways: one is complete OMCI complying with ITU-T G.988, the other is OMCI plus TR-069 complying with BBF TR-142 framework. Service providers can choose their preferred ways to manage the device.

* Quality of Service (QoS)
The QoS features of the F670L enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and VoIP freely based on their individual service plans. So, service providers could deliver real multi-play applications to users and increase network efficiency.

* Highly Reliable Feature
Dual-Band concurrent Wi-Fi mode so that its Wi-Fi speed can reach up to 1.2Gbps, consisting of 300Mbps (802.11n 2×2 @ 2.4GHz) and 866Mbps (802.11ac 2×2 @5GHz). The dual image ensures uninterrupted services during software download or upgrade, thereby enhancing software reliability. The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the POTS port, and 1.5 kV for the Ethernet ports.

Product Paramenters
Brand
ZTE
Model
F670L
GPON Port
1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Subscriber interface
4GE+1pots+1USB+WIFI 2.4G &5G
Modes
Bridge, Router, AP
Wavelength downstream
1490nm
Upstream Wavelength
1310nm
Sensitivity
-28 dBm
Consumption
9 W
Dimensions
205 x 120 x 28 mm
Working temperature and humidity
0°C – 40°C, 5% – 95%
Power
12 IN DC
GPON properties
8x T-CONT, 32 GEM ports
Support
VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management
Local (WEB), OMCI, TR069

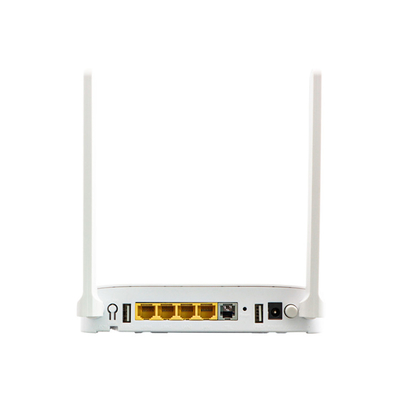

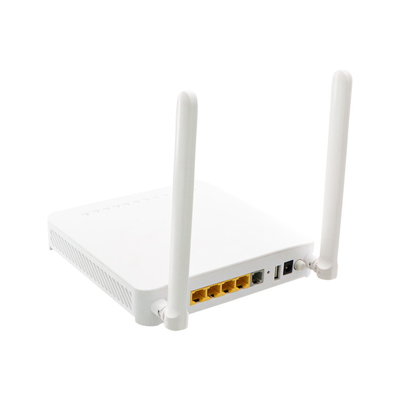

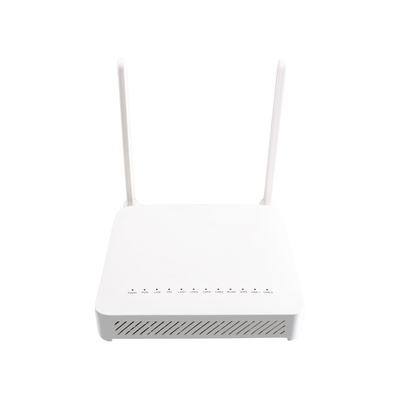

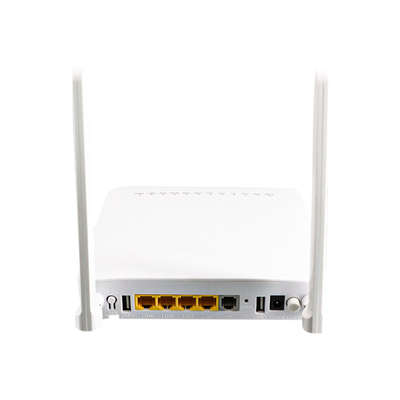

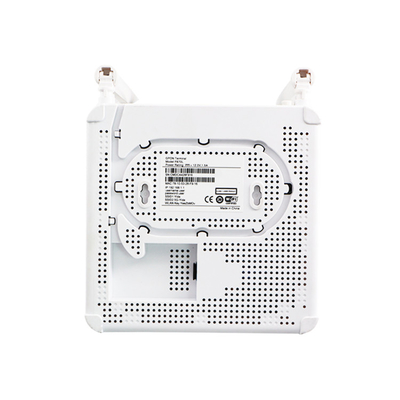

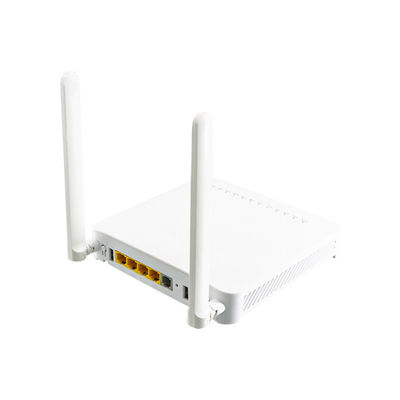

Detail image

ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G 0ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G 1ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G 2ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G 3ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G 4ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G 5





Tag:

3FE GPON ONU,

1490nm ftth gpon epon onu,

1490nm GPON ONU
