Product Details:
|
| Product Name: | Huawei OLT | Model: | MA5608T |
|---|---|---|---|
| Power Supply Parameters: | -48V DC Input | Working Voltage Range: | -38.4V~-72V |
| Backplane Exchange Capacity: | 720Gbit/s | Control Board Exchange Capacity: | 512Gbit/s |
| Temperature: | -40℃~+65℃ | Humidity: | 5%~95% (non-condensing) |
| Weight: | 442*233.5*88mm | Keywords: | Huawei Gpon OLT |
| High Light: | GPON OLT With GPFD Service Card,GPON OLT With GPBD Service Card,SmartAX MA5608T GPON Optical Line Terminal |
||
Original Price for SmartAX MA5608T OLT 10GPON Uplink with GPFD GPBD GPBH Service Card MCUD1 /MUCD main control card
Huawei SmartAX MA5608T OLT is one of telecom operator-class Gigabit Passive Optical Network (GPON/EPON) Optical Line Terminal for large-scale aggregation and access networking.
This is the world first OLT which integrates the functionality of the aggregation switch and edge router. It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line service for business customers& mobile backhaul with high reliability and high precision clock, and high-density GE/10GE interfaces for cascading remote access equipment. HuaweiMA5600T support to simplify network architecture, to improve network reliability and lower TCO essentially
It is usually equipped with GPFD GPBDGPBH service card MCUD1 /MUCD main control card AC or DC power module. ( There are B+ and C+ SFP for service card. C+ SFP cover B+ SFP)
Feature:
Smooth Evolution:
10GPON uplink can be supported in two years
MA5608T can support Board Level Vectoring and System Level Vectoring in two years
Just insert GPON board, MA5603T&MA5608T can be used as OLT
All Service Access:
Support E1 and G.SHDSL for enterprise leased line or PBX access
IPTV can be launched for all users, up to 4k channels
H-QoS support 5-level QoS guaranteeing SLA
Green Design:
Fully meet the CoC v4 power-conservation requirement of the European Commission
Short-loop design of POTS card, 20% power consumption reduced
Third generation chipsets, support the dynamic energy-saving, 30% energy saving of xDSL
Specification:
| Model No. | MA5680T | MA5683T | MA5608T |
| Dimension: | 490*275.8*447.2mm | 442*283.2*263mm | 442*233.5*88mm |
| Operating Environment | Temperature: -25℃~+55℃ Humidity:5%~95% (non-condensing) | Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing) | Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing) |
| Power Supply Parameters | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input |
| Backplane Exchange capacity | 3.2Tbit/s | 1.5Tbit/s | 720Gbit/s |
| Control Board Exchange Capacity | 1920 Gbit/s | 960Gbit/s | 512Gbit/s |
| Access Capacity | 128*10G EPON 64*10G GPON 128*EPON 256*GPON 768*GE | 48*10G EPON 24*10G GPON 48*EPON 96*GPON 288*GE | 16*10G EPON 8*10G GPON 16*EPON 32*GPON 96*GE |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface | ||

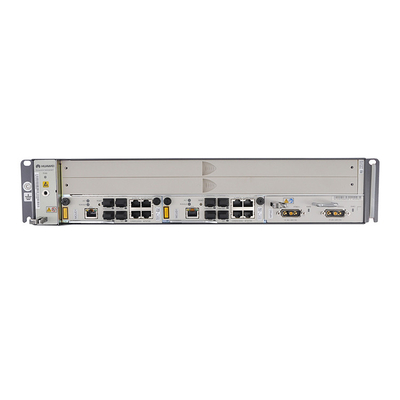

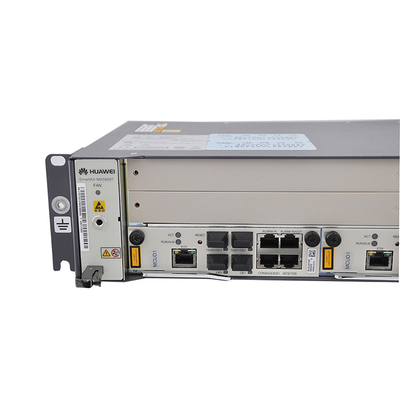

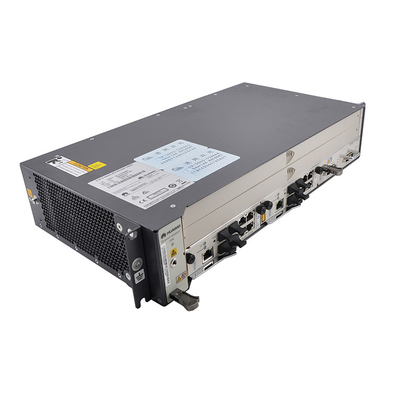

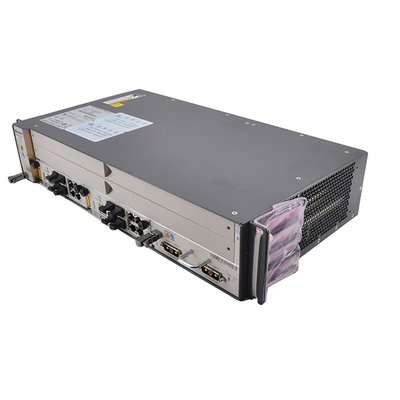

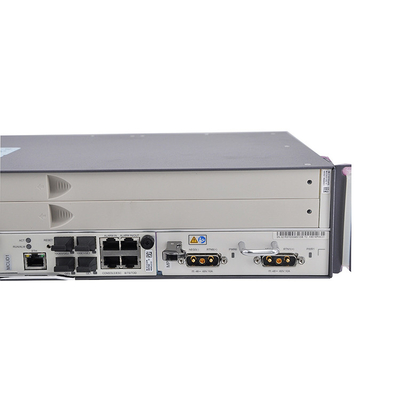

Picture :
About Us:
Shenzhen UT-King Technology Co., Ltd which was founded in the year 2010 is a professional Hi-tech company in fiber optic communication industry. We specialize in researching, developing, manufacturing and selling a wide range of highly competitive fiber optic products and accessories for telecommunication, broadcast, CATV and network worldwide.
Now, UT-King has more than 200 employees. Our main products are PLC splitters, Fast connectors, Patch cords, MPO/MTP products, adaptors, WDM system, Fiber cables, and Fiber managements. With the development of the business, UT-King has expanded its business to fiber active products in the year 2015. We have our own R&D team for EPON/GPON system. With their excellent technical strength, now we have full range of EPON/GPON/XPON OLT and ONU. What’s more, we also have big advantages on SFP modules, such as 10G SFP+, 40G QSFP28 and 100G CFP and 100G QSFP28.
All of our optical products are RoHS compliant and we also obtained ISO9001, ISO14001 certification. Rich experiences in massive Cproduction of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years Cfrom customers around the earth for its excellent quality, fast delivery, and timely after-services. We wish to create better future of optical communication industry jointly with both new and existing customers.
