HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G

HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G
HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G

Large Image :  HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G

Product Details:
Place of Origin: Guangdong, China
Brand Name: UT-King
Model Number: EG8145V5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 30-35 per pieces
Packaging Details: 10/20 pcs 1 carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs one week

HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G

Description
Product Name: GPON ONU/ONT Material: Plastic
Downlink: 1x10/100/1000Mbps Power Adapter: EU,US,UK,AU
WIFI: 2.4G&5.8G Color: White
Optical Interface: SC/UPC Configuration: 4GE+1POTS+2WIFI
Power Supply: DC 12V/1.5A
High Light:

2.4G HUAWEI ONT EG8145V5

,

5.8G HUAWEI ONT EG8145V5

,

HUAWEI EG8145V5 GPON ONU

2022 Brand new original HUAWEI EG8145V5 with 4GE+1POTS+WIFI(2.4G&5.8G) GPON ONT



Huawei EG8145V5 FTTH Product Overview

Huawei EG8145V5 FTTH is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. It provides 4 GE+1 POTS+1 USB+2 WiFi(4 GE ports, 1 POTS port, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Huawei EG8145V5 FTTH Datasheet

Brand Huawei
Model EG8145V5
Type Routing
Dimensions (H x W x D) 173 mm x 120 mm x 30 mm (without antenna and pads)
Operating Temperature 0°C to 40°C
Operating Humidity 5% RH to 95% RH (non-condensing)
Power Adapter Input 100V to 240V AC, 50 Hz/60 Hz
System Power Supply 11V to 14V DC, 2A
Network-side Ports GPON
User-side Ports 1 POTS + 4 GE + Wi-Fi + USB
Indicators POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS

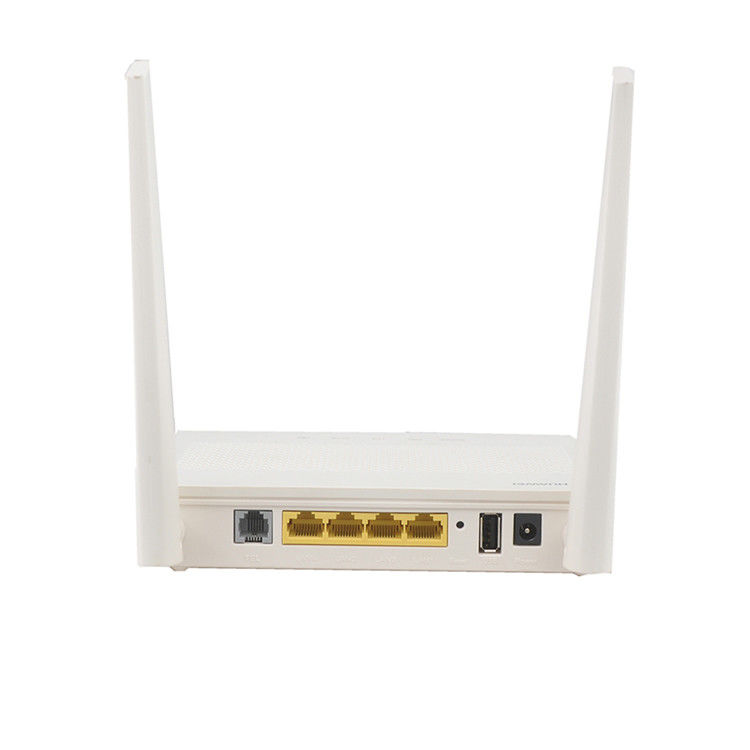

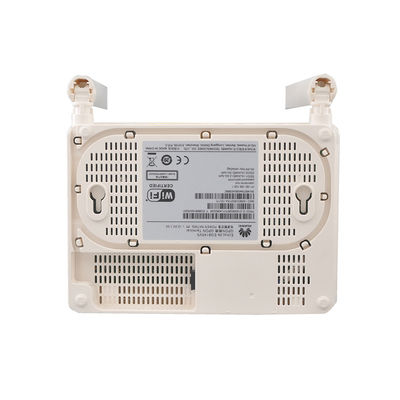

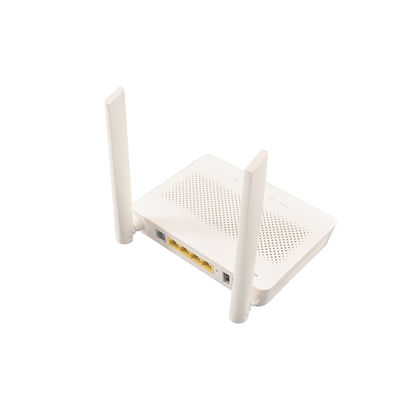

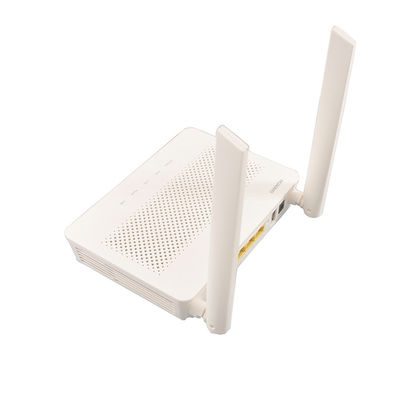

Detail image

HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G 0HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G 1HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G 2

HUAWEI EG8145V5 GPON ONT With 4GE + 1POTS + WIFI 2.4G / 5.8G 3
