FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI

FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI
FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI

Large Image :  FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI

Product Details:
Place of Origin: Guangdong, China
Model Number: HS8545M5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 14-17 per pieces
Packaging Details: 10/20 pcs 1 carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs one week
Contact Now

FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI

Description
Product Name: GPON ONU/ONT Material: Plastic
Downlink: 1x10/100/1000Mbps Power Adapter: EU,US,UK,AU
WIFI: 2.4G Color: White
Optical Interface: SC/UPC Configuration: 1GE+3FE+1POTS+1USB+2.4G WiFi
Power Supply: DC 12V/1.5A
High Light:

Huawei FTTH GPON ONU

,

Huawei HS8545M5 GPON ONU

,

2.4G WIFI GPON ONU

Original cheap price FTTH Gpon ONT with 1GE+3FE+1TELE+1USB+WIFI Huawei HS8545M5 GPON ONU



FTTH Product Overview

Huawei HS8545M5 FTTH is a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. Huawei HS8545M5 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Huawei HS8545M5 FTTH gives a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.


Product Features

* Fully compatible with ITU-T G.984.
* Integrated OMCI remote configuration and maintenance function.
* Support port-based rate limitation and bandwidth control
* Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
* Support Dynamic Bandwidth Allocation (DBA)
* Support ONT auto-discovery/Link detection/remote upgrade of software;
* Support VLAN division and user separation to avoid the broadcast storm;
* Support power-off alarm function, easy for link problem detection
* Support broadcasting storm resistance function



FTTH Datasheet

Brand
Huawei
Model
Huawei HS8545M5
Power supply
12V,1.5A
Port
1GE 3 FE I USB 1POT
WiFi
YES
Power consumption
≤15W
(full loaded)
Outline dimensions
240*160*35mm
(mm) (W*D*H)
Weight (in maximum
≤0.5kg
configuration)
WIFI



Antenna
2×2, 5dBi external antenna


EIRP
Max 25dBm
VoIP
REN
Max 5REN
Connector
1x RJ11
Ringing
65V RMS ringing voltage
USB
Max 1A for each port
Environmental requirements
Working temperature:0ºC~50ºC
Storage temperature:-40ºC~70ºC
Working humidity:5%~90% Storage temperature:5%~95% no condensing

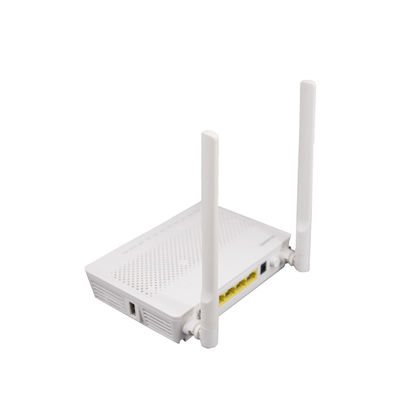

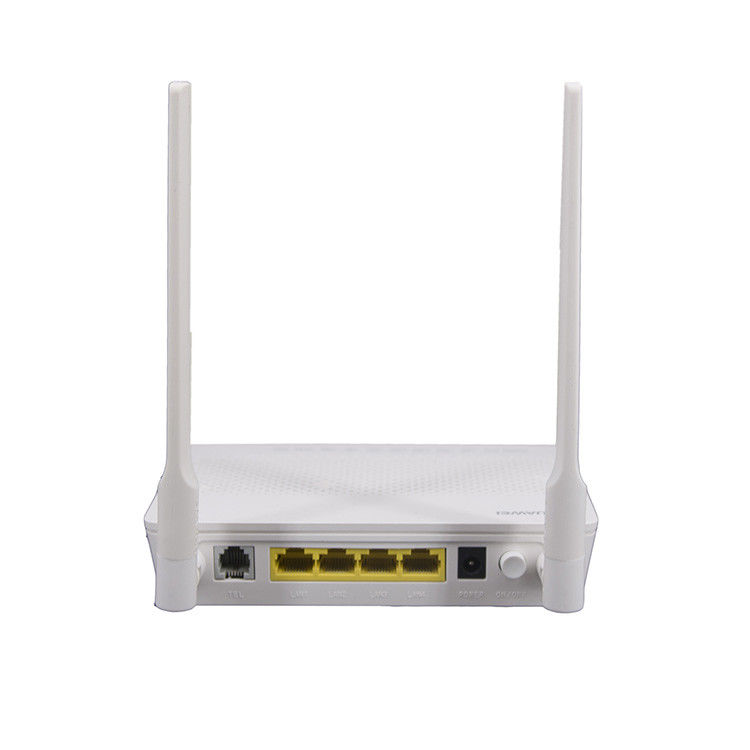

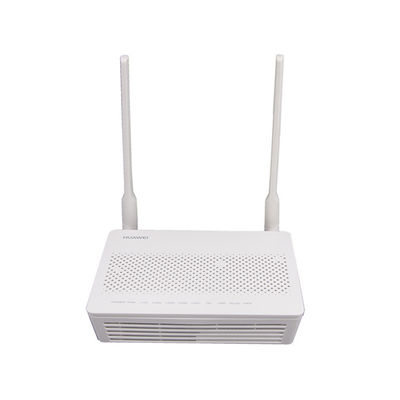

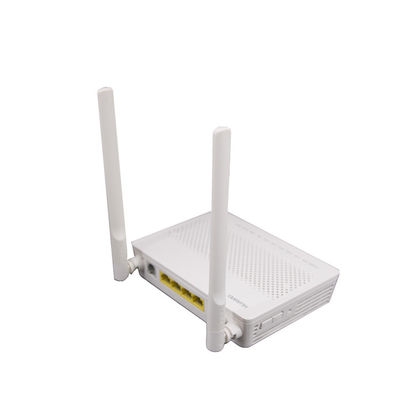

Detail image

FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI 0FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI 1FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI 2FTTH Huawei HS8545M5 GPON ONU With 1GE + 3FE + 1TELE + 1USB + WIFI 3
