Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV

Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV
Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV

Large Image :  Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV

Product Details:
Place of Origin: Guangdong, China
Model Number: HG8247H5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 30-35 per pieces
Packaging Details: 10/20 pcs 1 carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000pcs one week
Contact Now

Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV

Description
Product Name: GPON ONU/ONT Material: Plastic
Downlink: 1x10/100/1000Mbps Power Adapter: EU,US,UK,AU
WIFI: 2.4G Color: White
Optical Interface: SC/APC Configuration: 1POTS + 4GE + CATV + 2.4GWiFi + 1USB
Power Supply: DC 12V/1.5A
High Light:

Optical Terminal Unit GPON ONT

,

Huawei HG8247H5 GPON ONT

,

Huawei HG8247H5 Optical Terminal Unit

Optical terminal Unit 4GE + 1VOICE + WIFI + CATV firmware SIP Huawei HG8247H5 GPON ONT



FTTH Product Overview

Huawei HG8247H5 FTTH provides four GE ports, one POTS ports, one CATV port, one USB port, and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services. These features make the EG8247H5 a perfect option for broadband access.


Product Feature
* Supports configuring the global profile and issuing the XML configuration file on the NMS. To provision ONT services in batches and adjust the network, only a few changes are required.

* Supports user-defined upgrade policies configured through the NMS. The device is automatically upgraded after being powered on and no manual operation is required.

* Supports remote performance management of the HG8247 through the NMS. By collecting. the performance data, the network performance exception can be monitored in real-time.

* Supports remote fault locating of the HG8247 through the NMS. Through alarm reporting and remote loopback diagnosis, the fault can be located remotely, which decreases the maintenance cost.



FTTH Datasheet

Brand
Huawei
Model
HG8247H5
Type
Routing
Dimensions (H x W x D)
199 mm x 135 mm x 30 mm (without antenna and pads)
Operating Temperature
0°C to 40°C
Operating Humidity
5% RH to 95% RH (non-condensing)
Power Adapter Input
100V to 240V AC, 50 Hz/60 Hz
System Power Supply
11V to 14V DC, 1A
Network-Side Ports
GPON
User-Side Ports
1POTS + 4 GE + CATV + 2.4G Wi-Fi + 1 USB
Indicators
POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS

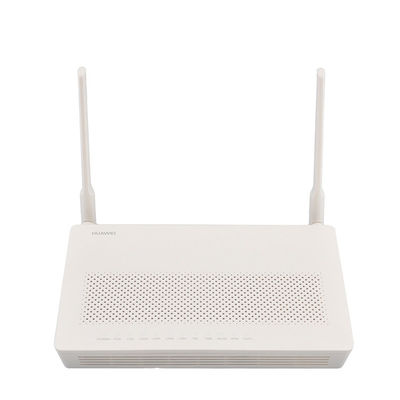

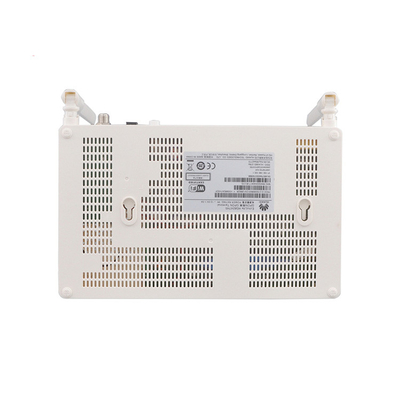

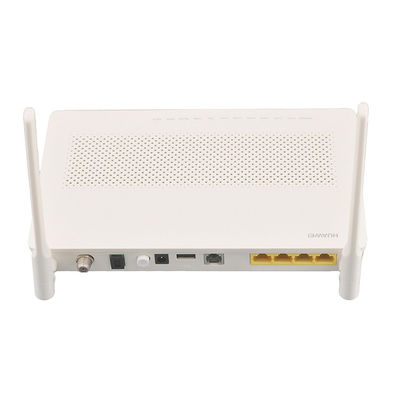

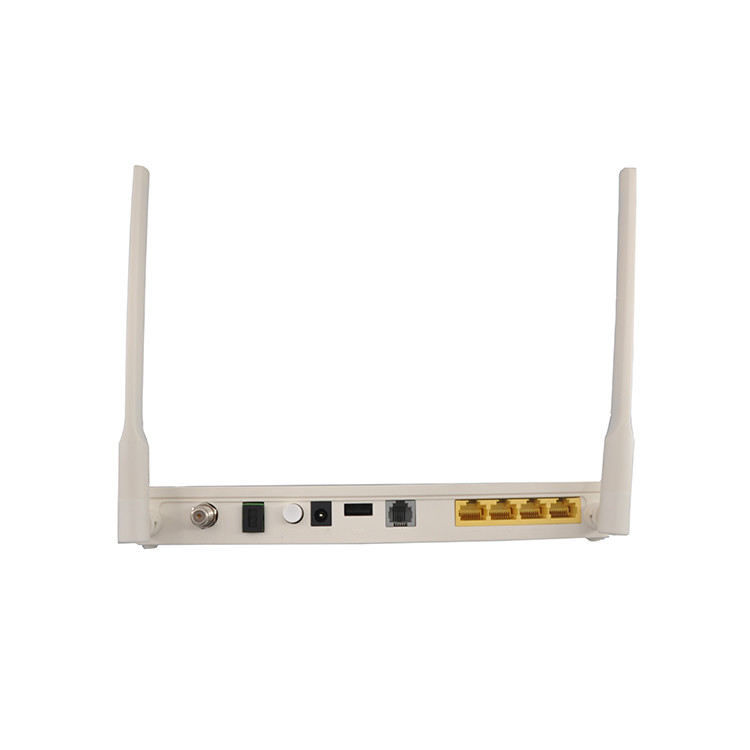

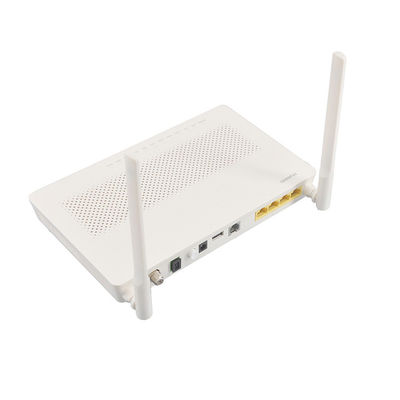

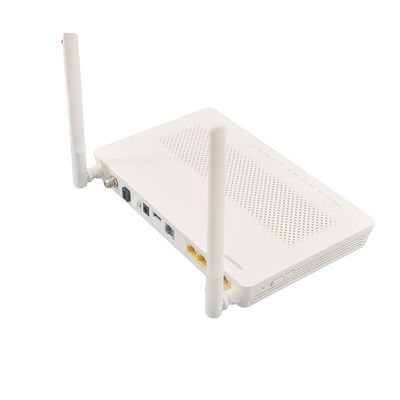

Detail image

Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV 0Optical Terminal Unit Huawei HG8247H5 GPON ONT 4GE + 1VOICE + WIFI + CATV 1
