ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware

ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware
ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware

Large Image :  ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware

Product Details:
Place of Origin: Guangdong, China
Model Number: F660 V8.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 13-15 per pieces
Packaging Details: 10/20 pcs 1 carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs one week
Contact Now

ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware

Description
Product Name: GPON ONU/ONT Material: Plastic
Downlink: 1x10/100/1000Mbps Power Adapter: EU,US,UK,AU
WIFI: 2.4G Color: White
Optical Interface: SC/UPC Configuration: 1GE+3FE+1POTS+1USB+2.4G WiFi
Power Supply: DC 12V/1.5A
High Light:

ZTE F660 V8.0 GPON ONU

,

English Firmware GPON ONU

,

2.4G WiFi ZTE GPON ONU

The best ZTE ONT 1GE + 3FE + 1POTS + WIFI + 1USB ports English Firmware F660 V8.0 GPON ONU



FTTH Product Overview

ZTE F660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.

Product Feature:

* Ultra-wide: one deployment, continuous upgrade of network capacity
Each PON port of the POL network has a bandwidth of up to 10G. When there is a higher bandwidth requirement, the optical fiber does not need to be replaced, only the equipment or optical modules at both ends need to be replaced, simplifying the upgrade steps and saving upgrade costs.

* Simplified: energy saving and land saving, simple operation and maintenance
The POL solution can reduce the computer room by about 80% and can achieve energy savings of up to 60%.

* The POL network has a simple hierarchy, which is convenient for maintenance and management, reduces failure points, and improves network reliability. Network operation and maintenance expenses can be reduced by more than 60%.

* Convergence: One optical fiber carries all services
A set of POL network can provide 1000M Ethernet port, POTS, CATV, Wi-Fi, RS232/485 serial port, PoE port, time synchronization interface, etc. There is no need to establish multiple sets of networks to carry multiple services.

* Security: Provide multiple security protection mechanisms
The POL network effectively avoids electromagnetic interference, electromagnetic leakage and other problems, and supports AES128 encryption to ensure the safety of data optical fiber transmission.

* POL equipment supports MAC binding, 802.1x authentication, user isolation, etc., broadcast suppression, and anti-DOS attacks effectively prevent illegal user access and other user attacks.



FTTH Datasheet

Brand
ZTE
Model
F660V8.0
Optical port
1 x GPON interface
Transmission Distance
0-20KM
Transmit rate
2.488Gbps downstream; 1.244Gbps upstream
User-Network Interface
1GE +3FE port
1 x Wi-Fi interface
1 x USB host interface
1 x POTS interfaces
Wavelength
Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
Receiving Sensitivity
-28dBm
Transmitting Optical Power
0.5~5dBm
Power consumption
<10W
Dimensions
220mm(W) x 44mm(H) x 160mm(D)
Working temperature:
0oC ~ 40oC
Working humidity
5% ~ 95%
Weight
380G
Power supply
12V DC

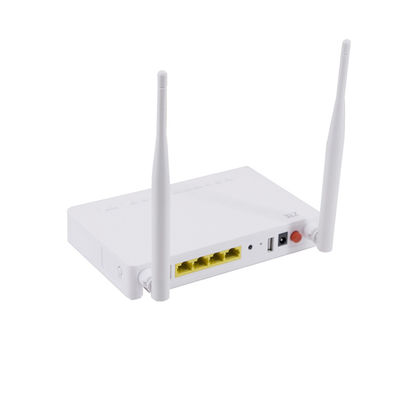

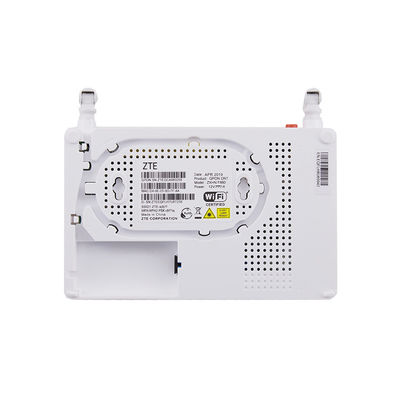

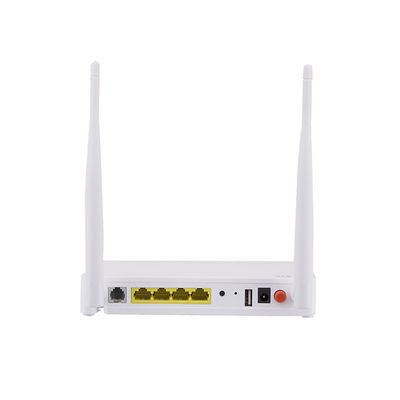

Detail image

ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware 0ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware 1ZTE F660 V8.0 GPON ONU 1GE + 3FE + 1POTS + WIFI + 1USB Ports English Firmware 2
