Small Optical Fiber 1 / 10G Uplink 16 Port GPON OLT ZTE ZXA10 C320

Large Image : Small Optical Fiber 1 / 10G Uplink 16 Port GPON OLT ZTE ZXA10 C320

Product Details:

Place of Origin:	Guangdong, China
Model Number:	C320

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD 1580-1850 per pieces
Packaging Details:	1 pcs 1 carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100pcs one week

Contact Now

Small Optical Fiber 1 / 10G Uplink 16 Port GPON OLT ZTE ZXA10 C320

Description

Product Name:	ZTE C320 GPON OLT	Control Board:	SMXA1 SMXA3
PON Card:	GTGO GTXO GTGH ETGO ETGH	Power Adapter:	EU,US,UK,AU
Service Board Amount:	2 Slots	Power:	-48V/-60V DC / 110/220V AC
Optical Interface:	SC/UPC	Dimension:	86.1 Mm (height) X 482.6 Mm (width) X 270 Mm (depth)
High Light:	Optical Fiber GPON OLT , 16 Port GPON OLT , ZTE C320 GPON OLT

Small Optical Fiber OLT 1/10G Uplink 16 Port GPON OLT ZTE ZXA10 C320 OLT

ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS andsecurity reliability.

Meanwhile ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS
andreliable network to meet the requirements for small-scale implementation of FTTx services.

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts Nlarge-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.

Product Paramenters

			Physical dimension

			86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)

			Power supply

			-48V/-60v dual-channel DC, 220V AC +48V backup power

			Cabinet

			Outdoor/building: EC90EB/EC70E indoor and outdoor integrated cabinets

			Dedicated machine room: indoor 19-inch standard cabinet

			Main control switch board

			Panel interface: 1*10GE or GE (optical)+1*GE or FE (optical)+1*GE/FE (electric) +1*maintenance serial port+1*management network

			port+1*environmental monitoring interface

			SMXA

			Ethernet uplink: maximum support 2*10GE+4*GE or 6*GE

			Typical business line card

			ETGO(8*EPON)/GTGO(8*GPON)；ETGH(16*EPON)/GTGH(16*GPON)

			(2 slots)

			FTGK(24/48*P2P) ETTO(8*10G-EPON)/GTXO(8*XG-PON1)

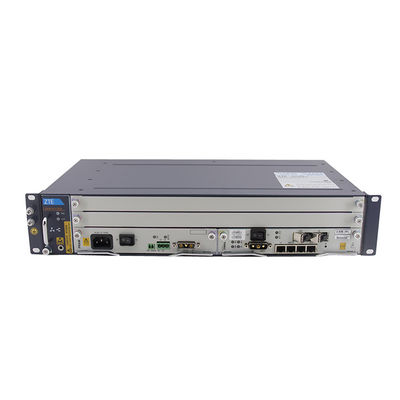

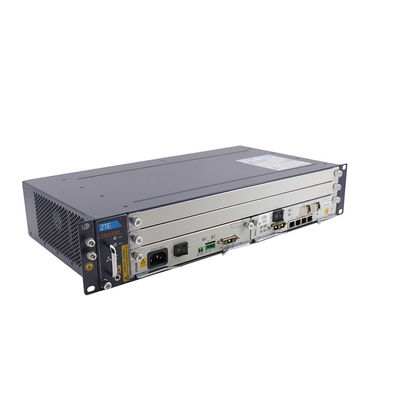

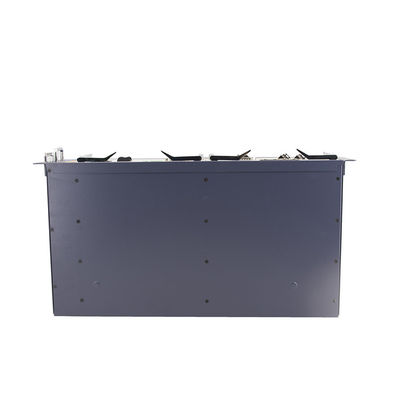

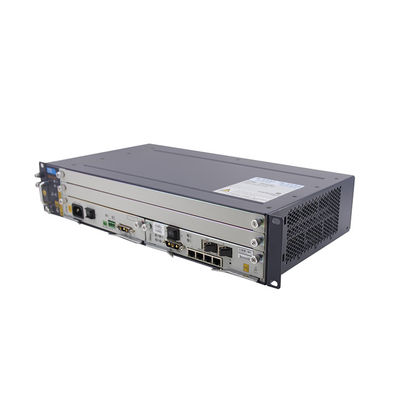

Details Images
