Optical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLT

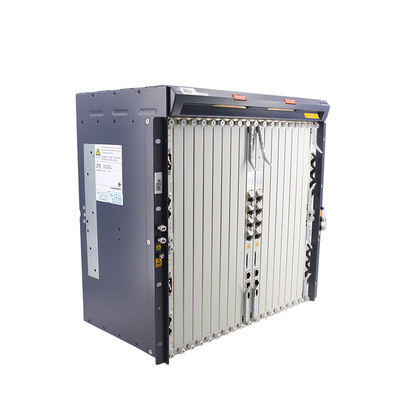

Large Image : Optical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLT

Product Details:

Place of Origin:	Guangdong, China
Model Number:	C300

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD 1200-1800 per pieces
Packaging Details:	1 pcs 1 carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100pcs one week

Contact Now

Optical Access Platform Dual 10G Uplink Card ZTE ZXA10 C300 OLT

Description

Product Name:	ZTE C300 GPON OLT	Control Board:	SCXN/SCTM
PON Card:	GTGO GTXO GTGH ETGO ETGH	Power Adapter:	EU,US,UK,AU
Service Board Amount:	14 Slots	Power:	-48V/-60V DC / 110/220V AC
Optical Interface:	SC/UPC	Dimension:	10U (443.7 X 482.6 X 270 Mm)
High Light:	10G Olt Zte C300 , ZTE C300 GPON OLT , ZTE ZXA10 C300 OLT

Brand new original Large Capacity Optical Access Platform dual 10G Uplink card ZTE ZXA10 C300 OLT

ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance make.

ZTE ZXA10 C300 OLT is an optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands. ZXA10 C300 won the InfoVision Green Broadband Award at Broadband World Forum Europe (BBWF Europe) in 2010.

Product Features

* Unified platform for GPON/XGPON1 and P2P

* Large capacity and high density: meet operators’ requirements for mass optical access roll-out

* Future-proof: support NG-PON, like XGPON1, TWDM PON

* Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc

* Diverse interfaces: P2MP, P2P and TDM interfaces can also be provided for business and residential application

* Enhanced multicast function: meets mass IPTV roll-out

* Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and

broadcast packet limitation.

* Service differentiation: Comprehensive QoS mechanisms for voice, video and high-speed Internet services.

* High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/STP/UAPS/ERPS for uplink

* Support 1588V2 and Synchronous Ethernet

* Support embedded OTDR in SFP

Product Paramenters

			Backplane capacity:

			5,76 Tbit/s

			Switching capacity

			800 Gbit/s

			Number of service cards

			14 (GPON/P2P/XG-PON1)

			Number of control cards

			2

			Number of power supply cards

			2

			Number of uplink cards

			2 (10GE/GE/FE/E1/T1)

			Maximum number of GPON subscribers

			16384

			Management Interfaces

			CLI, SSH, SNMP, telnet

			Dimensions

			10U (443,7 x 482,6 x 270 mm)

			Power

			-48 V (DC)

			Working temperature and humidity

			-25°C – +55°C, 5% – 95%

			Split Ratio

			up to 1:256

			Range

			20-60 km

			Maximum attenuation

			SFP B+ 28 dB, SFP C+ 32 dB

			Dynamic Bandwidth Allocation

			NSR-DBA, SR-DBA

			Support

			FEC, AES128, SCB, OLS

			Routing

			Static IPV4 a IPV6

			Multicast

			IGMP Snooping/Proxy/SPR a MLD Snooping/Proxy, 256 multicast VLAN, CAC, PRV, CDR

			QoS

			8 queues/port, SP, DWRR, DSPC (re)mark, CIR, PIR, EIR

			Security features

			L2-L4 ACL, IP a MAC source guard, DOS protection, MAC/IP anti-spoofing, Anti-flooding, DHCP 82

			Features

			VLAN, SVLAN, QinQ, VLAN Stacking, STP/RSTP/MSTP, DHCP Server, DHCP Relay, DHCP Proxy, IPv4/IPv6 dual stack

			Control and switching cards

			SCTM – Suitable for XGPON1, supports 16 port GPON cards,higher switching power, 4x 10GE uplink interface, 2x management interface

			SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface

			SCXL – No uplink interfaces, 2x management interface

			GPON cards

			GTXO – 4/8 XGPON1 ports, split ratio up to 1:256

			GTGO – 8 GPON ports, split ratio up to 1:256

			GTGH – 16 GPON ports, split ratio up to 1:128

			FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibers for uplink / downlink)

			Uplink cards

			GUFQ – 4x SFP (GE)

			GUSQ – 2x SFP (GE), 2x RJ45 (GE)

			XUTQ – 4x SFP (10GE)

			HUTQ – 4x SFP (2x10GE, 2xGE)

			HUVQ – 4x SFP (2x10GE/GE, 2xGE/FE)

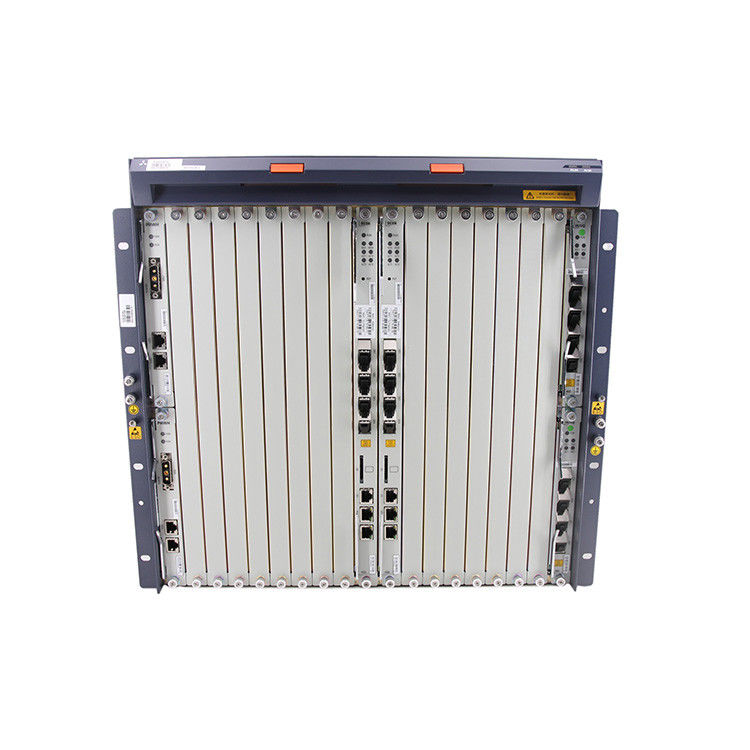

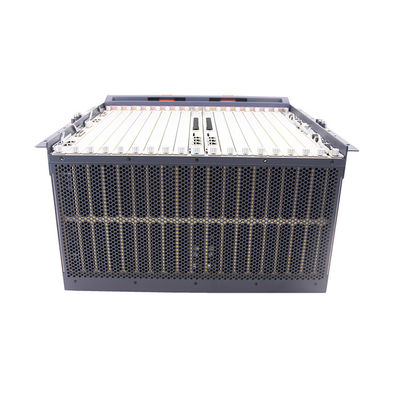

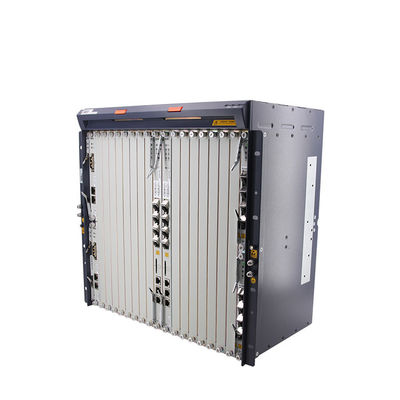

Details Images
