ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT

ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT
ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT

Large Image :  ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZTE
Model Number: F663NV3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 13-17 per pieces
Packaging Details: 10/20 pcs 1 carton
Delivery Time: 5-12 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs one week
Contact Now

ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT

Description
Product Name: GPON ONU/ONT Material: Plastic
Power Adapter: EU,US,UK,AU Color: White
Optical Interface: SC UPC Configuration: 2GE+2FE LAN Port + 2.4G WIFI
Power Supply: 12V 1A WIFI: No
Firmware: English
High Light:

ZTE F663NV3A ONU

,

2.4G ZTE GPON ONT

,

F663NV3A ZTE GPON ONT

ZTE F663NV3A ONU with 2GE 2FE 2.4G WIFI English Firmware GPON ONT


Product Features
ZTE ZXHN F663NV3a FTTH is a single-frequency and economical smart gateway specially built by ZTE for China Mobile. This model uses the new-generation self-developed chip, loads the intelligent operating system, and supports dynamic loading of plug-ins, and givess users with abundant home services. The stable wireless performance provides smooth Wi-Fi for the home. Its unique open application platform creates an operator-dominated and user-centered smart home application ecosystem.

Product Feature:
* highly reliable heat dissipation design guarantees its stable operation.
* dual image ensures uninterrupted services during software downloading or upgrading, thereby enhancing software reliability
* highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the
Phone interfaces, and 1.5 kV for the Ethernet ports.
* full-service access capability featuring high bandwidth, high performance, high reliability, and easy operation, administration and maintenance (OMCI/TR-069) meets the continuously changing requirements of the customer, protects the legacy investment, and enhances the value of the operator’s network.
Product Paramenters
Technical items
Descriptions
Brand
ZTE
Model
ZXHN F663NV3a
Fiber interface
SC/UPC
Fiber port
1 GPON interface, 2GE+2FE LAN port + 2.4G WIFI, SC single-mode,
Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength
Tx 1310nm, Rx 1490nm
Voice protocol
SIP, H.248
RX sensitivity
<-27dBm (1490nm)
WLAN
IEEE802.11b/g/n,2*2 MIMO, 2.4G WIFI,external antenna
Net weight
≤0.6Kg
Configuration method
NMS, Web, or TR069
Power
≤8W
DC power
Adapter input: 100-240 V AC, 50 – 60 Hz ;
Adapter output: 11 – 14 V DC, 1 A
Button
Reset, power
Operation
Working temperature: -0-+40℃
working humidity:5-95%(non-condensation)
Dimension
250*220*65mm(length*width*height)
L2 forwarding capability
Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
LAN
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface

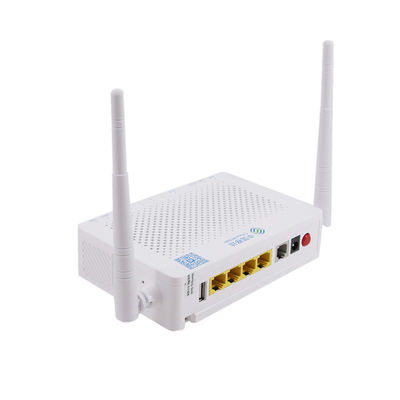

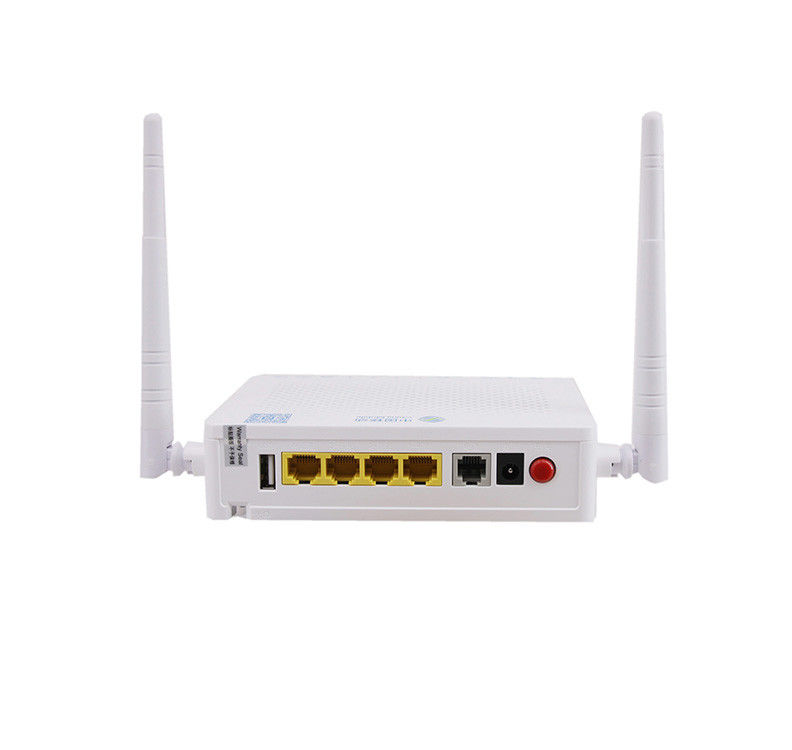

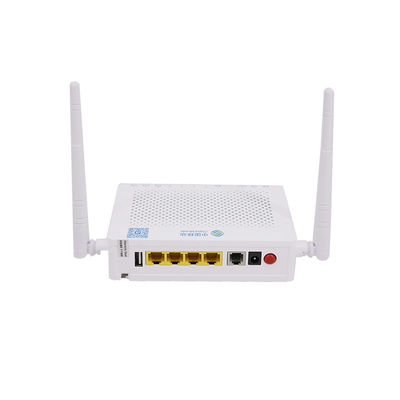

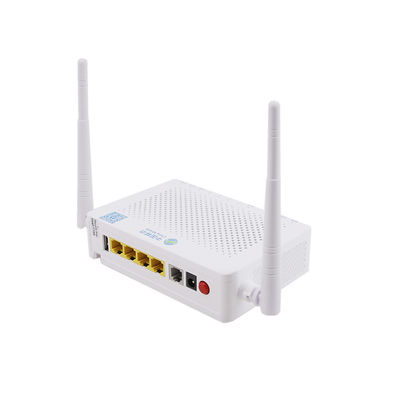

Details Images


ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT 0ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT 1ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT 2ZTE F663NV3A ONU With 2GE 2FE 2.4G WIFI English Firmware GPON ONT 3
