8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board

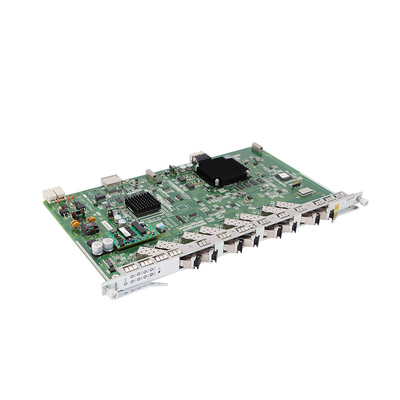

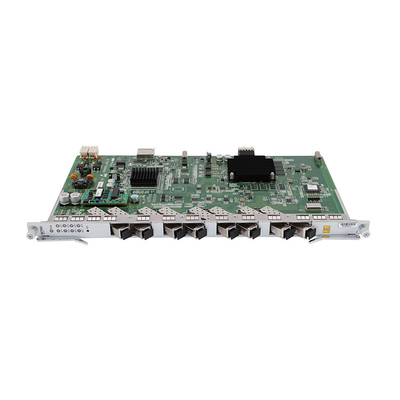

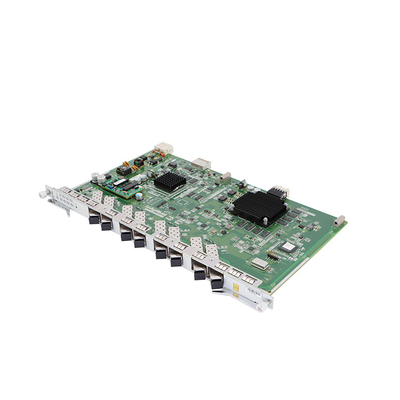

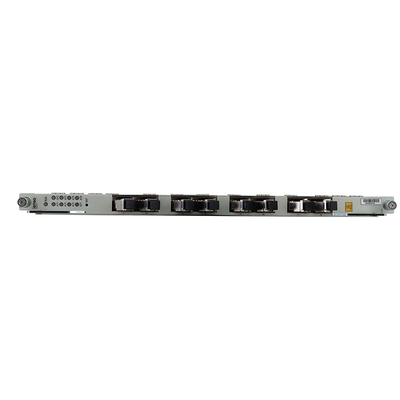

Large Image : 8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZTE
Model Number:	GTGO

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD 450-520per pieces
Packaging Details:	10/20 pcs 1 carton
Delivery Time:	5-12 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs one week

Contact Now

8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board

Description

Product Name:	ZTE Service Board	GPON Port:	8-GPON Port
Port Rate:	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s	Optical Fiber Type:	SC UPC
Encapsulation Type:	SFP	Operating Wavelength:	Tx: 1490 Nm, Rx: 1310 Nm
Dimension:	22.86 Mm X 237.00 Mm X 395.40 Mm
High Light:	8 Port Interface Board With C+ , ZTE GTGO8 Port Interface Board , C++ 8 Port Interface Board

8 Port interface board with C+ C++ SFP for OLT ZTE GTGO service Board

Product Features
ZTE GTGO Service Board targets a large-capacity xPON aggregation access platform for next-generation networks and provides access aggregation and management control for HSI, VoIP, TDM, IPTV, CATV, mobile 2G/3G, WiFi and other full-service services for next-generation networks. Carrier-class QoS and security reliability. It meets the requirements of “large capacity, high density, meeting the network evolution and deployment requirements of “large capacity, less office”, enhanced access capability, and meets the requirements of network flattening. High-density interface board provides special solutions for large split ratio and long-distance application scenarios.

Features

* ZTE GTGO Service Board flexible, with powerful 1588/1PPS+TOD

High-precision time/clock transmission capability adapts to TDM and mobile Backhaul bearers, complete VLAN/multicast/QoS service capability and excellent service performance, providing fine PON DBA dynamic bandwidth with The distribution mechanism and QoS mechanism are in line with the network construction requirements under the background of optical access and retreat.

* ZTE GTGO Service Board carrier-class system and business security and reliability

Supports Ethernet OAM and end-to-end management and operation, redundancy protection and hot-swap of key components, provides multiple network protection modes, supports optical link detection, and has strong security protection.

* ZTE GTGO energy saving and emission reduction, green products help operators build green communications meet the industry’s energy-saving emission reduction need to support a variety of power-saving models, products lead-free, friendly to the environment, in the entire process of product development, production and transportation green.
Product Paramenters

			Brand

			ZTE

			Model

			GTGO

			GPON Port

			8-GPON Port

			Type

			C+ Module: Single Fiber Bidirectional Optical Module, Class C+

			MAX Split ratio (Class B+)

			1:64

			MAX Split ratio (Class C+/Class C++)

			1:128

			Operating Wavelength

			Tx: 1490 nm, Rx: 1310 nm

			Encapsulation Type

			SFP

			Port Rate

			Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

			Minimum Output Optical Power

			C+ Module : 3.00 dBm

			Maximum Output Optical Power

			C+ Module : 7.00 dBm

			Maximum Receiver Sensitivity

			C+ Module : -32.00 dBm

			Optical Connector Type

			SC/PC

			Optical Fiber Type

			Single-mode

			Reach

			20.00 km

			Overload Optical Power

			C+ Module : -12.0 dBm

			Extinction Ratio

			8.2 dB

			Weight

			1kg

			Dimensions (W x D x H)

			22.86 mm x 237.00 mm x 395.40 mm

Details Images
