Product Details:
|
| Type: | ONU | Use: | FTTH |
|---|---|---|---|
| Network: | Wireless Lan, Wifi | Application: | FTTX Network |
| Product Name: | GPON ONU | Function: | 4GE+4ANTENNA+1POT+WIFI |
| Wavelength: | Tx 1310nm, Rx1490nm | LAN Interface: | 4x10/100/1000Mbps RJ45 Ports |
| Applications Distance: | 20km | Connector Type: | SC/APC |
| Chipset: | ZTE Chipset(ZAX279128) | ||
| High Light: | 4GE Gpon ONT Modem,Gpon ONU Dual Band,Dual Band Gpon ONT Modem |
||
【About Product】

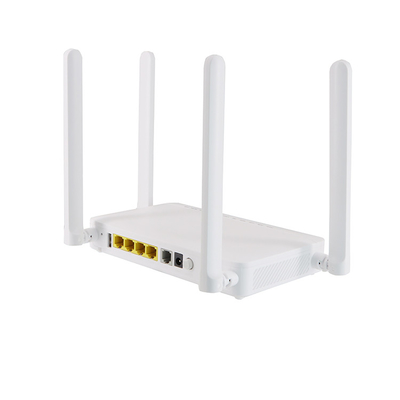

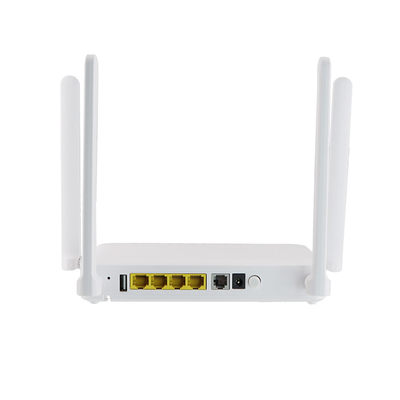

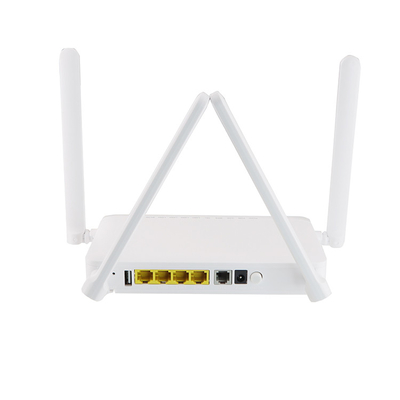

GP4485 terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11 AC/n WiFi, Layer 2/3, Support for USB2.0 extension devices and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as ITU-T G. 984. X and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom.
【Product Feature】
Support GPON Mode(ITG.G.984.X) Support ONU auto-discovery/Link detection/remote upgrade of software WAN connections support Route and Bridge mode Route mode supports PPPoE/DHCP/ static IP Support WIFI Interface and multiple SSID Support QoS and DBA Support port Isolation and port vlan configuration Support Firewall function and IGMP snooping multicast feature Support LAN IP and DHCP Server configuration; Support Port Forwarding and Loop-Detect Support TR069 remote configuration and maintenance Specialized design for system breakdown prevention to maintain stable syste
| Technical item | Specification |
| PON Interface | 1 GPON interface,Downstream rate 2.5Gbps,Upstream rate 1.25Gbps |
| LAN Interface | 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Chipsets | ZTE,ZAX279128 |
|
POTS Interface |
1* FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec |
| Operation Condition | Working temperature: -5-+55℃ working humidity:10-90%(non-condensation) |
| Storing Condition | Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation) |
| Capability | Support NAT/PPPOE/DHCP/Static IP/Bridge WAN |
| Wavelength | TX: 1310nm, RX: 1490nm |
| DC power | 12V DC input |
| Dimension | 200mm×140mm×40mm(L×W×H) |
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
