Product Details:
|
| Type: | ONU | Use: | FTTH |
|---|---|---|---|
| Network: | Wired LAN, None | Ports: | 1ge |
| Product Name: | GPON ONU | Down Link LAN Interface:: | Gpon |
| BOB: | Bosa On Board | Wavelength: | Tx 1310nm, Rx1490nm |
| Optical Receiver: | ≥-26dBm | Power Supply: | 12VDC |
| MOQ: | 1PCS | Dimension: | 12x11x8cm |
| High Light: | FTTH Fiber Optic ONU GPON,Single Port ONU GPON,1GE Dbc ONU |
||

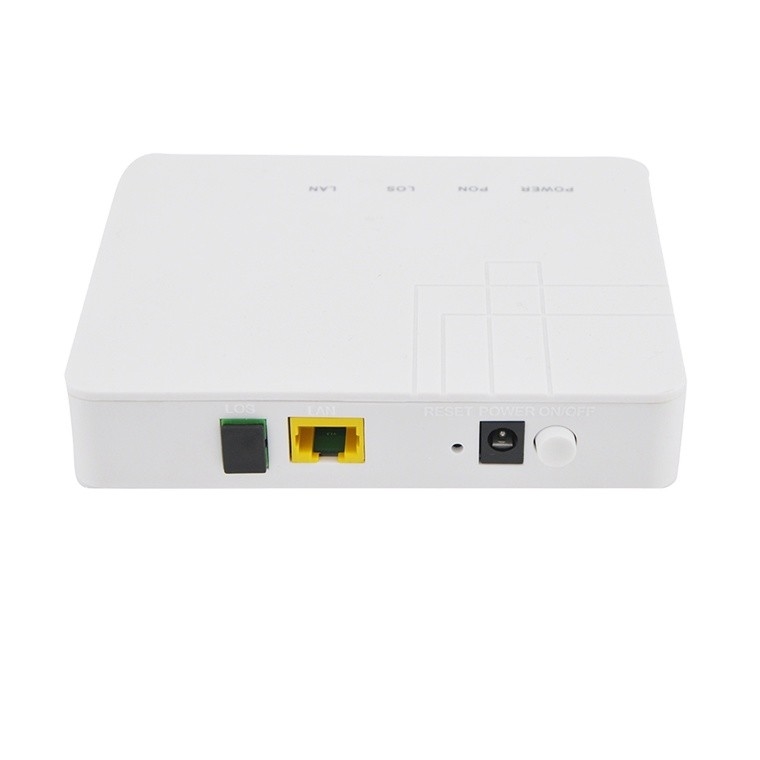

UT-King Single Port FTTH Fiber Optic ONU ONT 1GE ONU GPON ONU
【Product Feature】
1. Conform to IEEE802.3ah standard.
2. Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services.
3. Support frame filtering and suppression.
4. Support standard 802.1Q Vlan function, support VLAN conversion.
5. Support 4094 VLANs (802.1Q).
6. Support Dynamic Bandwidth Allocation (DBA) function.
7. Support QoS, including traffic flow classification, priority marking, queue anddispatch, traffic shaping and traffic control,
etc.
8. Single ONU supports up to 1 LLID.
9. Support IGMP Snooping.
10. Support Ethernet port ratelimit loop detection.
11. Support power failure alarm.
12. Support lightning protection for power supply and lightning protection for service port.
Port features:
1 PON port (1.25G)
1 10/100/1000M port
Physical features:
Power supply: 12VDC
Power consumption: 6W
Temperature:
Working temperature:0~55℃
Storage temperature: -30~60℃
Relative humidity: 10~90% (non-condensing)
|
Model |
Configuration |
|
|
|
|
Fiber interface |
|||||||||||
|
|
PON |
LAN |
Telephone |
Wifi |
CATV |
|
|||||||||||
|
GP4104 |
1 |
1GE |
/ |
internal |
/ |
SC APC |
|||||||||||
|
Remarks |
Power plug:EU,AU,AM,UK etc |
|
|
|
|
|
|||||||||||
|
|
Noted: with English manual |
|
|
|
|
|
|||||||||||
|
|
Optional: 1GE GPON ONU |
|
|
|
|
|
|||||||||||
|
Technical item |
Specification |
|
PON Interface |
1 GPON interface,Downstream rate 2.5Gbps,Upstream rate 1.25Gbps |
|
LAN Interface |
1 x 10/100/1000Mbps(GE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
Advanced Features |
Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 7 T-CONTs and 4095 GEM Ports Optical power |
|
VLAN |
802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect |
|
Operation Condition |
Working temperature: -5-+55℃ working humidity:10-90%(non-condensation) |
|
Storing Condition |
Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation) |
|
Management |
Managed by Web, OMCI or OAM and Telnet, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
|
Wavelength |
TX: 1310nm, RX: 1490nm |
|
DC power |
12V DC input |
|
Dimension |
120mm×110mm×18mm(L×W×H) |
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
