Product Details:
|
| Type: | FTTx Solutions, C++ Module: Single Fiber Bidirectional Optical Module, Class C++ | Use: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Product Name: | ZTE Service Board | Model: | GTGH |
| GPON Port: | 16-GPON Port | Operating Wavelength: | Tx: 1490 Nm, Rx: 1310 Nm |
| Port Rate: | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s | Encapsulation Type: | SFP |
| Optical Fiber Type: | SC/PC | Dimensions: | 22.86 Mm X 237.00 Mm X 395.40 Mm |
| Keywords: | 16 Port Gpon Board | ||
| High Light: | GPON OLT Interface Board,16 Port Gpon Board,GTGH Service Card Gpon Board |
||

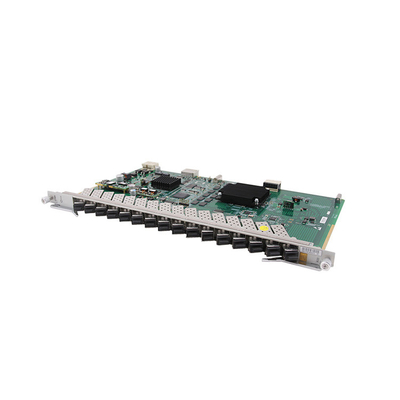

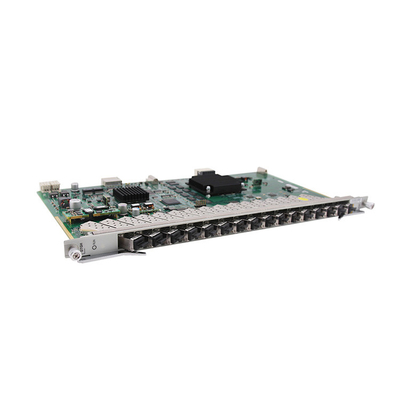

16-port GPON OLT interface board for ZTE C300 OLT GTGH Service Card
Product Description
ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board cost.
Specification
|
Brand |
ZTE |
|
|
Model |
GTGH |
|
|
GPON Port |
16-GPON Port |
|
|
Type |
C++ Module: Single Fiber Bidirectional Optical Module, Class C++ |
|
|
Operating Wavelength |
Tx: 1490 nm, Rx: 1310 nm |
|
|
Encapsulation Type |
SFP |
|
|
Port Rate |
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
|
|
Minimun Output Optical Power |
C++ Module : 4.50 dBm |
|
|
Maximum Output Optical Power |
C++ Module : 8.00 dBm |
|
|
Maximum Receiver Sensitivity |
C++ Module : -30 dBm @10E-10 |
|
|
|
-32 dBm @10E-10 |
|
|
Optical Connector Type |
SC/PC |
|
|
Optical Fiber Type |
Single-mode |
|
|
Reach |
20.00 km |
|
|
Overload Optical Power |
C++ Module : -12.0 dBm |
|
|
Extinction Ratio |
8.2 dB |
|
|
Weight |
1kg |
|
|
Dimensions (W x D x H) |
22.86 mm x 237.00 mm x 395.40 mm |
