Product Details:
|
Product Name: | XPON ONU | Application: | FTTH FTTX |
---|---|---|---|
Type: | ONU/ONT | Power Supply: | 12V 1A |
PON Port: | 1GE+WIFI | Name: | 1ge XPON ONU |
Chipset: | ZTE/RTL/MTK | Connector Type: | SC/UPC SC/APC |
Downlink: | 1*10/100/1000Mbps Auto Adaptive | Antenna Gain: | 5dBi |
High Light: | ftth 1A APC XPON ONU,ftth upc 1000Mbps XPON ONU,upc 1000Mbps APC epon wifi router |

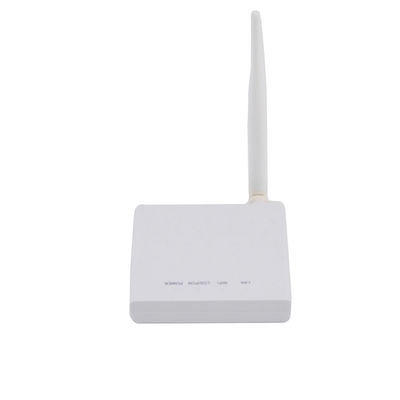

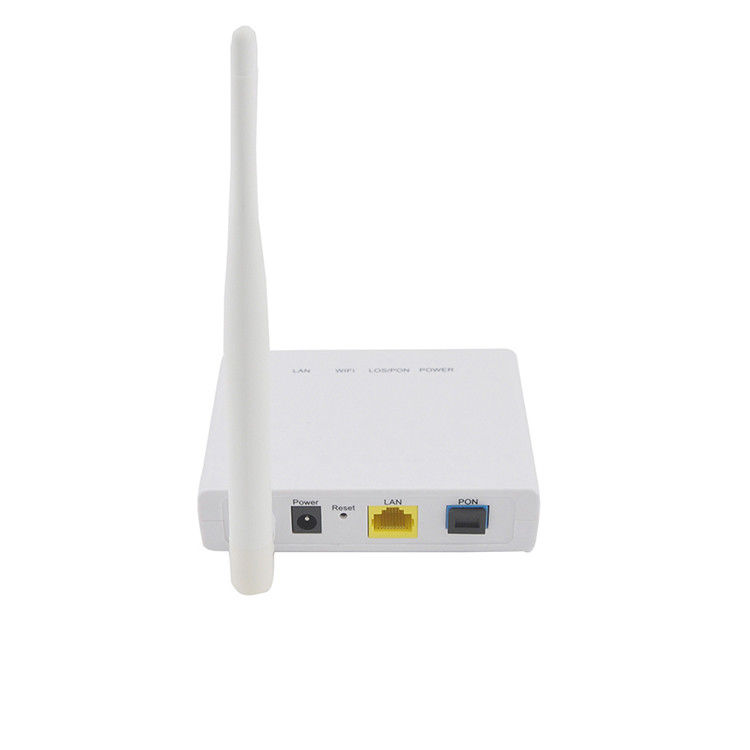

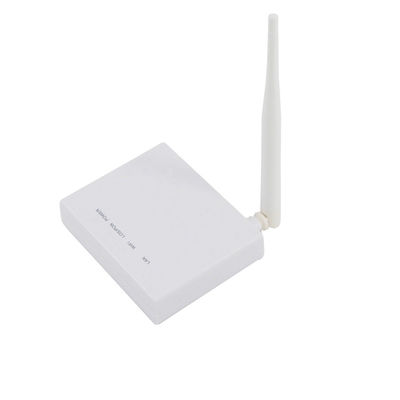

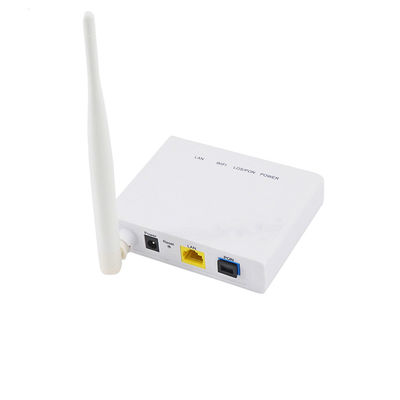

XPON ONU(UT-XP6104) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
UT-King 1ge xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT
Item
|
Parameter
|
PON Interface
|
1 EPON optical interface Downstream Data Rate:1.244Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:64 |
User Ethernet Interface
|
1*10/100/1000M auto-negotiation
Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
Power Interface
|
12V DC Power supply
|
PON Optical Parameter
|
Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0~5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm Connector Type: SC Optical Fiber: 9/125μm single-mode fiber |
Data Transmission Parameter
|
PON Throughput: Downstream 1.244Gbit/s s; Upstream 1.244Gbit/s
Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms |
Business Capability
|
Layer 3 wire speed switching
Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support loop detection |
Network Management
|
Support IEEE802.3 QAM, ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnet Local management |
Management Function
|
Status monitor, Configuration management, Alarm management,
Log management |
Shell
|
Plastic casing
|
Power
|
<4W, 12V/0.5A power supply adapter
|
Physical Specifications
|
Item Dimension:135mm(L) x90mm(W) x 30mm (H)
Item weight:0.2kg |
Environmental Specifications
|
Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing) |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
