3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal

3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal
3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal 3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal 3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal 3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal

Large Image :  3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: iso
Model Number: UT-XP6412
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: 15-18 usd/pcs
Packaging Details: 1pcs/1box 20pcs/carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 1000pcs/week

3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal

Description
Product Name: XPON ONT Brand: UT-King
Function: 1ge+3fe+wifi Wavelength: Tx 1310nm, Rx1490nm
Name: XPON ONU MOQ: 1 PCS
OEM: YES Applications Distance: 20km
Chipset: Realtek External Power Supply: DC 12V/1A
Dimension: 200mm*140mm*40mm Weight: 0.7kg/pcs
Packing: 20pcs/carton Gross Weight: 14kg
High Light:

ftth upc 3FE XPON ONU

,

ftth Wifi 1310nm XPON ONU

,

upc Wifi 1310nm gpon onu router

Ftth Equipment 1GE 3FE Wifi Optical Network Terminal English Version Epon GPON XPON ONU XP6412




Description

XPON ONU(UT-XP6421) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, XPON  ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.

Features

  • Support EPON/GPON mode and switch mode automatically
  • Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
  • Support IPv4and IPv6 Dual mode
  • Support 4G WIFIand 2*2 MIMO
  • Support LAN IP and DHCP Server configuration
  • Support Port Mappingand Loop-Detect




Specification

Technical item
Details


PON Interface
1 GPON BOB (Class B+/Class C+)
Receiving sensitivity: ≤-27dBm/≤-29dBm
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
Transmission distance: 20km
Wavelength
TX: 1310nm, RX: 1490nm
Optical Interface
SC/UPC Connector
Design Scheme
RTL
Chip Spec
CPU 950MHz,DDR2 128MB
Flash
SPI Nor Flash 16MB
LAN Interface
1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector






Wireless
Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED
9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4
Push-Button
3,For Function of Reset,WLAN,WPS
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply
DC 12V/1A
Power Consumption
≤6W
Dimension
200mm×140mm×40mm(L×W×H)
Net Weight
0.6kg

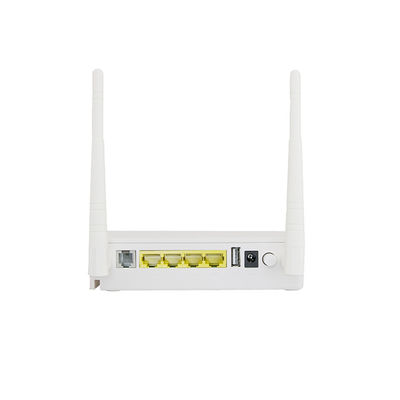

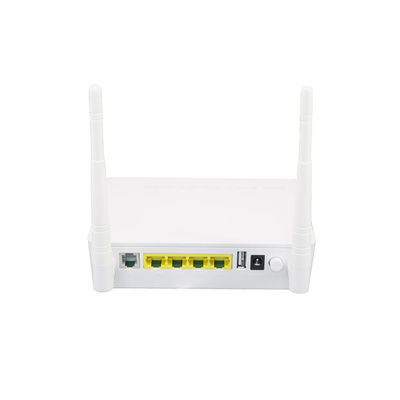

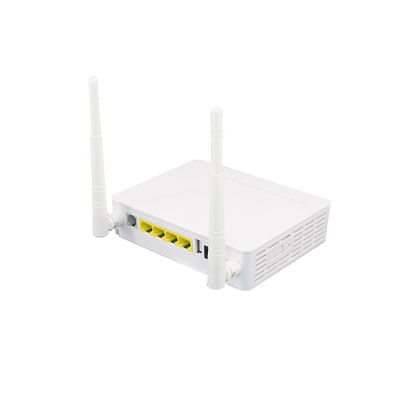

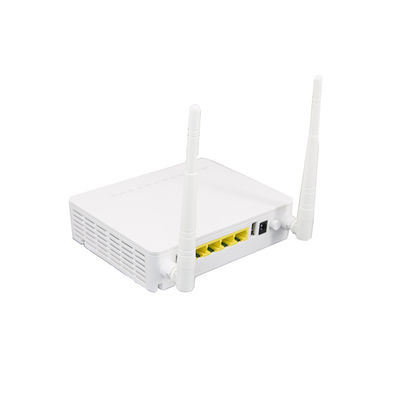

Detailed Images

3FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal 03FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal 13FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal 23FE XPON ONU Gpon Onu Router Wifi 1310nm English Version Optical Network Terminal 3

FAQ


Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.


Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.


Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
