1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge

1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge
1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge 1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge 1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge 1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge

Large Image :  1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: XP6201
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge

Description
Application: FTTH Color: White
Function: 1GE+1FE+1POTS Port Product Name: Gpon ONU/ONT
Power Supply: 12V 0.5A Connector Type: SC/UPC
Connector: RJ45 PON Port: SC
Wavelength: 1310/1490nm Size: 82 Mm X 90 Mm X 27 Mm
Weight: About 0.5 Kg OEM: Yes
High Light:

12v dc ont optical modem

,

12v UPC SC ont optical modem

,

dc UPC SC ftth gpon onu

Shenzhen Factory ONU UT-King FTTH XPON Terminal 1GE 1FE 1POTS Fttx Router Modem XPON ONU





Description

UT-King's XP6201 FTTH is an optical network terminal (ONT) with a high-end home Bridge in FTTH solution (2LAN+1POT)

This model features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, XP6201 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.we Provide English firmware and EU, US, UK, AU Power adapter for your choice.





Features

  • 1GE+1FE G/EPON ONU is designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators.
  • It meets telecom operators FTTO (office), FTTD (Desk), FTTH (Home) broadband speed, SOHO broadband access, video surveillance and other requirements.
  • Advanced Dynamic Bandwidth Allocation (DBA)
  • The WAN port supports bridge or router mode.
  • Advanced L2 features QinQ VLAN & QoS support
  • Support NAT, Firewall function.
  • Support Console/ Telnet/ NMS management interface for ease of operation and maintenance
  • Support 2K MAC address table.
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.





Specification

Rate Upsteam: 1.244Gbps Downsteam: 2.488Gbps
Interface standard ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
Launch power Min: 0dBm Max: +5dBm
Sensitivity -27dBm
Input Power Overload -8dBm
Service Interface
PON Interface XPON ONU
Data Interface 1 GE + 1 FE+1POTS
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Power Supply and Consumption
Power Adaptor Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A
Consumption ≤5W
Physical specifications
Dimensions 82mm×90mm×27mm(L×W×H)
Weight 0.5kg

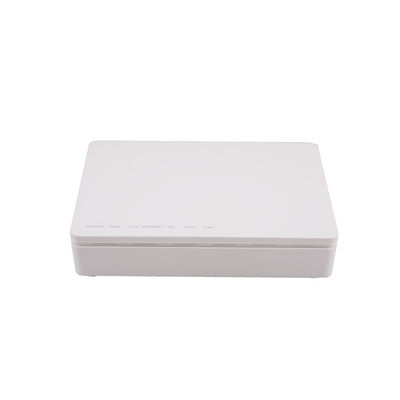

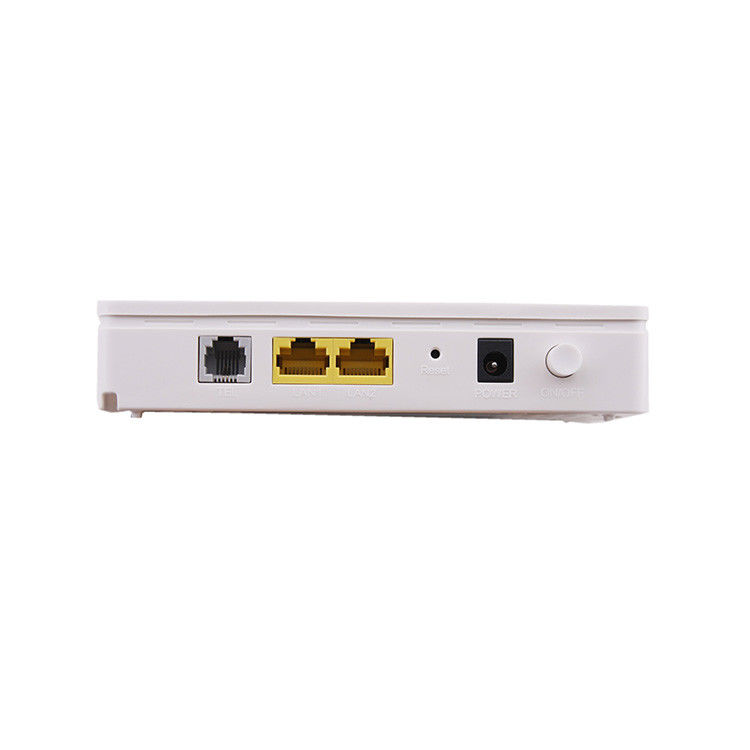

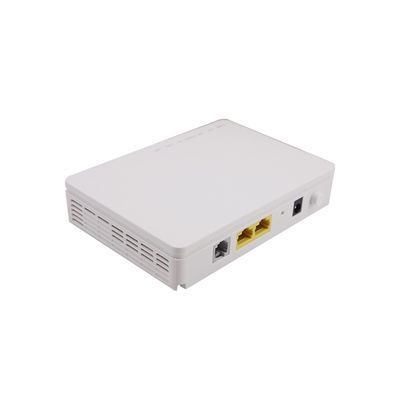

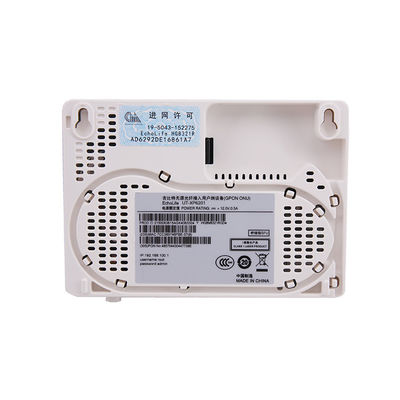

Detailed Images

1POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge 01POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge 11POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge 21POTS Ont Optical Modem Ftth Gpon Onu UPC SC High End Home Bridge 3

FAQ



Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
