LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure

LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure
LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure

Large Image :  LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: LC4501
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure

Description
Insertion Loss: UPC 0.25db APC 0.3db Application: FTTH FTTB FTTX Network
Connector Type: LC/APC LC/UPC Return Loss: ≤55db

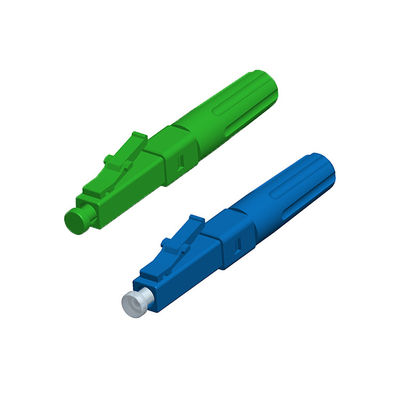

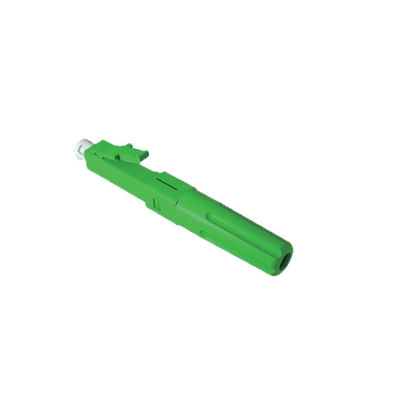

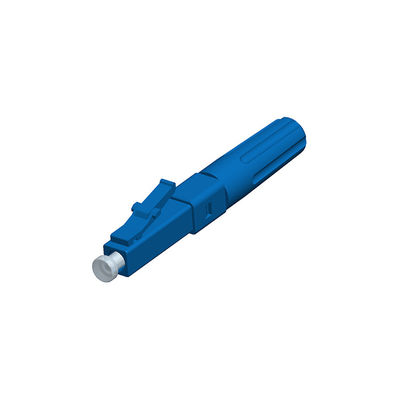

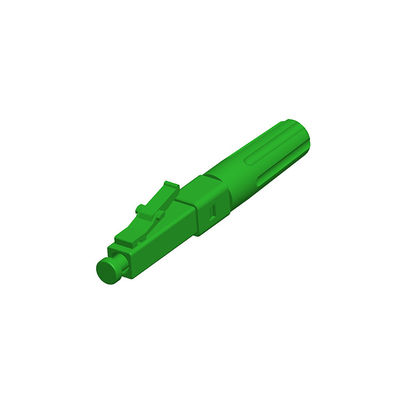

Color: Green/Blue Product Name: LC APC Fast Connector
Fiber Type: SM Operating Temperature: -40 To +85 Degree
Durability: ≤ 0.25db Typical Change Certification: ISO9001,RoHS,CE,SGS
Name: Fast Connector Connector: Fast Connector LC
Fiber Cable Type: 3x2mm Flat Cable
High Light:

LC 4501 Fiber Optic Fast Connector

,

APC 0.3db Fiber Optic Fast Connector

,

APC 0.3db fc fiber connector

Fiber Optic Field Assembly Connector LC Fiber Optic Connector

Description

UT-King Quick LC Fiber Optic Connectors are factory pre-polished, field-installable connectors for fast, reliable termination of UT-King multimode and singlemode fiber optic cable. The precision design and pre-cleaved fiber stub with index-matching gel ensure optimum fiber alignment and a reliable low-loss connection. Each connector includes strain relief boots for terminating UT-King Fiber Optic Cable as well as other standard fiber optic cable sizes that may exist in a fiber plant. A pre-installed wedge clip features a visual indicator of a successful termination when used with a VFL - Visual Fault Locator. Quick LC Connectors are available as multimode and singlemode versions.



Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry

Features

1. Push-tight structure of fiber fastening, high precision of fiber connection;

2. Integral structure, simple structure, high stability and reliability, low cost;

3. Small size, suitable for narrow space environment;

4. Tail is screw type, excellent tensile strength,> 40N / 2min;

5. Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.

Specification

Item Unit UPC APC
Insertion Loss dB ≤0.25 ≤0.3
Return Loss dB ≥50 ≥55
Tensile strength N/2min >40
Work temperature -40~+85
Repeatability dB ≤0.2
Repeated assembly times ≥10
Mate and demate times ≥500
Cable type mm 2.0×3.0 drop cable
Product dimension mm 50×9.5×9.5



LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure 0LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure 1LC 4501 Fc Fiber Optic Fast Connector APC 0.3db Push Tight Structure 2
