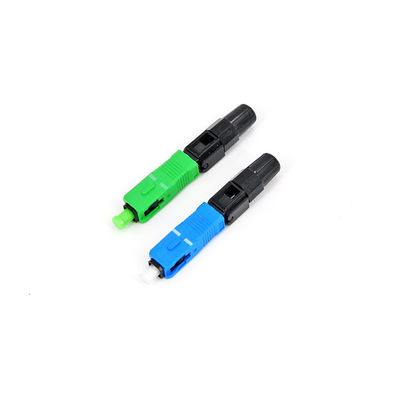

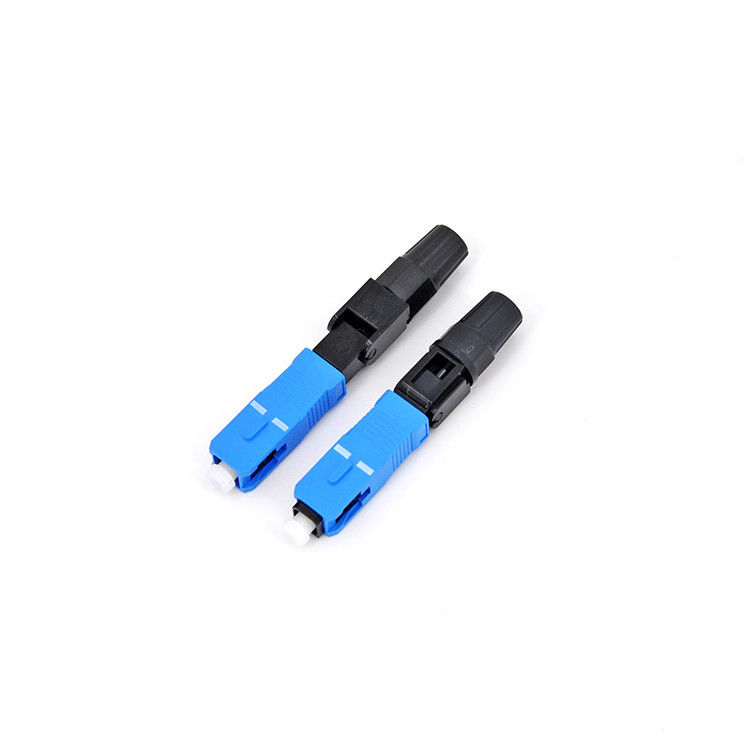

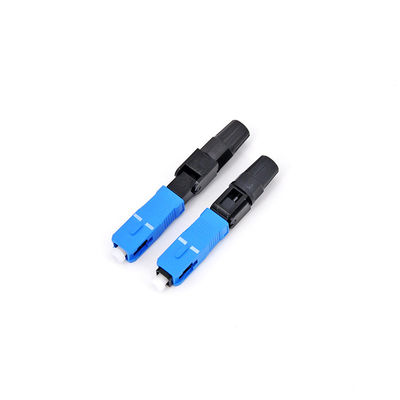

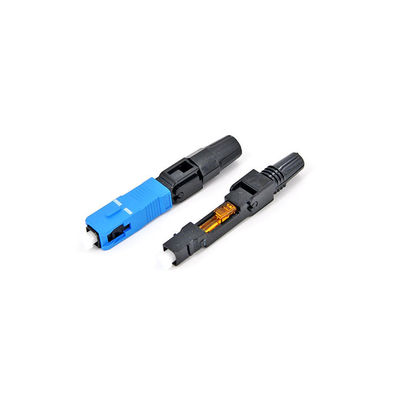

CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N

CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N
CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N

Large Image :  CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: SC5501
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N

Description
Insertion Loss: ≤0.2db Application: FTTH FTTB FTTX Network
Connector Type: SC Return Loss: Upc≤45db,Apc≤55db
Color: Green/Blue Product Name: SC Fast Connector
Fiber Type: SM Operating Temperature: -40 To +85 Degree
Durability: ≤ 0.25db Typical Change Certification: ISO9001,RoHS,CE,SGS
Name: Fast Connector Connector: Fast Connector SC
Fiber Cable Type: 3x2mm Flat Cable Length: 55mm
High Light:

CATV SC 5501 fiber optic adapter

,

20N fiber optic adapter

,

CATV SC 5501 drop cable connector

Fiber Optic Fast Connector SC Connectors For Drop Cable Quick Connector Adapter For CATV Network

Description

UT-King Fiber Optic fast Connector field-installable connectors are make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed

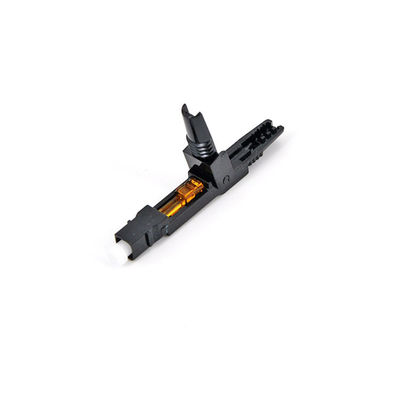

UT-King's fast Connector connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.



Applications

  • Compatible with standard SC connectors;
  • Field installable, cost effective, user friendly;
  • PC, APC polishing optional;
  • No electricity required;
  • FTTH cable, fiber optic cable optional;
  • Reliable durable and superior optical performance
  • Low insertion loss and high return loss
  • Stable capability and high reliability
  • Excellent mechanical capability

Specification

er Optic Cable 2.0mmx3.0mm
Plug Type SC/PC
Fiber diameter 0.125mm
Fiber Mode Single mode
Insertion Loss <0.5dB (typical 0.2dB)
Return Loss <50dB
Tensile strength <20N
Temperature -40℃—+70℃
Temperature cycling IL<0.3dB,RL<5dB

CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N 0CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N 1CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N 2CATV SC 5501 Fiber Optic Adapter Drop Cable Connector 20N 3
