Product Details:
|
| Insertion Loss: | ≤0.3db Average | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC/UPC SC/APC | Return Loss: | Upc≤45db,Apc≤55db |
| Color: | Green/Blue | Product Name: | SC Fast Connector |
| Fiber Type: | SM/MM | Connector Structure: | Pre -embeded Type |
| Name: | Fast Connector | Connector: | Fast Connector SC |
| Fiber Cable Type: | 3x2mm Flat Cable | Length: | 50mm |
| High Light: | Ripdo Fiber Optic Fast Connector,SC 5002 Fiber Optic Fast Connector,Ripdo UPC fast sc connector |
||

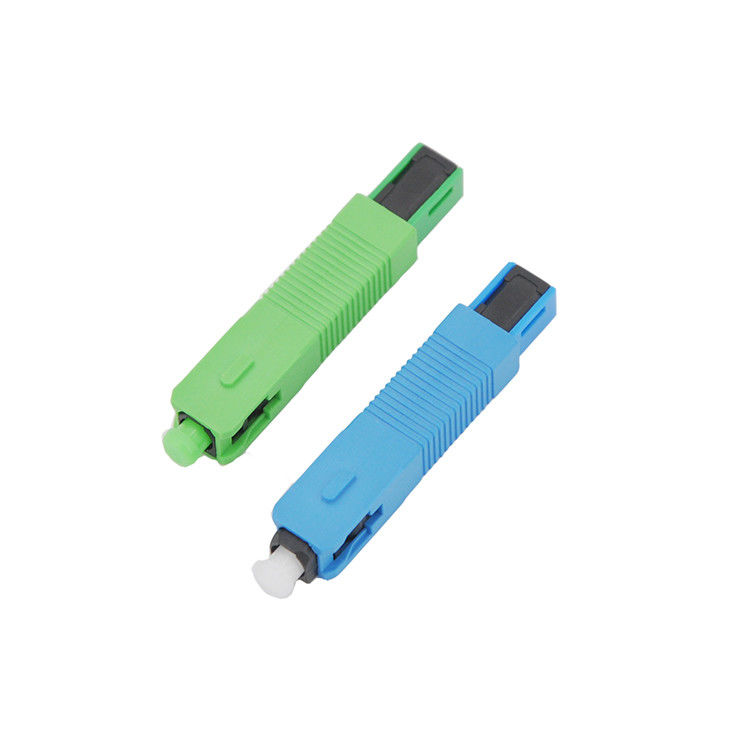

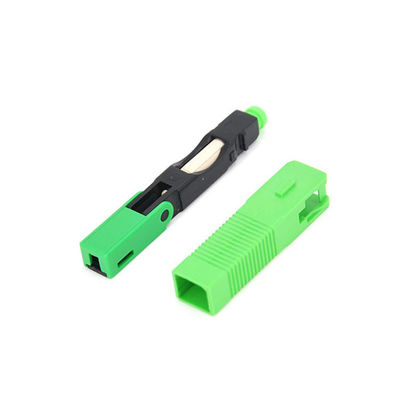

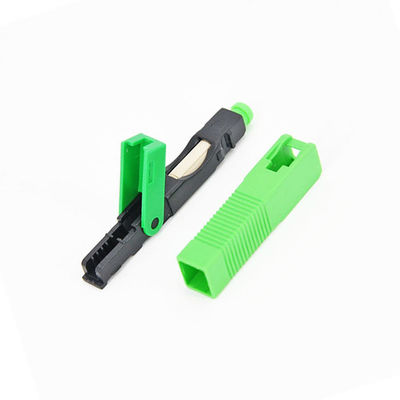

UT-King Fiber Optic fast Connector s a field assembly fiber connector with exquisite volume, excellent optical and mechanical performance developed by Dimension Technology. With unique fiber alignment and matching liquid structure, UT-King is the best choice for fast field installment, easy to use and no need other tools to help assemble.
FAST (Field Assembly with Simple Technique) Connectors allow you to terminate a fiber in less than a minute. The FAST Connector is a pre-polished connector which uses mechanical clamping and aligning of a cleaved fiber end which is inserted into the connector body.
Applications
| Model No. | UT-SC5002 |
| Connector Type | UPC/APC |
| Length | 50mm |
| Applicable for | Drop cable.Indoor cable |
| Fiber mode | Single mode |
| Operation time | About 50s(no fiber cut) |
| Insertion Loss | ≤0.4dB |
| Insertion Loss Typical value | 0.2dB |
| Return Loss | ≥50dB UPC ≥55dB APC |
| Fastening strength of naked fiber | ≥5N |
| Tensile strength | ≥40N |
| Reusable | ≥10 times |
| Operating Temperature | -40～+85℃ |
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
