38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

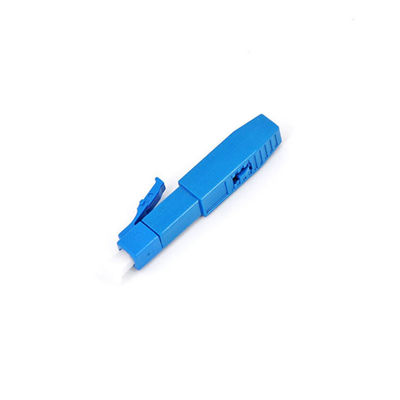

38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam

38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam
38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam 38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam 38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam 38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam

Large Image :  38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: LC3801
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam

Description
Insertion Loss: UPC 0.25db APC 0.3db Application: FTTH FTTB FTTX Network
Connector Type: LC/APC LC/UPC Return Loss: ≤55db
Color: Green/Blue Product Name: LC Fast Connector
Fiber Type: SM Operating Temperature: -40 To +85 Degree
Durability: ≤ 0.25db Typical Change Certification: ISO9001,RoHS,CE,SGS
Name: Fast Connector Connector: Fast Connector LC
Fiber Cable Type: 0.9mm
High Light:

LC 3801 single mode fiber connectors

,

APC single mode fiber connectors

,

LC 3801 fiber optic lc connector

Fiber Optic LC APC Fast Connector LC Fiber Optic Connector 38mm 0.9mm Quick Connectors LC Fast Splice Unicam Connectors

Description

UT-King Quick LC Fiber Optic Connectors are factory pre-polished, field-installable connectors for fast, reliable termination of UT-King multimode and singlemode fiber optic cable. The precision design and pre-cleaved fiber stub with index-matching gel ensure optimum fiber alignment and a reliable low-loss connection. Each connector includes strain relief boots for terminating UT-King Fiber Optic Cable as well as other standard fiber optic cable sizes that may exist in a fiber plant. A pre-installed wedge clip features a visual indicator of a successful termination when used with a VFL - Visual Fault Locator. Quick LC Connectors are available as multimode and singlemode versions.



Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry

Features

  • Optical fiber communication room
  • Coss connecting cabinet
  • CATV
  • NET EPON
  • FTTB/FTTH
  • Networkcabinet

Specification

Item Unit UPC APC
Insertion Loss dB ≤0.25 ≤0.3
Return Loss dB ≥50 ≥55
Tensile strength N/2min >40
Work temperature -40~+85
Repeatability dB ≤0.2
Repeated assembly times ≥10
Mate and demate times ≥500
Cable type mm 2.0×3.0 drop cable
Product dimension mm 50×9.5×9.5

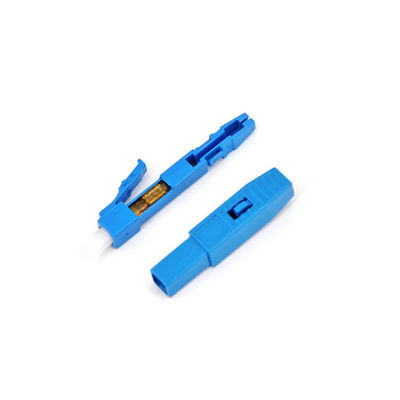

Detailed Images

38mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam 038mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam 138mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam 238mm APC Single Mode Fiber Connectors Optic LC 3801 Splice Unicam 3



FAQ



Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
