SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable

SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable
SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable

Large Image :  SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: SC6004
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable

Description
Insertion Loss: ≤0.3db Average Application: FTTH FTTB FTTX Network
Connector Type: SC/UPC SC/APC Return Loss: Upc≤45db,Apc≤55db
Color: Green/Blue Product Name: SC Fast Connector
Fiber Type: SM/MM Connector Structure: Pre -embeded Type
Name: Fast Connector Connector: Fast Connector SC
Fiber Cable Type: 3x2mm Flat Cable Length: 60mm
High Light:

SC FTTH Fiber Optic Fast Connector

,

3x2mm Fiber Optic Fast Connector

,

3x2mm ftth fast connector

FTTH Fiber Optic Fast Connector Quick Connector Fiber Optic Fast Connectors SC/Upc SC/Apc





Description

UT-King's SC Fast Connector is widely used in FTTH (Fiber to The Home) access optical Networks. Designed for simple and fast field termination of single fibers without polishing, adhesives or curing process.

SC Fast Connector uses Sumitomo’s guide rail technology to help position the fiber into the connector, achieving a positive connection in the mechanical splice and low insertion loss termination.

For Singlemode Fiber, Multimode Fiber, as well as choose to 900 microns, 3.0mm and the introduction of cable 8 font type.

Fasten design makes installation easy. For connecting to other devices and fiber optic panels.

No electrical power supply is needed to assemble the Fast SC Connector.



Features



  • FTTH project usable
  • Field installable
  • Insert loss less than 0.3dB
  • Metal V-shape cavity work well in high and low temperature
  • Installation less than 1 minutes
  • Reliable and superior optical performance





Applications

  • Local Area Network
  • Data communication network
  • Telecommunication optical transmission network
  • Optical access network (OAN)
  • Active device termination
  • CATV
  • Fiber optics data transmission (FODT)



Specification

Model No. UT-SC6004
Connector Type UPC/APC
Length 60mm
Applicable for Drop cable.Indoor cable
Fiber mode Single mode
Operation time About 50s(no fiber cut)
Insertion Loss ≤0.4dB
Insertion Loss Typical value 0.2dB
Return Loss ≥50dB UPC ≥55dB APC
Fastening strength of naked fiber ≥5N
Tensile strength ≥40N
Reusable ≥10 times
Operating Temperature -40~+85℃




Detailed Images

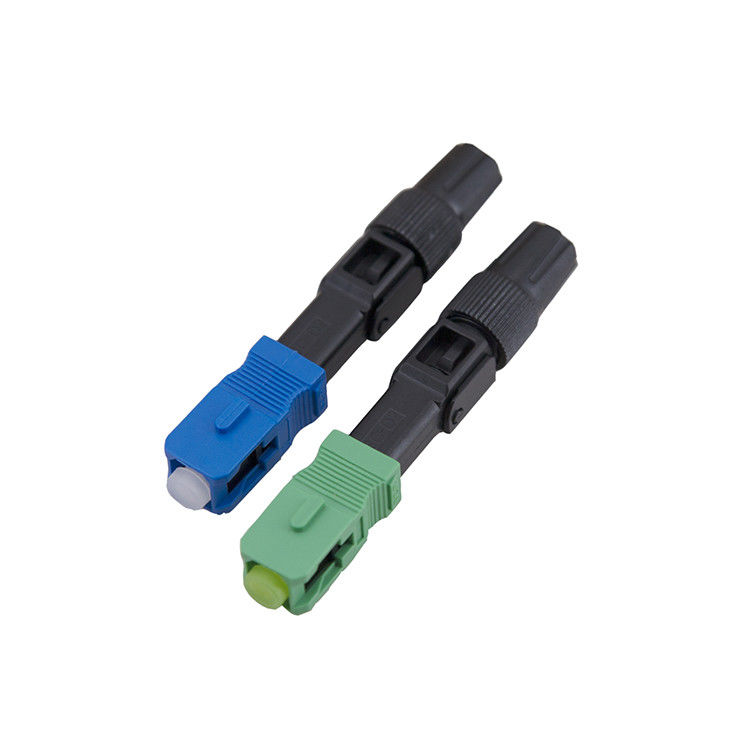

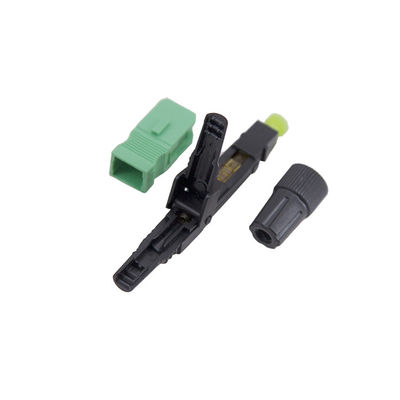

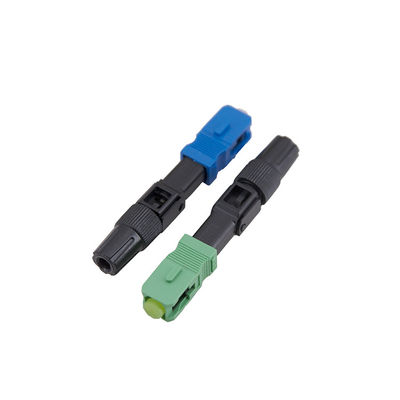

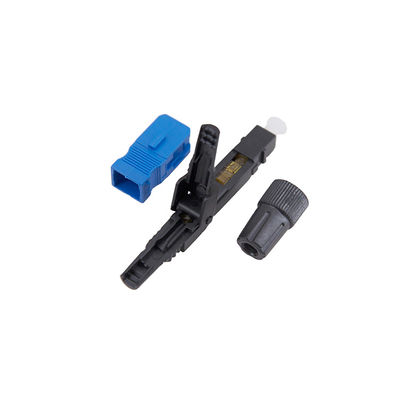

SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable 0SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable 1SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable 2SC FTTH Fiber Optic Fast Connector Apc 3x2mm Drop Cable 3





FAQ



Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
